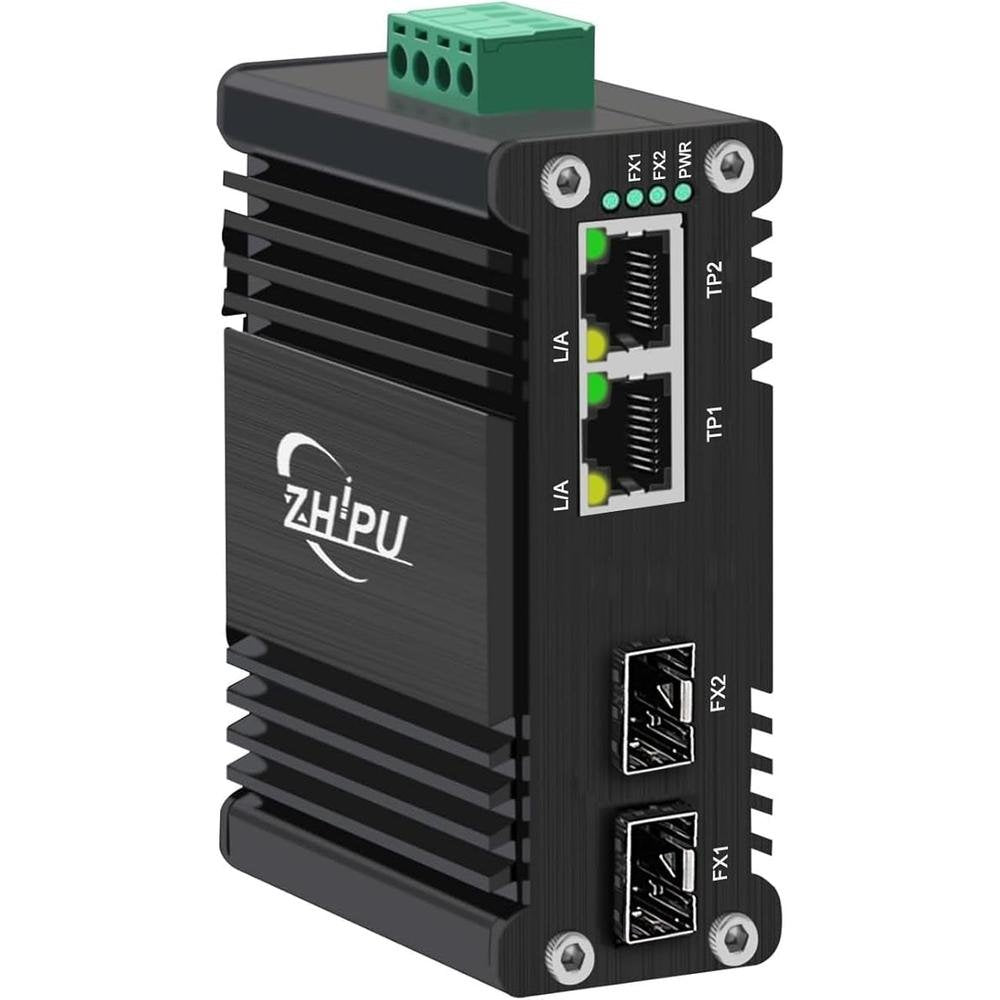

Mini Industrial 2 Port Ethernet Switch with 2 SFP Slot, Hardened Gigabit Networking Switch Supporting Din-Rail, 12~48VDC Power Input, -40 F to 176 F, IP40 Rated Thicked Housing

Product Description

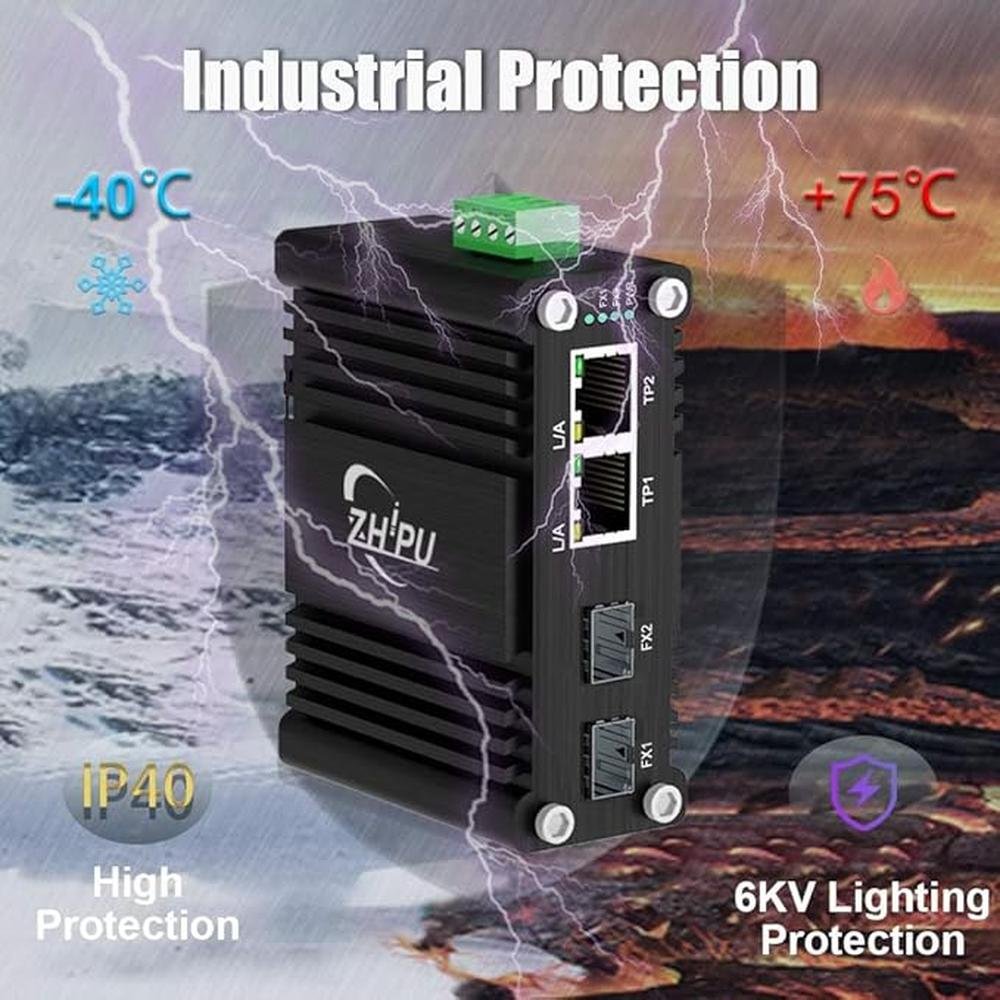

Experience reliable and efficient networking with our Mini Industrial 2 Port Ethernet Switch, designed to withstand harsh environments. This hardened gigabit networking switch features 2 SFP slots, supporting a wide range of fiber optic modules for flexible connectivity. With a compact design and Din-Rail mounting, it's perfect for industrial applications. The switch operates on a 12~48VDC power input, ensuring consistent performance in various settings. Its rugged, IP40 rated thickened housing can withstand extreme temperatures from -40°F to 176°F, making it ideal for use in demanding industrial environments. Key features include:

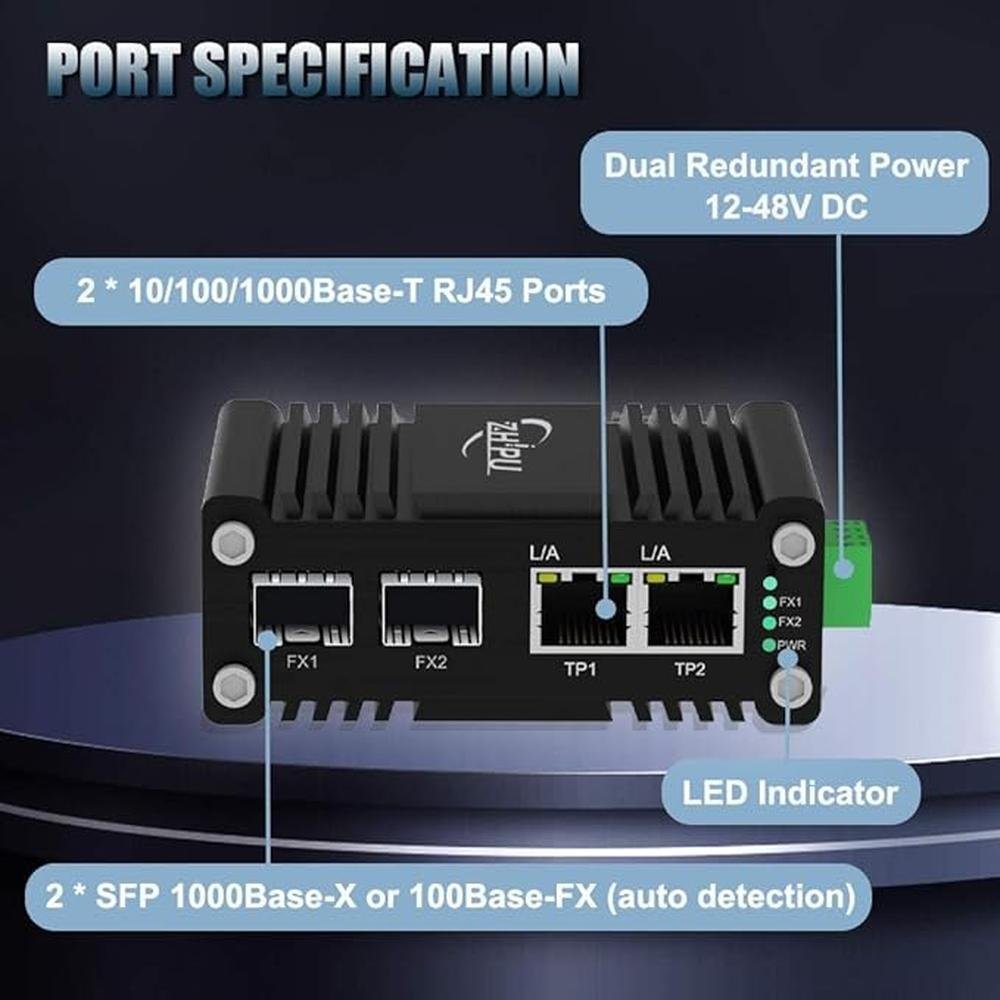

The Industrial Gigabit 2-Port Switch has 2 Gigabit SFP ports and 2 RJ45 ports. Each port supports gigabit transfer speeds, ensuring lightning-fast data transmission. With the industrial IP40 Al case, it can thrive in extreme environments between -40F and 176F, making it ideal for outdoor installations or industrial applications. Features include 2-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function, 2 SFP ports with 100Base-FX or 1000Base-X dual mode, and support for Link Fault Pass Through, Full/Half-duplex, and Auto-negotiation.

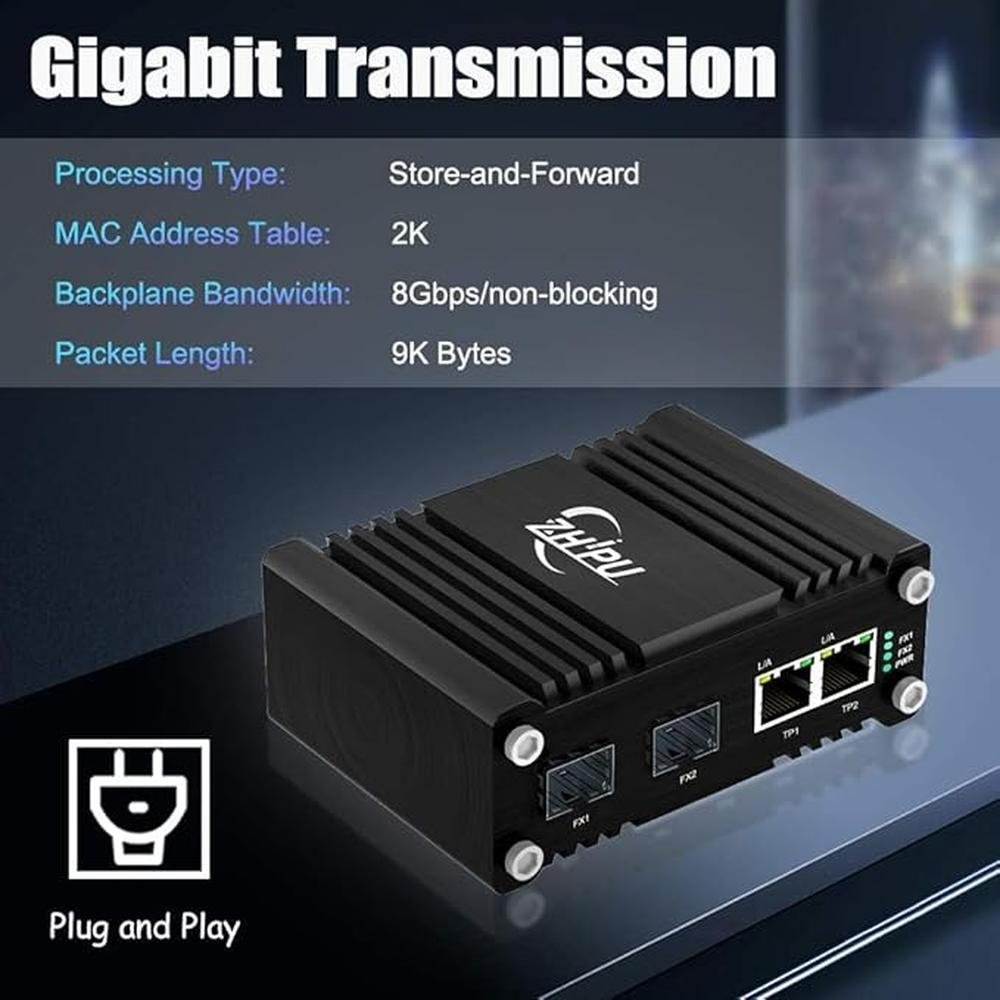

Additional specifications include 9K Bytes Jumbo Frame, 12-48VDC redundant power supply, and support for DIN-Rail installation. The switch is environmentally hardened with an operating temperature range of -40C to 75C (-40F to 167F). It also features a packet buffer memory of 1 Mbit, a packet length of 9K bytes, and a MAC address table of 2K. The forward and filtering rate is 14,880pps (10Mbps), 148,800pps (100Mbps), and 1,488,000pps (1000Mbps).

The switch has a power consumption of 5W Max and a power PIN assignment of 4,5(+)/7,8(-) (Alternative B Mode). It is certified with CE and FCC and has mounting options for DIN-Rail. The operating temperature range is -40C to 75C (-40F to 167F), and the storage temperature range is -40C to 85C (-40F to 185F). The dimensions are 5.45 x 4.17 x 1.61 inches, and the weight is 0.25kg.
