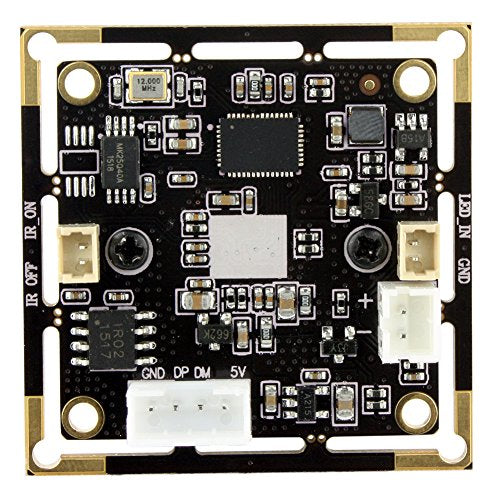

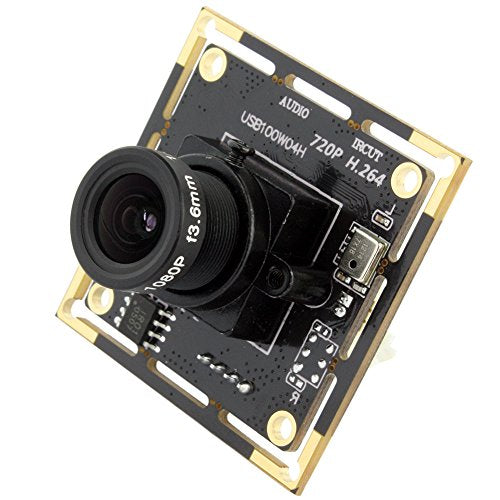

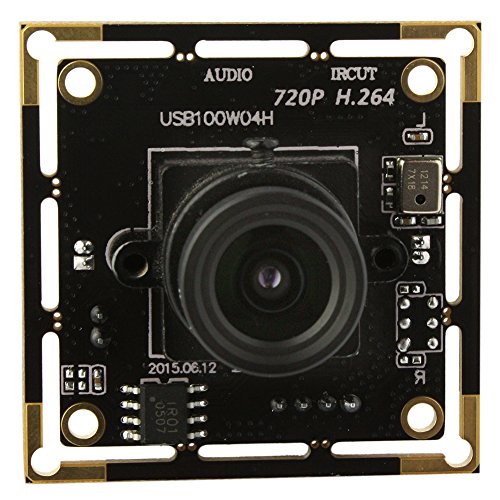

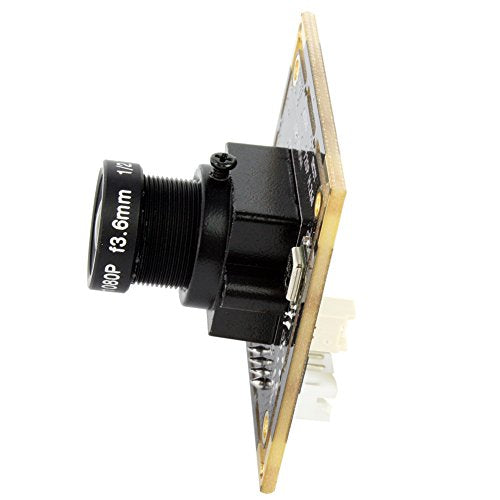

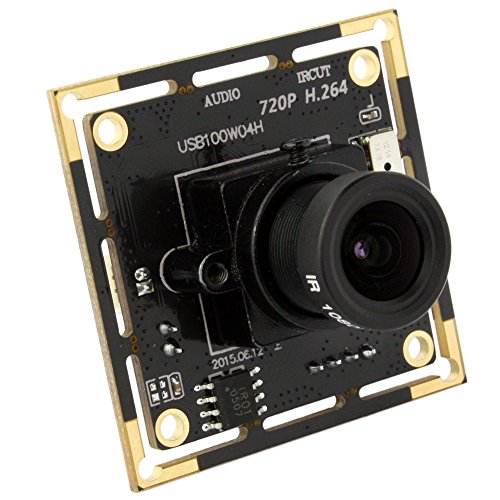

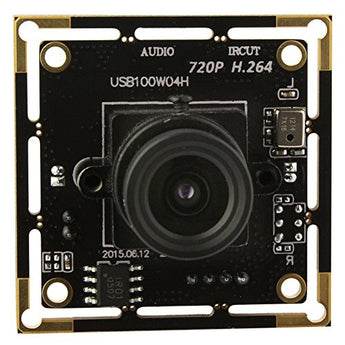

Camera Video | ELP 720p HD USB Camera Module with Microphone H.264 Mini UVC USB2.0 Audio Video Webcam Board | Premium Video Surveillance Solution
(-34%)
Save 35%Deliverable in 10+Business Days
Key Points
- Features a 720P sensor for high-quality image and low power, with active pixel technology for sharp image and accurate color
- Delivers high frame rates, up to 30 fps in 720P, with a high-quality lens for true-to-life, undistorted color images
- Supports various operating systems, including WinXP, Vista, WIN7, WIN8, Linux with UVC, Mac-OS X 10.4.8 or later, Wince with UVC, and Android 4.0 or above
- Has a super small outline and thin profile for embedded applications, with bus-powered and low power consumption for portable applications
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description
Experience high-quality video recording with the ELP 720p HD USB Camera Module, a top-notch camera video solution designed for seamless integration with various devices, including Android, Linux, Windows, Mac, and single-board computers like Raspberry Pi and Jetson Nano. As a top camera video best buy, this module boasts a compact design, featuring a built-in microphone and utilizing H.264 compression for efficient video transmission. Ideal for video surveillance applications, this UVC USB2.0 camera video recorder ensures crisp and clear visuals, making it perfect for monitoring purposes. Whether you're looking for a reliable camera video monitor, this module is an excellent choice. The 720P HD H.264 USB2.0 USB Camera module is ideal for house security and also many applications like security systems, portable video system, video phones, industrial machine monitoring, and toys. It adopts high-quality image sensors made by OV, one of the world leaders in this field of electronics. It uses H.264 compression technology to reach high frame rate video output, and also YUY2 and MJPEG optional. Application areas include car and ship control, electrical equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, Video Conferencing, car tracking system, etc. The module features a 720P sensor for high-quality image and low power, active pixel technology for sharp image and accurate color, superior low light performance, and a super small outline and thin profile for embedded applications. It delivers high frame rates, up to 30 fps in 720P, and has a high-quality lens for true-to-life, undistorted color images. The module is bus-powered with low power consumption, making it ideal for portable applications, and supports various operating systems, including WinXP, Vista, WIN7, WIN8, Linux with UVC, Mac-OS X 10.4.8 or later, Wince with UVC, and Android 4.0 or above.
The ELP 720p HD USB Camera Module has a sensor of OV9712, with picture formats of H.264, YUY2, and MJPEG optional, and a USB protocol of USB2.0 HSFS. It also features auto-exposure AEC support and auto-white balance AEB support. The module's performance includes 1280 (H) x 720 (V) H.264 30fps, MJPEG 30fps, YUY2 10fps, 800 (H) x 600 (V) H.264 30fps, MJPEG 30fps, YUY2 20fps, and 640 (H) x 480 (V) H.264 30fps, MJPEG 30fps, YUY2 30fps. Adjustable parameters include brightness, contrast, color saturation, definition, gamma, and WB. Night vision is optional, and the module can support IR Cut and IR board for IR night vision.
Specifications & Details
| SKU | BMB00VDSBH9G |
|---|---|
| Product Dimensions | 1.49 x 1.49 x 0.91 inches |
| Item Weight | 0.010 kgs |
| Item model number | ELP-USB100W04H-L36 |
| Is Discontinued By Manufacturer | No |
| Manufacturer | Ailipu Technology Co., Ltd |
