ALPCAM 2MP Global Shutter USB Camera Module | 1200P 90fps High-Speed Webcam | Wide-Angle No-Distortion Lens
(-21%)
Save 22%Brand: ALPCAM
Deliverable in 10+Business Days
Key Points
- High-speed imaging with 1200P resolution and 90fps frame rate
- Wide-angle no-distortion lens with AR0234 UVC Lightburn camera

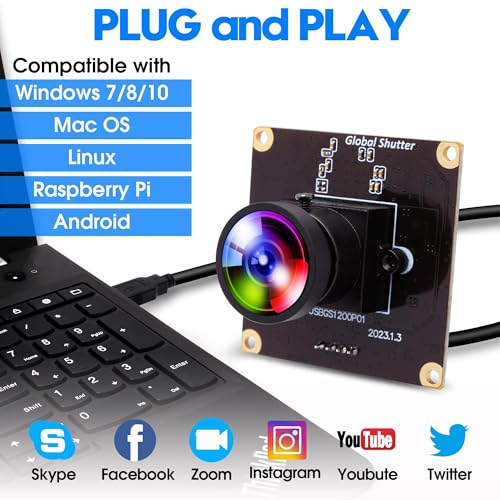

- Compatible with Windows, Linux, Android, and Mac OS operating systems
- High-quality Aptina AR0234 sensor with full HD 1920x1200 resolution and high-speed MJPEG compression
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description
Experience high-speed imaging with the ALPCAM 2MP Global Shutter USB Camera Module, featuring a 1200P resolution and 90fps frame rate, making it perfect for applications requiring fast and accurate video capture, such as golf swing analysis. Equipped with a wide-angle, no-distortion lens and the AR0234 UVC Lightburn camera, this module provides exceptional image quality and versatility. Compatible with a range of operating systems, including Windows, Linux, Android, and Mac OS, the ALPCAM camera module is a reliable choice for various uses, from webcam applications to industrial vision systems. With its compact design and plug-and-play functionality via USB, integrating the ALPCAM 2MP camera into your project is seamless. The module includes a high-quality Aptina AR0234 sensor, full HD 1920x1200 resolution, and high-speed MJPEG compression, making it suitable for high-speed sports photography, AI object recognition, industrial inspection, and more.
The ALPCAM 2MP camera module also features a high-quality lens with M12 mount, wide-angle, and no-distortion design, providing super image reality and real color reproduction without interpolation. The module supports UVC, allowing for free driver installation and plug-and-play functionality on different systems. Additionally, it supports OTG, enabling use on Android smartphones with the recommended USB Camera app.
The ALPCAM 2MP camera module has a wide range of applications, including high-speed sports photography, AI object recognition, industrial inspection, video applications, industrial automation, robotics, and scientific imaging. It can also be used for augmented and virtual reality, gesture and eye tracking, depth and motion detection, and more.
- Sensor: 1/2.6 inches AR0234 sensor

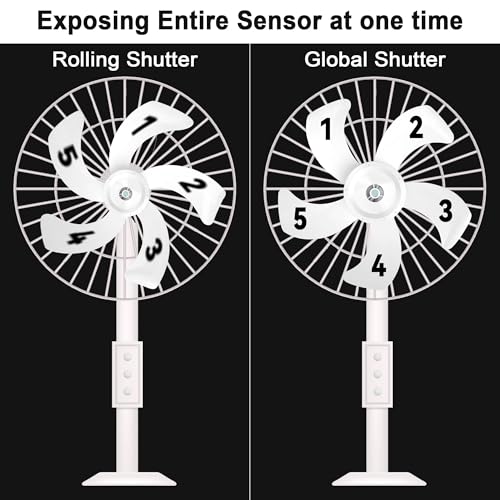

- Shutter: Global Shutter
- Max Resolution: 1920 (H) x 1200 (V)
- Compression Format: MJPEG, YUV2 (YUYV)
- Focus: Fixed
- Interface: USB 2.0 High Speed
- Lens Parameters: No Distortion M12 Lens
- Central Definition: 600LWPH (Center)
- Sensitivity: 1.4Vlux-sec@550nm
- Min Illumination: 0.3lux
- SN Ratio: 37dB
- Operating Voltage: DC 5V
- Dimension: 38mm x 38mm
- Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure
Specifications & Details
| SKU | BMB0DM92T2MC |
|---|---|
| Brand Name | ALPCAM |
| Item Weight | 0.100 kgs |
| Package Dimensions | 4.53 x 2.76 x 2.36 inches |
| Item model number | USBGS1200P01-H120 |
| Color Name | GS1200P01 |
| Special Features | Global Shutter, 1200P@90FPS;1080P@90FPS, No Distortion Lens |
