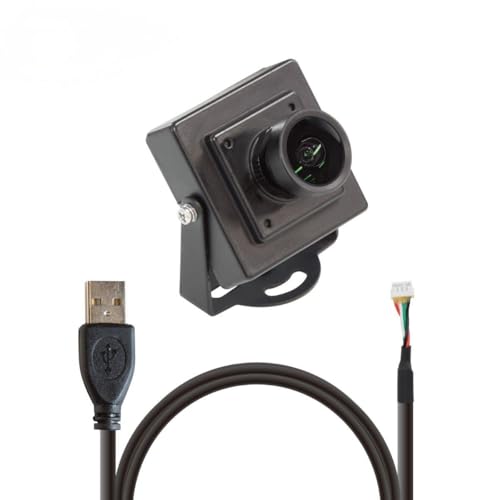

Arducam 5MP Wide Angle USB Camera with Mini Metal Case, 1/4" CMOS OV5648 Mini UVC USB2.0 Video Webcam with Microphone for Windows, Linux, Android, and Mac OS
(-21%)
Save 22%Brand: Arducam
Dispatched in 15 to 20 days
Key Points
- High-resolution 5MP sensor with 2592 x 1944 resolution and MJPG and YUY2 data formats
- Wide-angle lens with 90-degree field of view and M12 lens mount
- Built-in microphone and adjustable parameters for contrast, saturation, exposure, and white balance
- Compatible with Windows, Linux, Mac, and OS with UVC driver and USB powered with MAX 250mA working current
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

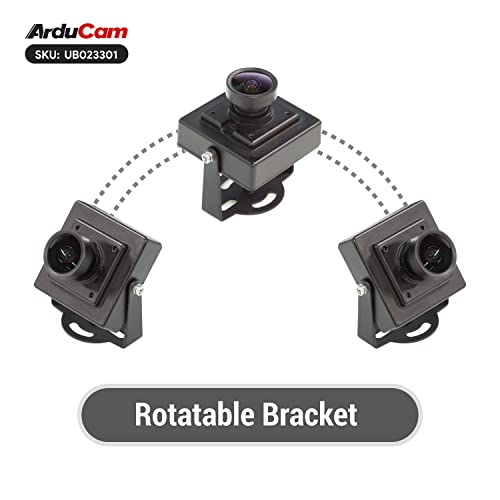

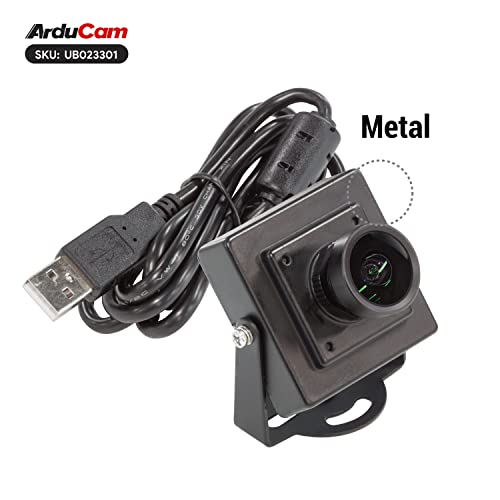

Experience high-quality video streaming with the Arducam 5MP Wide Angle USB Camera, featuring a 1/4 CMOS OV5648 sensor and mini metal case. This compact UVC USB2.0 webcam is compatible with Windows, Linux, Android, and Mac OS, making it a versatile solution for various applications. With its wide-angle lens and built-in microphone, this camera is perfect for video conferencing, live streaming, and more. The Arducam 5MP OV5648 camera module is designed for easy integration and offers a range of features, including a high-resolution 5MP sensor and USB2.0. Arducam UB023301 is a new member of Arducam's USB camera family, offering a 5MP resolution based on the 1/4 OV5648 image sensor, UVC compliant, and wide-angle USB 2.0 camera. Ultra HD resolution meets your request for higher quality video and still pictures resolution. This portable USB camera comes with a metal case and rotatable bracket, allowing you to easily put it on a desk or install it on a trip or on the wall with screws and adjust to your preferred angles, great for home security monitoring, online teaching, live streaming, online meeting, or embedded industrial projects.

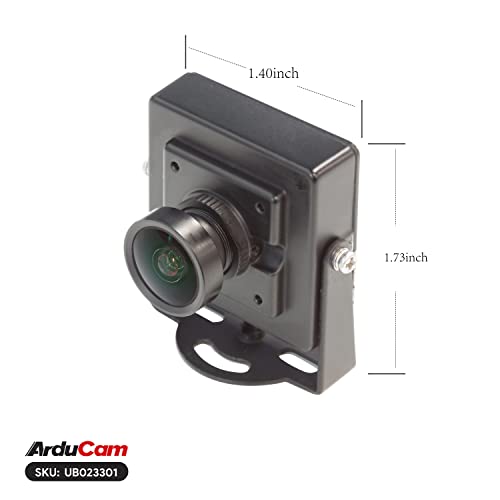

The camera's technical specifications include a sensor size of 1/4 OV5648, resolution of 5MP (2592 x 1944), and data format of MJPG (15fps) and YUY2 (5fps). The lens has a field of view of 90 degrees, lens mount of M12, and IR sensitivity with an integral 650nm IR filter. The camera's functionality and compatibility include adjustable parameters such as contrast, saturation, exposure, and white balance, and is compatible with Windows, Linux, Mac, and OS with UVC driver. The power supply is USB powered with a working current of MAX 250mA, and the physical dimensions are 40mmx25mmx45mm with a cable length of 3.3ft (1M).
Specifications & Details
| SKU | BMB09CGJZZBN |
|---|---|
| Brand Name | Arducam |
| Item Weight | 0.100 kgs |
| Package Dimensions | 3.19 x 2.09 x 2.05 inches |
| Item model number | UB023301 |
| Color Name | 5MP OV5648 with Metal Case |
| Special Features | Low Light |
