BeElion 8-CH UTP 720P 1080P HD Passive Video Balun Transceiver, BNC to Cat5 5E 6 RJ45(T568B) UTP Cable Converter Video Transmitter for HD-CVI TVI AHD CCTV Surveillance Camera
(-34%)
Save 35%Brand: BeElion
Deliverable in 10+Business Days
Key Points
- Port RJ45 BNC Transmission Distance HDCVI 720P 400m 1080P 250m, HD-TVI 720P 1080P 250m, AHD 720P 250m 1080P 200m
- Dimension 7.1 x 2.0 x 1.0 (L W T) Weight 381g Applicable Range NTSC, PAL, SECAM and CCIR Systems

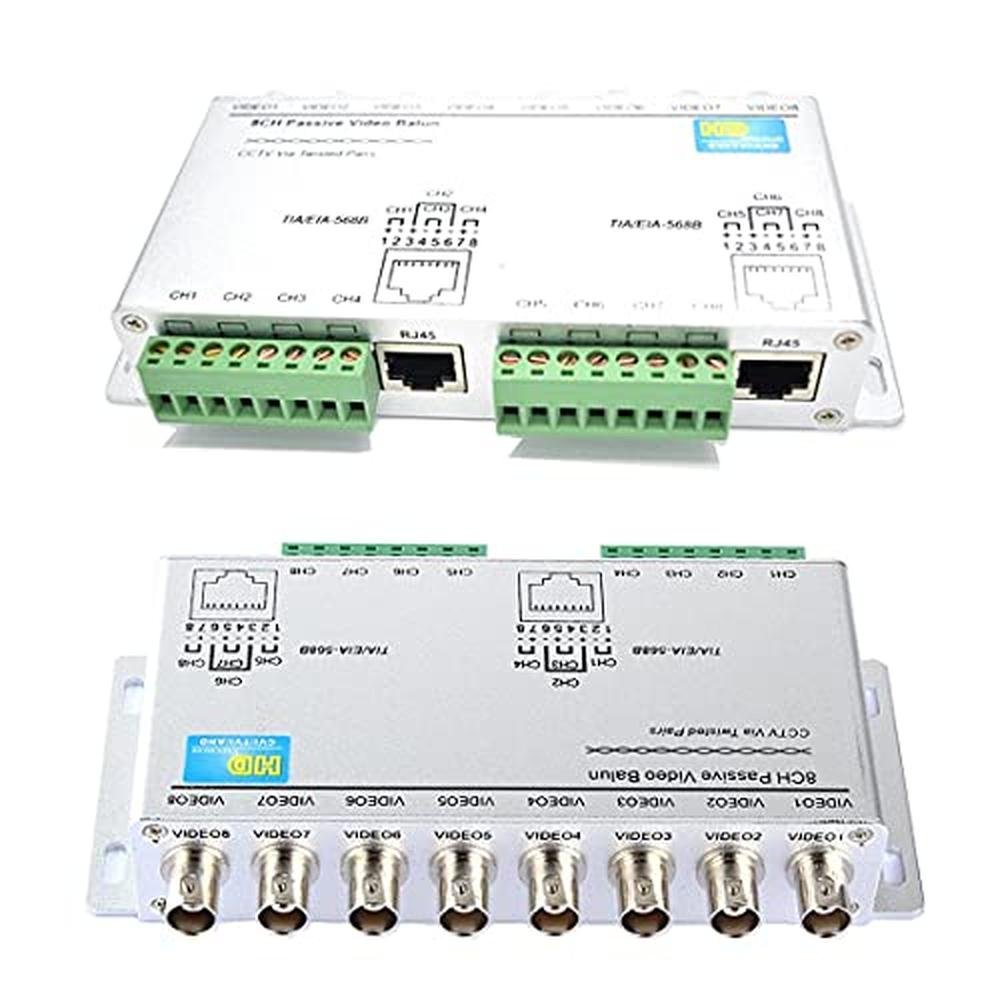

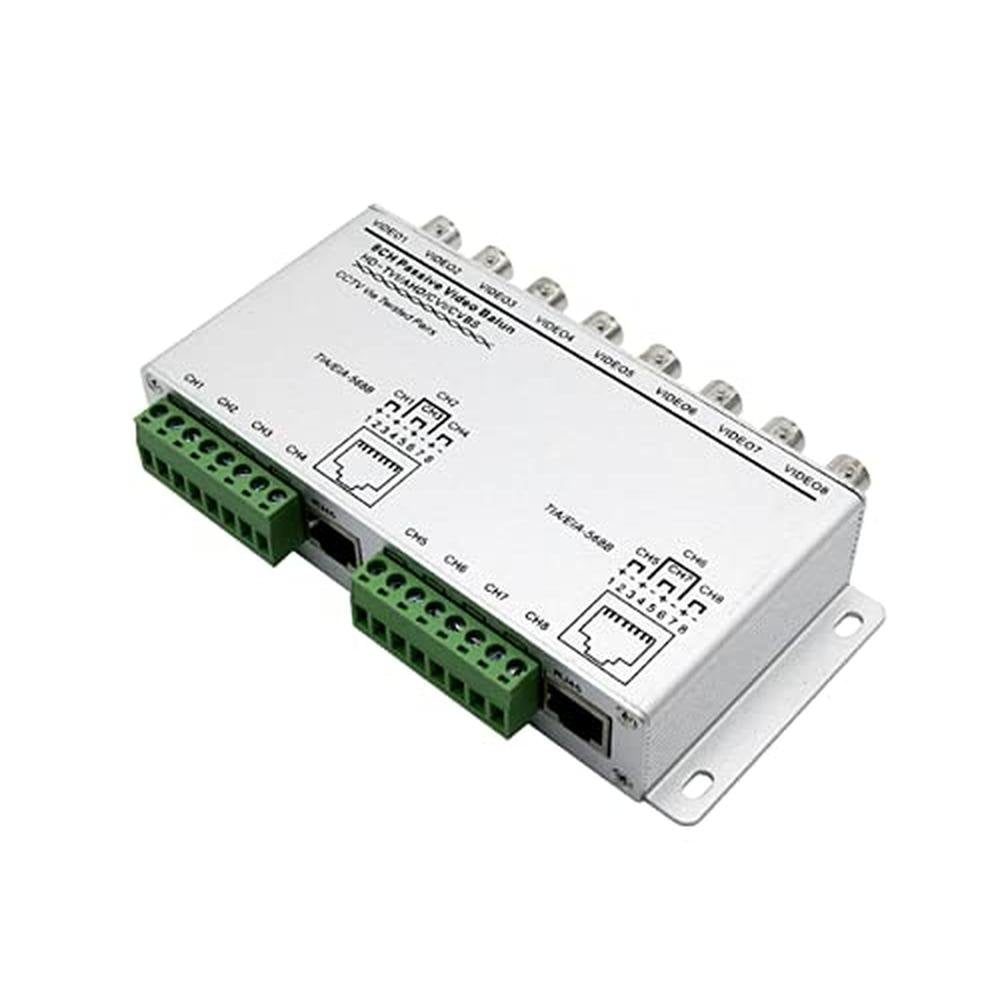

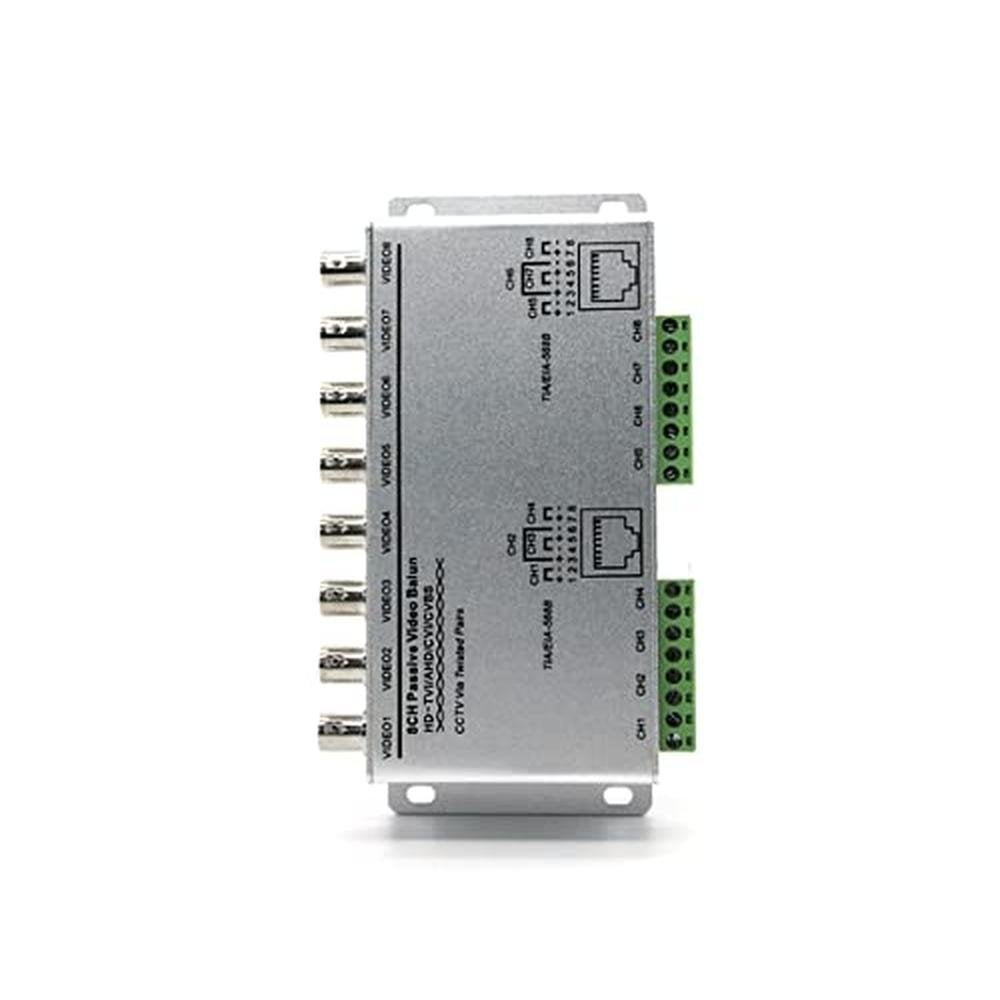

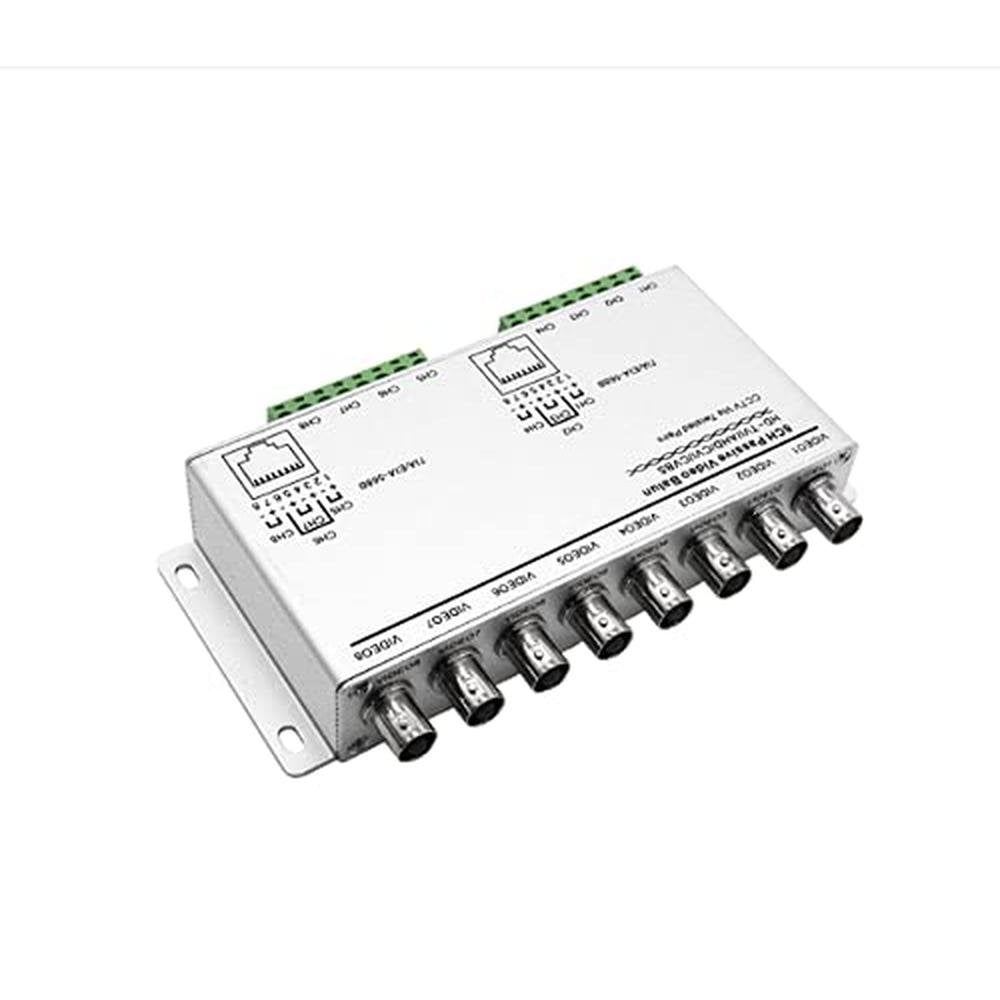

- Casing Material Aluminium Alloy shell with pure copper BNC connectors Product Name 8 Channel Passive HD Video Balun
- Operating Temperature -10 C-55 C, Storage Temperature -20 C-70 C Humidity 0-96 (non-condensing)
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

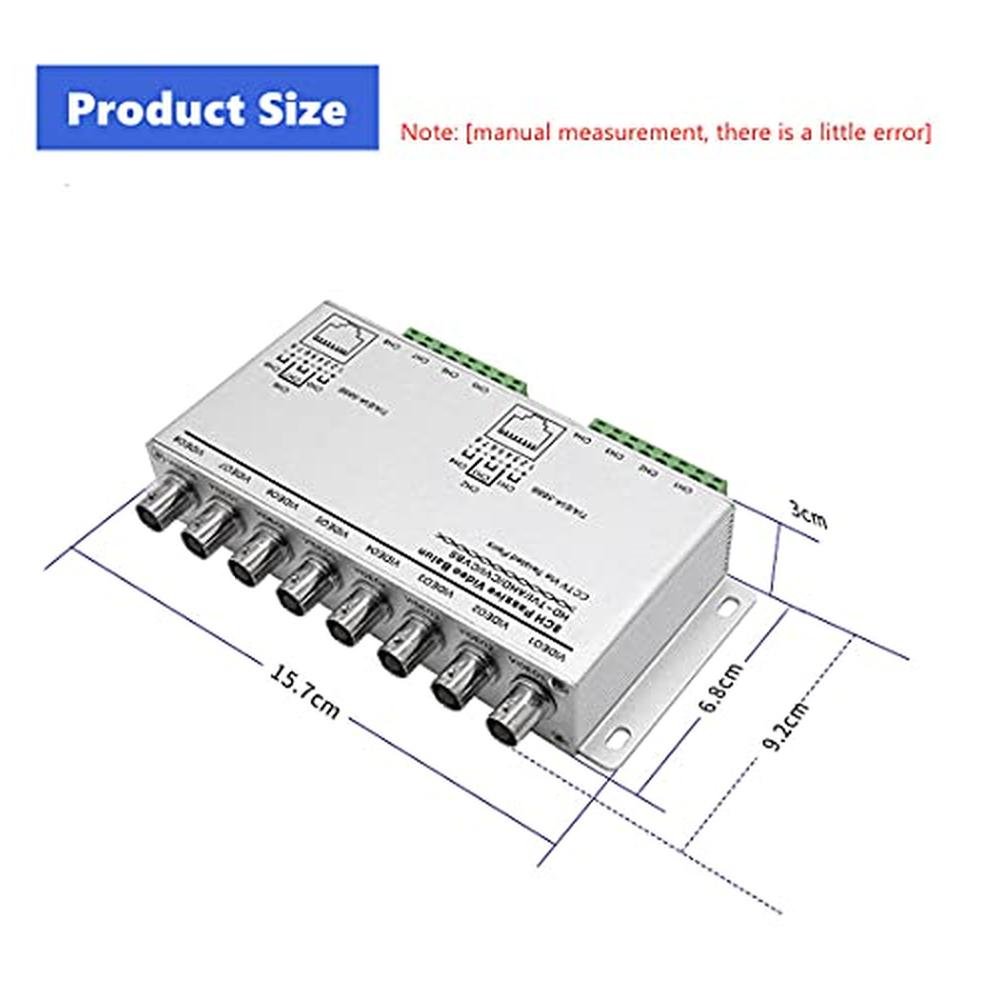

Description -Transmission Signal 8 Channel -Transmission Distance HDCVI 720400m 1080250m, HD-TVI 7201080250m, AHD 720250m 1080200m -Category Type UTCAT5 5E 6 Video Transmission Properties and Port -Compatible Format BNC-M -Twisted-pair Video Connector Push-terminal -Compatible Format HDCVI HDTVI AHD -Resolution 7201080 -Anti-interference 60d -ESD 1A contact discharge electricity level3 -Coaxial Cable Connector 2KV(common-code) Per IEC1000-4-5 -UTCable Connector 2KV(different-code),4KV(common-code).Per IEC1000-4-5 -Impedance BNC Mother-75ohms -Dimension(L W H) 180 52 25mm Shell Material ABS Aluminium Alloy Shell , Color Silver, Net Weight 380g MTBF 10000H -Operating Temperature -10 C-55 C, Storage Temperature -20 C-70 C -Humidity 0-95 (non-condensing). Cable Recommendation Link cable is recommended to use high quality UTcable. Poor quality cable or network connection or improper construction will cause unstable connection,video or sound disruptions,picture noise appears. Note The transceiver is not waterproof set,so keeping transceiver away wet environment will be prefer -Suggest to use the transceiver indoors.When installing the transceiver in outdoor,please install it in a waterproof place. Package Included 1 x 8-CH Passive HD Transceiver 1x Manual
Specifications & Details
| SKU | BMB098B2LW6Z |
|---|---|
| Product Dimensions | 6.57 x 3.94 x 1.69 inches ; 0.376 kgs |
| Item model number | BE369092ELECTRONICS |
| Manufacturer | BYL BeElion |
