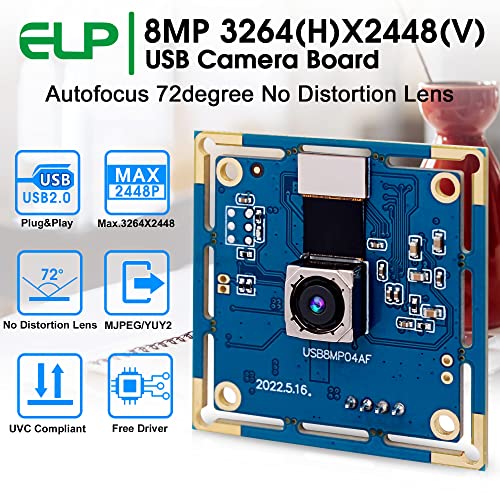

ELP 8MP USB Camera | Autofocus 4K PC Raspberry Pi Mini UVC USB2.0 Webcam Board IMX179 | Industrial Lightburn Camera
(-21%)
Save 22%Brand: ELP
Deliverable in 10+Business Days
Key Points
- High-resolution 8MP image sensor with autofocus capabilities
- 4K resolution at 15fps and UVC USB2.0 interface for fast and reliable image transfer
- Compact and lightweight design with a board size of 38x38mm and weight of about 30g
- Wide range of adjustable parameters, including brightness, contrast, and exposure, for optimal image quality
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description
The ELP 8MP USB Camera is a premium, high-resolution, autofocus-enabled webcam designed for use with PCs, Raspberry Pi, and other compatible devices, delivering crisp and clear images with its 4K resolution and UVC USB2.0 interface. This mini camera board is perfect for industrial, commercial, and personal applications, including video conferencing, surveillance, and Lightburn laser engraving, featuring the IMX179 image sensor. Whether you're looking for a professional-grade camera for high-end use or a simple webcam for your laptop, this device offers a reliable and versatile solution. With its advanced autofocus capabilities and high-quality image sensor, the ELP 8MP camera is an ideal choice for those seeking a top-tier camera solution. The camera's compact design and lightweight construction make it easy to integrate into a variety of applications, from industrial automation to personal video conferencing. The ELP 8MP camera's high-resolution image capture and fast frame rates make it perfect for applications where image quality and speed are crucial.
The ELP 8MP USB Camera's technical specifications include a sensor size of 1/3 inch, a pixel size of 1.4µm x 1.4µm, and a maximum resolution of 3264(H) x 2448(V) 8 Megapixel. The camera's compression format is MJPEG and YUY2 (YUYV), with various resolution and frame rate options available. The camera's SN ratio is 34dB, and its dynamic range is 72.5dB. The camera's sensitivity is 0.65VLux-sec at 550nm, and its minimum illumination is 0.5 Lux. The camera's shutter type is electronic rolling shutter with frame exposure, and its connecting port type is USB2.0 high speed. The camera's free drive protocol is USB video class (UVC), and its OTG protocol is USB2.0 OTG.
The ELP 8MP USB Camera's adjustable parameters include brightness, contrast, saturation, hue, sharpness, gamma, gain, white balance, backlight contrast, and exposure. The camera's lens parameter is AF lens, with a focus of 3.5mm and a DFOV of 72 degrees. The camera's power supply is USB bus power, with a 4P-2.0mm socket, and its operating voltage is DC5V. The camera's working current is 150mA-240mA, and its working temperature is -10 to 70 degrees. The camera's storage temperature is -20 to 85 degrees, and its board size and weight are 38x38mm (compatible with 32x33mm) and about 30g, respectively. The camera's cable is standard 1m, with optional 2m, 3m, and 5m cables available.
The ELP 8MP USB Camera is compatible with a variety of operating systems, including Windows XP, Vista, Win7, Win8, Win9, Win10, and Win11, as well as Linux with UVC (above Linux-2.6.26), MAC-OS X 10.4.8 or later, and Android 4.0 or above with UVC. The camera is deliverable in 10+ business days, and its variant SKU is BMB0C23C5NHS.
Specifications & Details
| SKU | BMB0C23C5NHS |
|---|---|
| Brand Name | ELP |
| Item Weight | 0.068 kgs |
| Product Dimensions | 1.49 x 1.49 x 0.84 inches |
| Item model number | ELP-USB8MP04AF-V72 8mp usb camera |
| Color Name | Blue |
| Special Features | 8mp Ultra HD, Autofocus 72degree no distortion lens, Lightweight, imx179 image sensor, mini size |
