Camera ELP | Sony IMX323 Sensor Mini Wide Angle USB Camera Module with Microphone | 170 Degree Fisheye Lens HD 1080P 0.01Lux Low Light Video Audio
(-21%)
Save 22%Brand: ELP
Deliverable in 10+Business Days
Key Points
- Sensor size of 1/2.9 inch and pixel size of 1.28x1.16 mm for high-quality images
- Maximum resolution of 1080P with compression formats including H.264, MJPEG, and YUV2YUYV
- Adjustable parameters such as brightness, contrast, saturation, hue, sharpness, gamma, gain, and white balance for customized settings
- Digital audio high-quality digital MIC that supports single and dual channels for clear audio capture
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

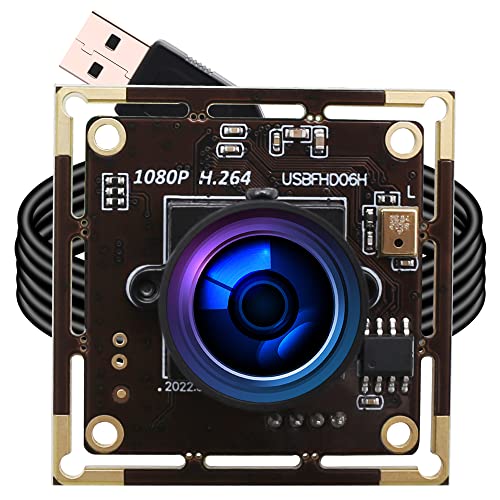

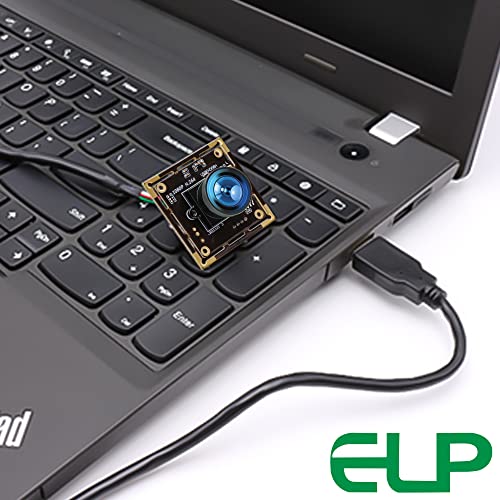

Experience high-quality video and audio with the ELP Sony IMX323 Sensor Mini Wide Angle USB Camera, featuring a 170-degree fisheye lens and HD 1080P resolution. With its exceptional low light sensitivity of 0.01Lux, this camera module is perfect for capturing clear videos and images even in dimly lit environments. The built-in microphone ensures crisp and clear audio, making it an ideal choice for video conferencing, surveillance, and streaming. This USB camera supports UVC and H.264 compression, and is compatible with USB 2.0, making it easy to integrate with your computer. The model ELP-USBFHD06H features a sensor size of 1/2.9 inch, pixel size of 1.28x1.16 mm, and an image area of approximately 2.24 M pixels. The maximum resolution is 1080P, with compression formats including H.264, MJPEG, and YUV2YUYV. The camera also features adjustable parameters such as brightness, contrast, saturation, hue, sharpness, gamma, gain, and white balance.
The camera's technical specifications include a signal-to-noise ratio of 42dB, dynamic range of 86dB, and sensitivity of 5.0V/lux-sec at 550nm. The mini illumination is 0.01 lux, and the shutter type is electronic rolling shutter with frame exposure. The connecting port type is USB 2.0 High Speed, with support for USB Video Class (UVC) and OTG protocol. The camera also features AE, AEB, and AGC support, as well as a digital audio high-quality digital MIC that supports single and dual channels.
The lens parameter standard FOV(D) is 100 degrees, with optional 2.1, 2.8, 3.7 mm FOV(D) 170 and 180 degrees. The camera's power supply is USB BUS POWER, with a 4P-2.0mm socket and operating voltage of 1.4-1.9V. The working current is -10-70mA, and the working temperature is -20 to 85 degrees Celsius. The board size and weight are 38x38mm and approximately 30g, respectively, with a compatible size of 32x32mm. The cable standard is 1M, with optional 2M, 3M, and 5M lengths. The operating system requirements include Win7, Win8, Linux 2.6 or above, and Android 4.0 or above.
Specifications & Details
| SKU | BMB071DD9YQD |
|---|---|
| Standing screen display size | 2.9 Inches |
| Max Screen Resolution | 1920X1080 (1080p Full HD) |
