ELP VGA Super Mini Wide Angle USB Camera Module | High-Performance 100-Degree Lens | High-Speed 480P 60fps UVC USB2.0 Video
(-34%)
Save 35%Deliverable in 10+Business Days
Key Points

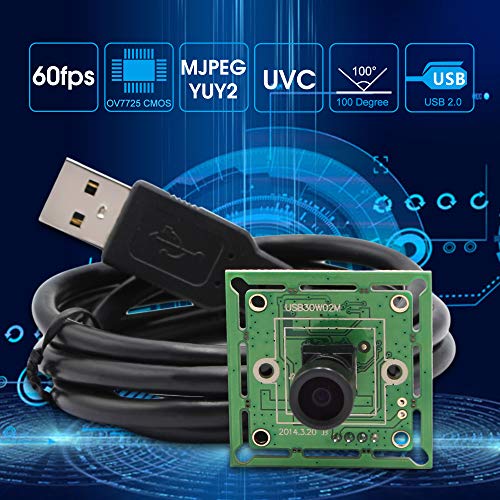

- High-performance 100-degree wide-angle lens with high-speed 480P 60fps UVC USB2.0 video capabilities

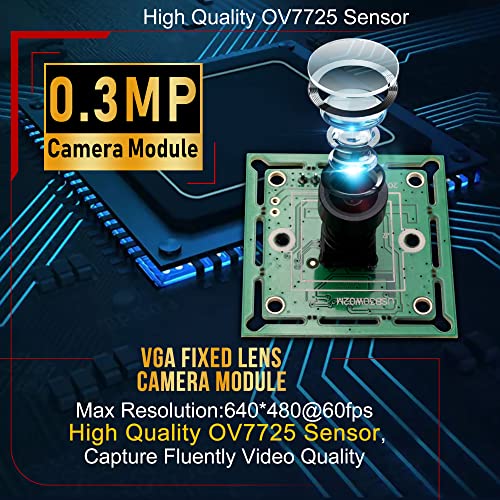

- Embedded OV7725 camera sensor for exceptional image quality and low-light performance
- Supports various resolutions and frame rates, including 640x480 MJPEG at 60fps and 480x480 MJPEG at 30fps
- Adjustable parameters such as brightness, contrast, saturation, hue, sharpness, gamma, and white balance for fine-tuned image control
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description
Experience the ultimate in industrial and computer vision applications with the ELP VGA Super Mini Wide Angle USB Camera Module, a premium high-performance camera solution designed to deliver exceptional image quality and versatility. With its 100-degree lens and high-speed 480P 60fps UVC USB2.0 video capabilities, this mini USB camera module is perfect for use with computers, Raspberry Pi, and Jetson Nano devices, offering a unique combination of wide-angle viewing, high frame rates, and advanced features. The embedded OV7725 camera sensor ensures exceptional image quality, making it an ideal choice for a wide range of applications, including video conferencing, surveillance, and machine vision. Discover the possibilities of this top-tier camera module, engineered to provide superior performance, reliability, and value.

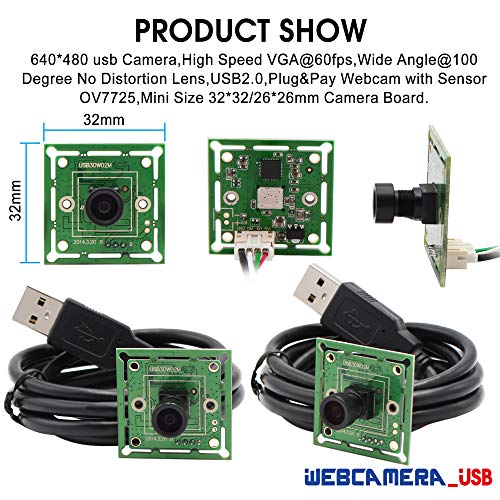

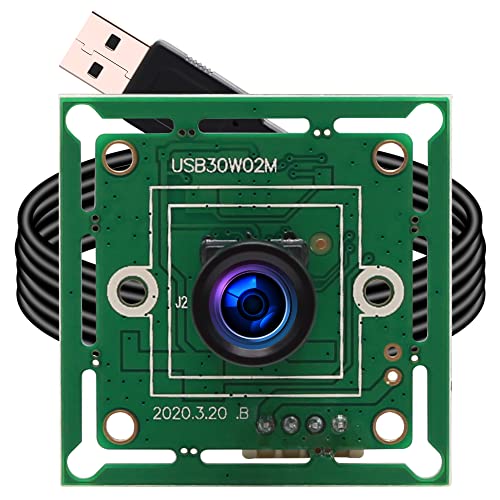

The ELP-USB30W02M-MHV100 is a mini size (32x22x26mm) 640X480 VGA USB camera with M7 100-degree wide-angle lens, featuring a sensor size of 1/4 inch, pixel size of 6.0um x 6.0um, and image area of 3984um x 2952um. The camera module supports various resolutions and frame rates, including 640x480 MJPEG at 60fps, 480x480 MJPEG at 30fps, and more. With a signal-to-noise ratio of 50dB, dynamic range of 60dB, and sensitivity of 3.8V/lux-sec at 550nm, this camera module delivers exceptional image quality and low-light performance. The camera also features adjustable parameters such as brightness, contrast, saturation, hue, sharpness, gamma, and white balance, allowing for fine-tuned image control.
The camera module is designed to be compact and lightweight, with a board size of 32x32mm and weight of approximately 30g. The camera is compatible with a wide range of operating systems, including Windows XP, Vista, 7, 8, Linux, and MAC-OS X 10.4.8 or later. With its high-quality construction, advanced features, and exceptional performance, the ELP VGA Super Mini Wide Angle USB Camera Module is the perfect choice for industrial, computer vision, and other applications where high-performance imaging is required.
Specifications & Details
| SKU | BMB01DRG250Q |
|---|---|
| Manufacturer | Ailipu Technology Co., Ltd |
| Brand | ELP |
| Item Weight | 0.090 kgs |
| Product Dimensions | 1.5 x 1.5 x 0.16 inches |
| Item model number | ELP-USB30W02M-MHV100 |
| Is Discontinued By Manufacturer | No |
| Color | Black, Green |
| Size | 100degree |
| Manufacturer Part Number | ELP-USB30W02M-MHV100 |
