Global Shutter USB Camera Module | ELP-USBGS5MP01-H120 5MP 60fps High-Speed PC Camera | Wide-Angle 120-Degree Low Distortion Lens

Product Description

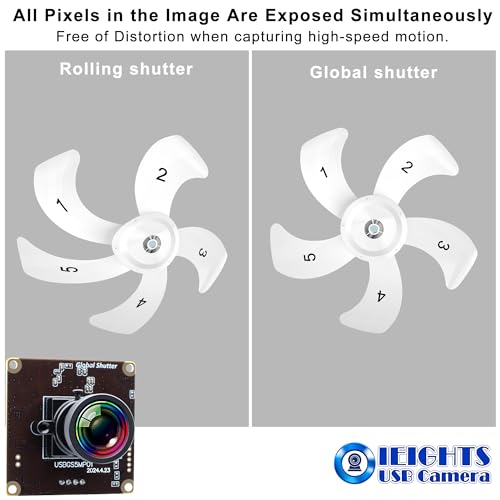

Experience the ultimate in high-speed imaging with our Global Shutter USB Camera Module, designed to capture life-like videos at 60fps. As a leading player in the camera global market, our module boasts a wide-angle 120-degree lens with low distortion, making it perfect for applications such as laptop webcams, PC cameras, and even laser engravers. With its mini UVC USB2.0 interface and compatibility with Lightburn software, this 5mp camera is a top choice among global camera brands, offering exceptional performance and value. Whether you're looking for the best global camera for your needs or seeking to stay ahead of the curve in global camera trends, our module is the perfect solution. With its global shutter technology, it provides superior image quality and reduced distortion, making it ideal for high-speed applications. The module's low distortion lens and high sensitivity ensure that it can capture high-quality images even in low-light conditions. Additionally, its adjustable parameters, such as brightness, contrast, and saturation, allow for fine-tuning to meet specific requirements. The module's compact design and lightweight construction make it easy to integrate into various applications, including laptop webcams, PC cameras, and laser engravers. With its wide range of resolutions and frame rates, including 2592x1944 at 50fps and 2560x1440 at 60fps, this camera module is versatile and can be used in a variety of applications. The module's USB 2.0 high-speed interface and compatibility with various operating systems, including Windows, Linux, and Mac OS, make it easy to integrate and use. The module's power supply is via USB bus power, and it has a working temperature range of 0C to 60C, making it suitable for use in a variety of environments. The module's dimensions are 38mm x 38mm, and it has a storage temperature range of -20C to 80C. The module comes with a 1M USB cable and is compatible with various operating systems, including Windows, Linux, and Mac OS. With its high-quality images, compact design, and versatility, this global shutter USB camera module is the perfect solution for anyone looking for a high-performance camera for their application.

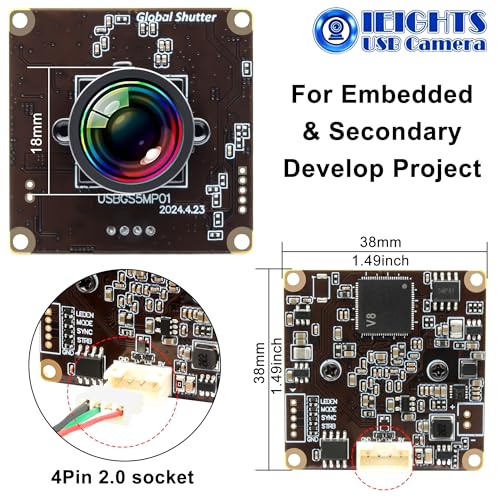

The module's technical specifications include a sensor size of 1/2.5 inch, a pixel size of 2.2um x 2.2um, and a compression format of MJPEG and YUV2. The module's resolution and frame rate options include 2592x1944 at 50fps, 2560x1440 at 60fps, and 2304x1296 at 60fps, among others. The module's interface is USB 2.0 high speed, and it has a working voltage of 5V and a working current of 180mA-230mA. The module's lens parameters include a low distortion lens with a horizontal field of view of about 120 degrees, and optional lenses with different fields of view are available. The module's adjustable parameters include brightness, contrast, saturation, hue, sharpness, gamma, and white balance, among others. With its high-quality images, compact design, and versatility, this global shutter USB camera module is the perfect solution for anyone looking for a high-performance camera for their application.
