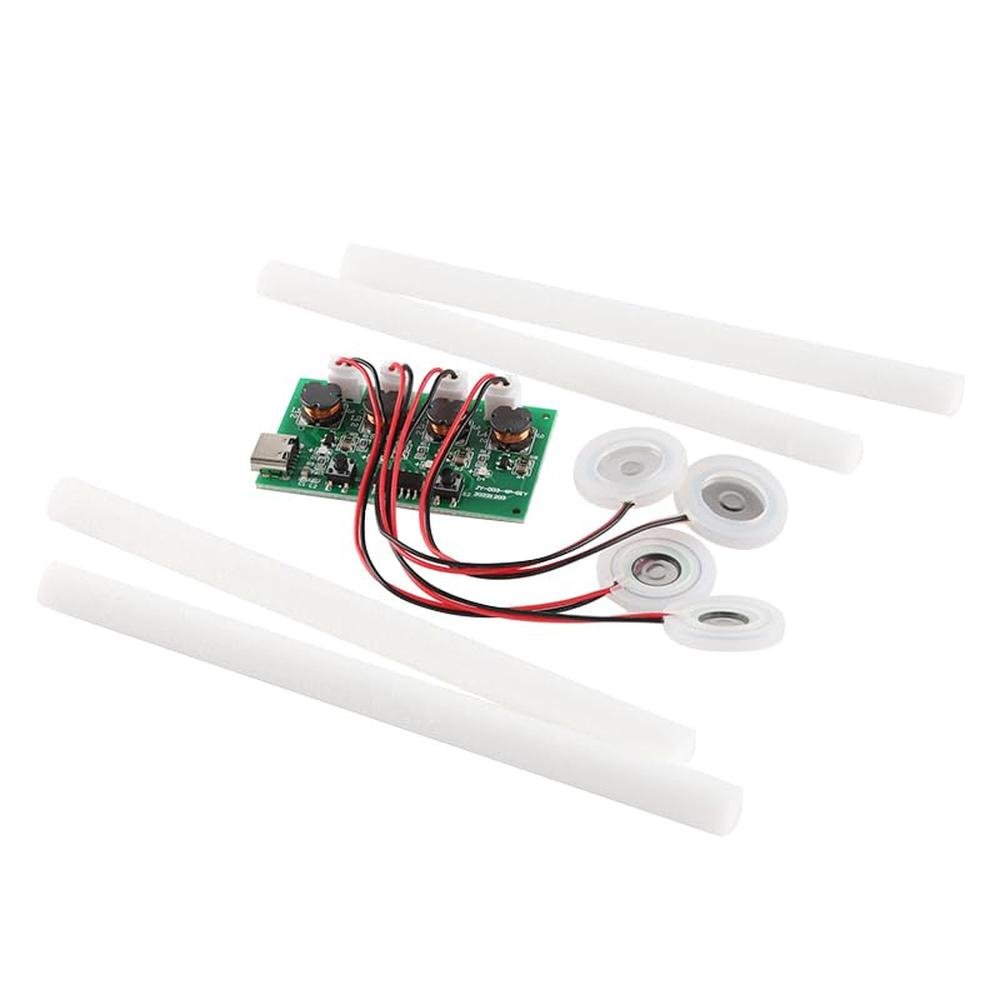

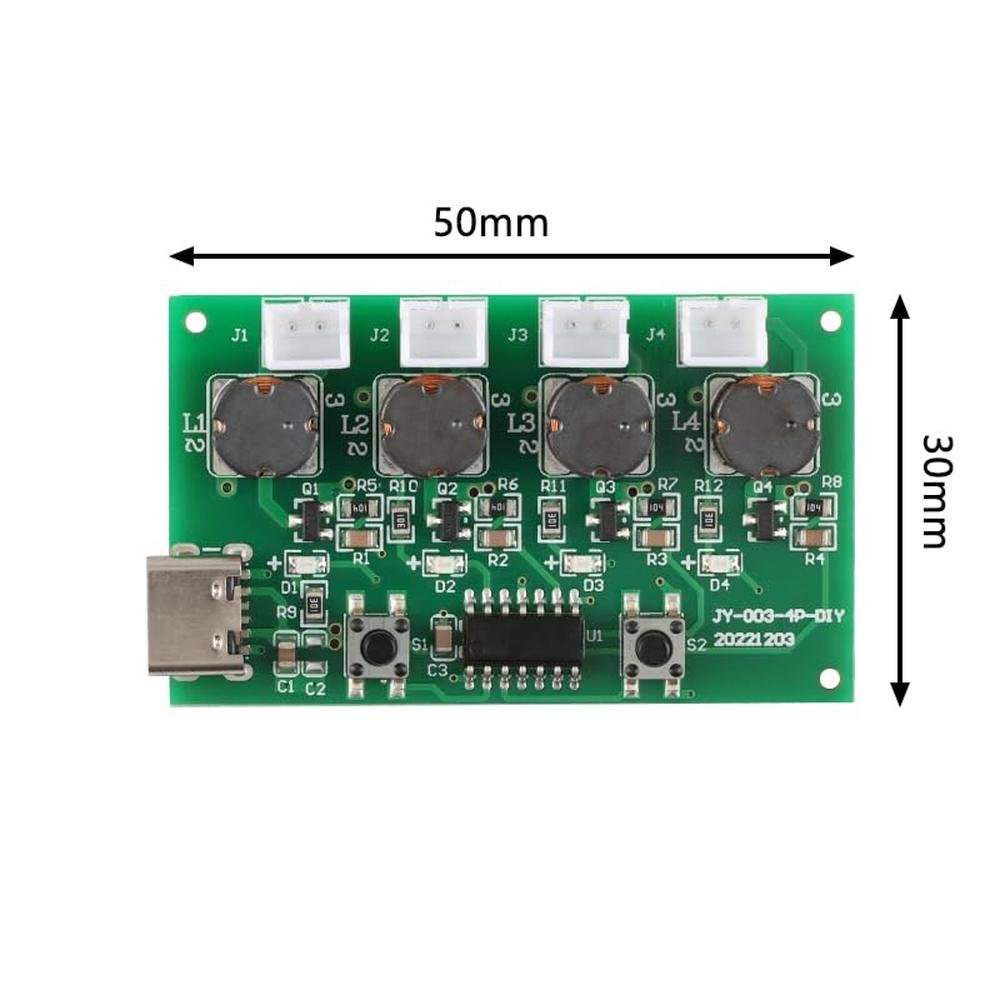

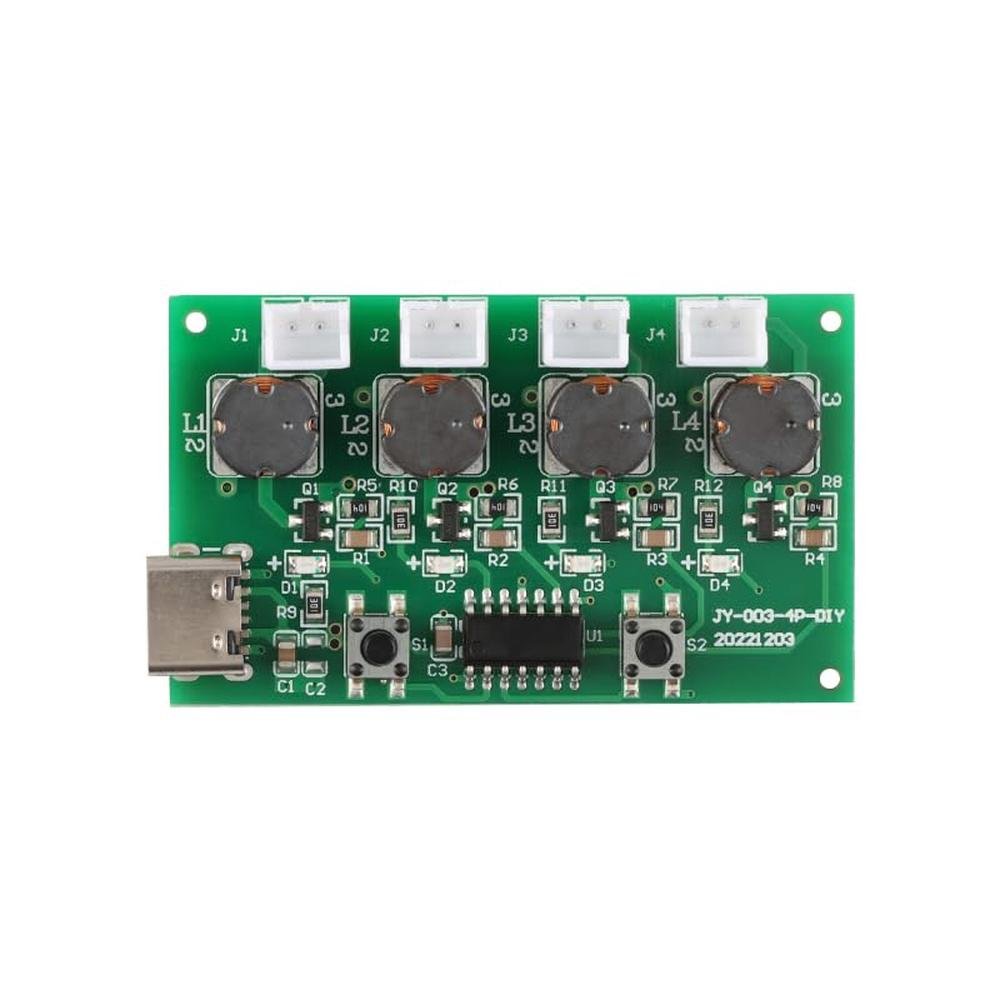

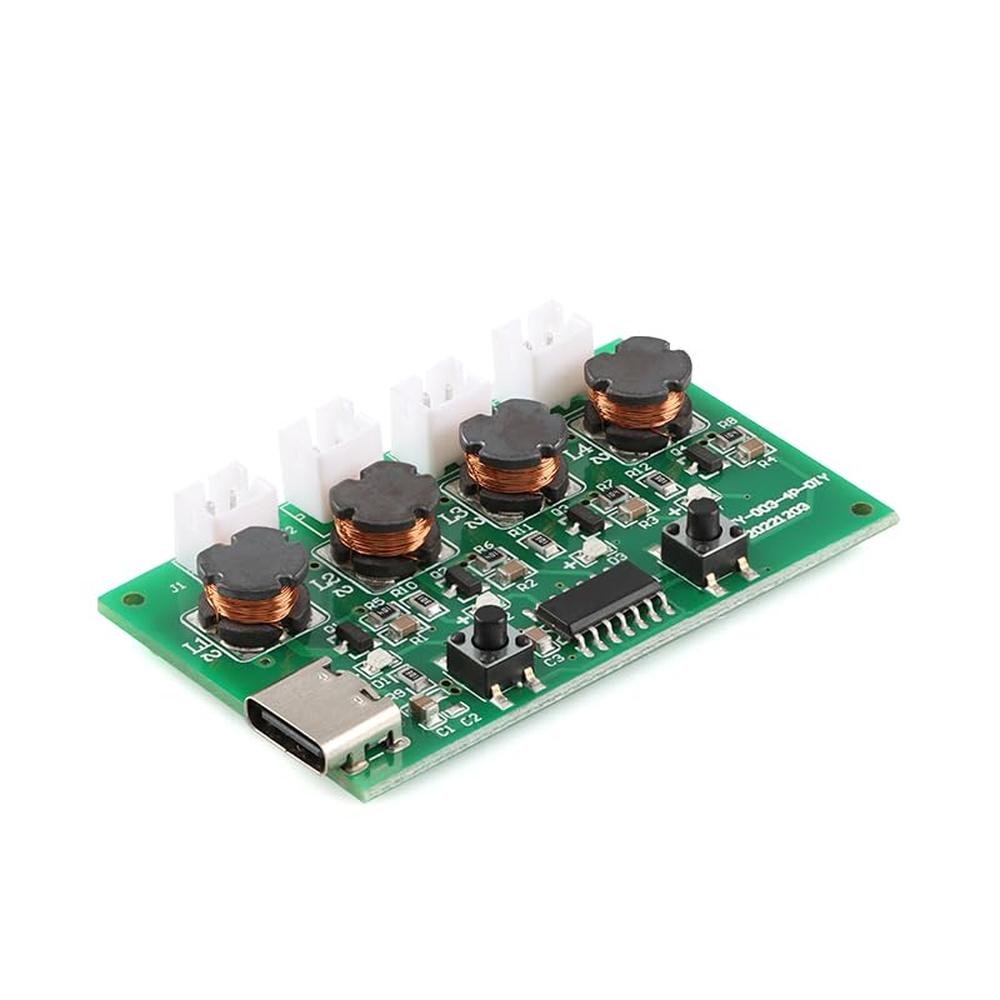

EC Buying Four Spray Humidifier Module DC 5V DIY Humidifier Control Board Atomizer Drive Board Four Way Ultrasonic Drive Board

Product Description

Spray mode 1. Continuous four-spray mode Press S1 switch Four nozzles continuously spray, and four LED lights are always on Automatic shutdown protection after 2 hours of spray Press S1 switch for the second shutdown 2. Dynamic spray mode (press S1 to start up first) Press S2 switch Dynamic spray, spray at No.1 port for 3 seconds, and the light is on accordingly; Spray for 3 seconds from the 2nd second at NO.2 port and the light on accordingly; Spray for 3 seconds from the 3rd second at NO.3 port and the light on accordingly; Spray for 3 seconds from the 4th second at NO.4 port and the light is on accordingly; In the 5th second, spray at No.1 mouth for 3 seconds, and cycle in turn. 3. Indirect spray mode Press S2 switch 2 times No.1 spray, the light is on; Press S2 switch 3 times No.1 and No.2 spray, the light is on; Press S2 switch 4 times No.1, No.2, and No.3 spray, the light is on; Press S2 switch 5 times No.1, No.2, No.3, and No.4 spray, the light is on Press S2 switch 6 times Return to the S2 start function, The above functions automatically shut down within 2 hours Product parameters Name: Microporous atomizing tablets Diameter: 16MM Drive voltage: DC3V-12V Rated power: 1.5W Atomization amount: 25-660M/H Power range: 0.6W-3W Resonant frequency: 103-113KHZ 5 Outer diameter of the silicone sleeve: 20MM Line length: 1 00MM-300MM Wire terminal: 2.0
