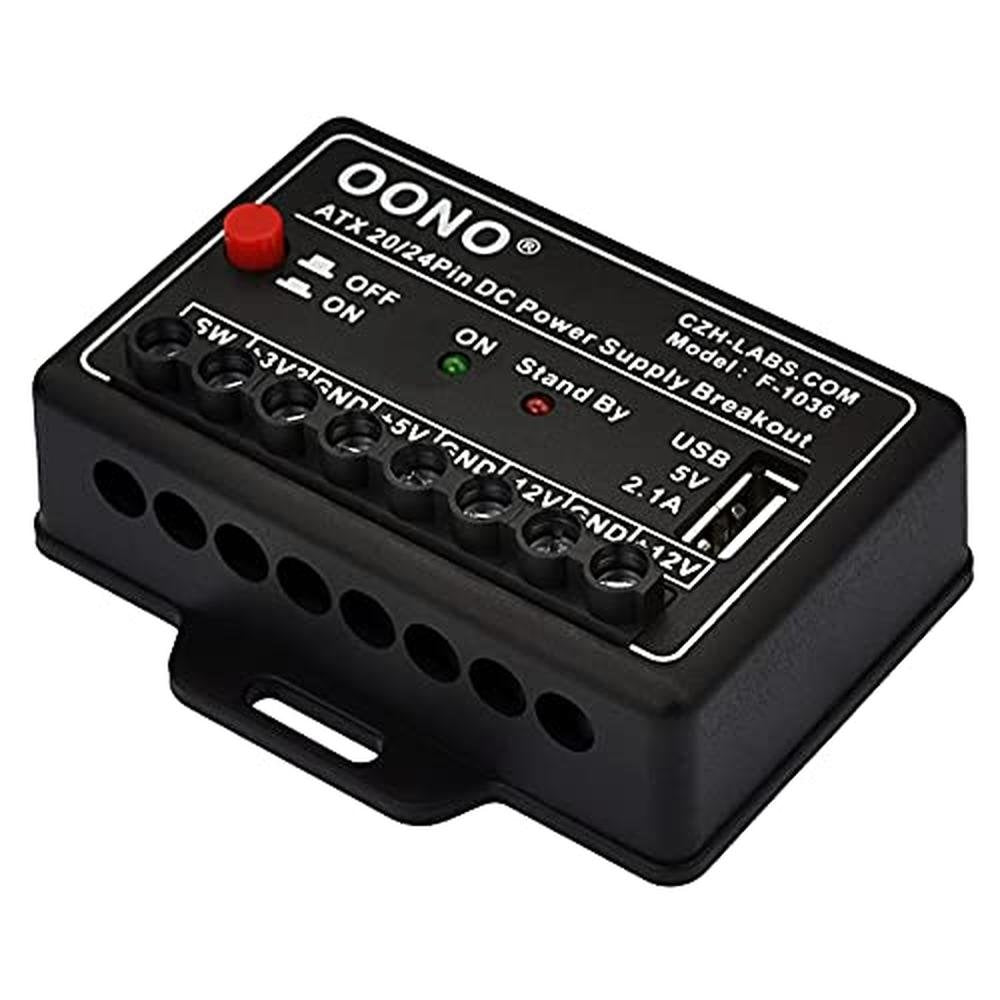

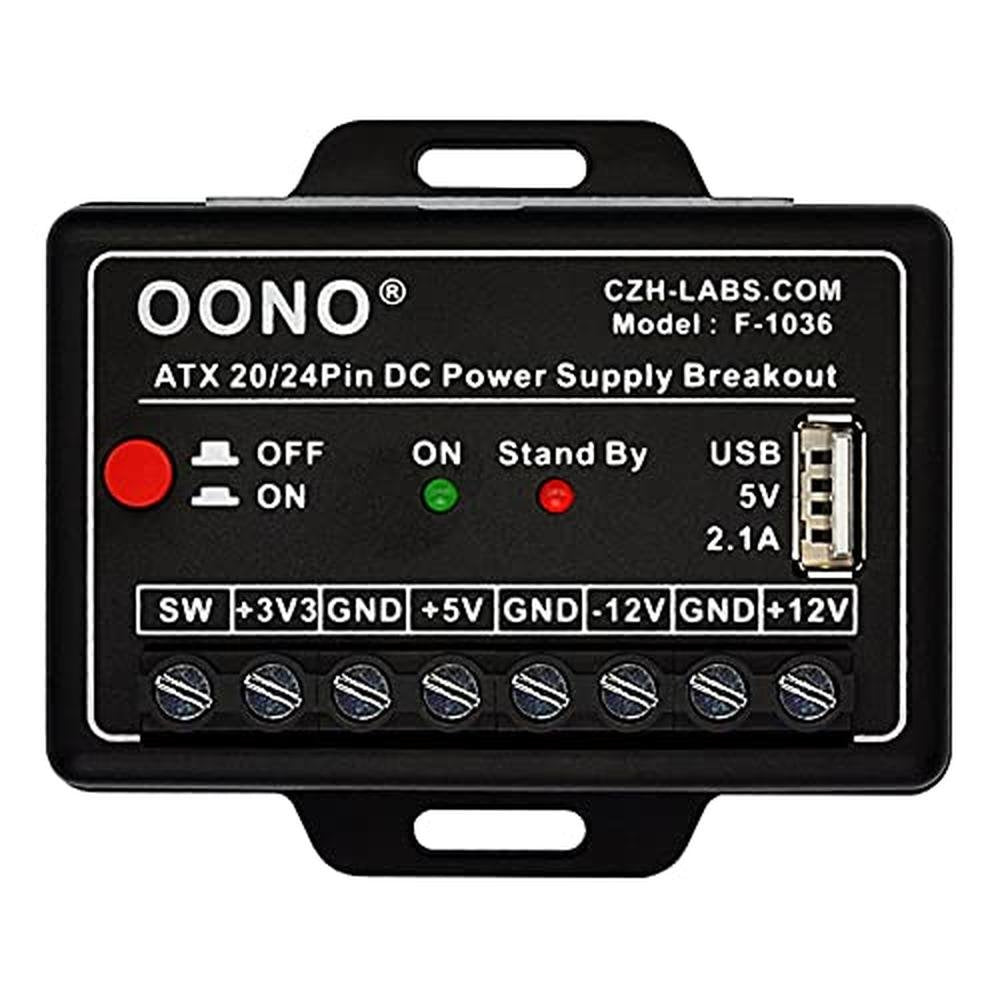

OONO ATX 24/20-Pin DC Power Supply Breakout Module with 2.1A USB Port
(-27%)
Save 28%Brand: Zalman
Deliverable in 10+Business Days
Key Points

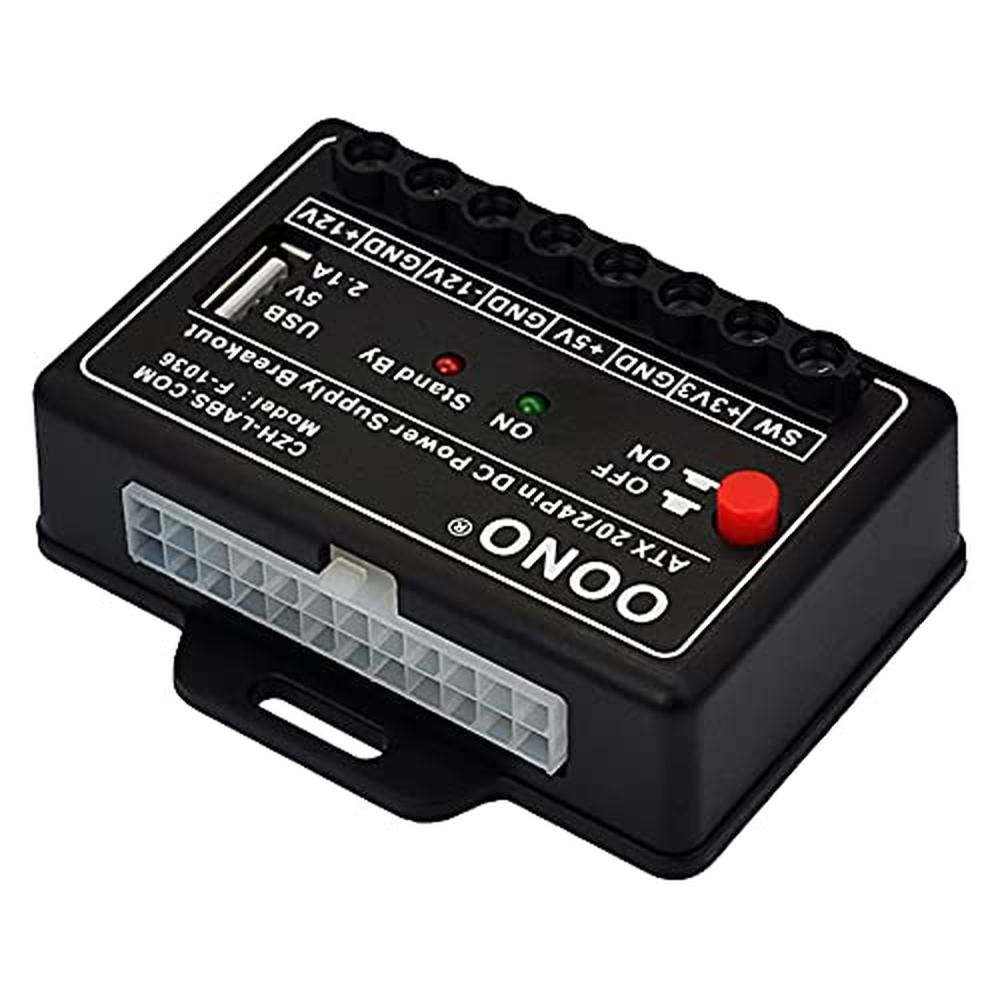

- 24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header.

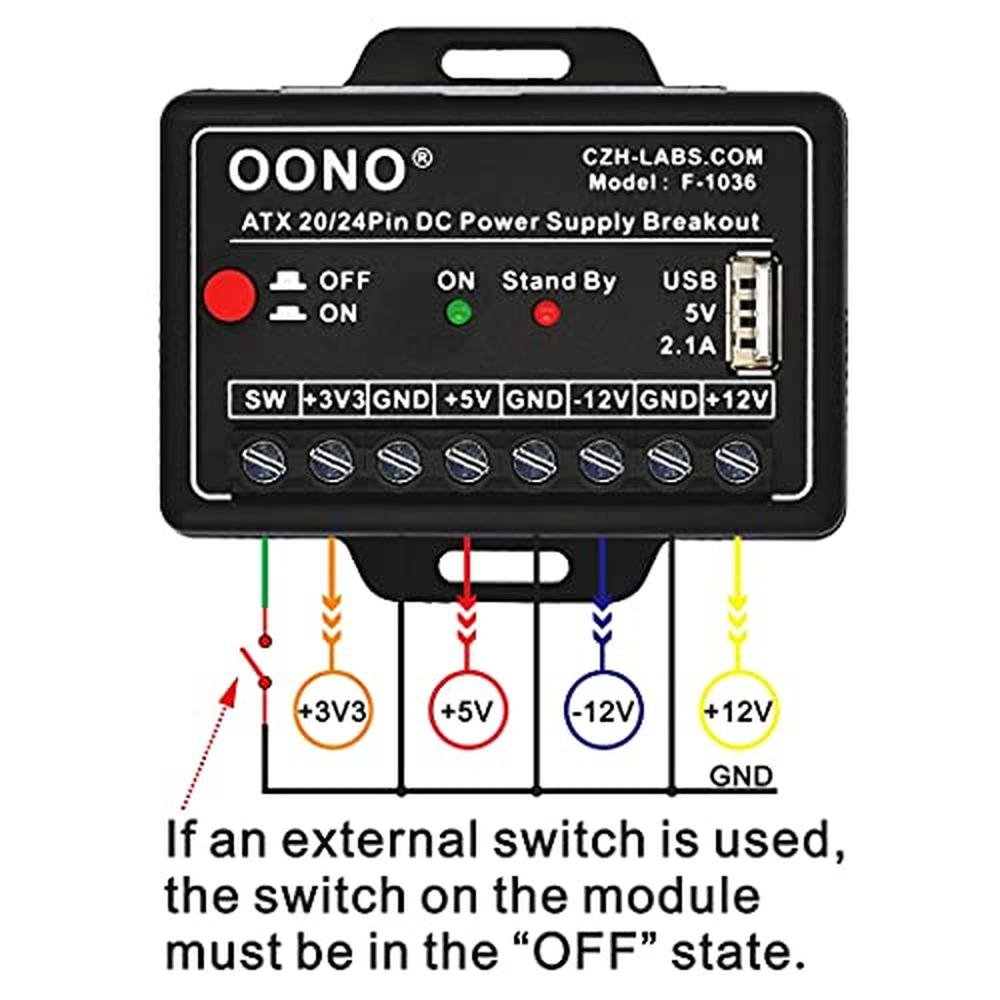

- Stand-By and Power-ON indicator LEDs. With latching button switch to control power output ON/OFF, it also supports external latching switch control power output ON/OFF(when using an external switch, the switch state on the module must be set to OFF)
- With USB 5V power output, can support 2.1Amp output current for Apple products.
- High quality screw terminal block for power output. +3.3V +5V +12V can support current maximum 24 Amp(continuous output 12 Amp), -12V can support current maximum 1 Amp.
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description
1, 24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header. 2, Stand-By and Power-ON indicator LEDs. With latching button switch to control power output ON/OFF, it also supports external latching switch control power output ON/OFF(when using an external switch, the switch state on the module must be set to OFF). 3, With USB 5V power output, can support 2.1Amp output current for Apple products. 4, High quality screw terminal block for power output. +3.3V +5V +12V can support current maximum 24 Amp(continuous output 12 Amp), -12V can support current maximum 1 Amp. 5, ABS plastic enclosure, you can use screw mount to wood board or wall, of course, can also be placed on the desktop.
Specifications & Details
| SKU | BMB0972X1RZM |
|---|---|
| Package Dimensions | 3.74 x 3.35 x 1.46 inches |
| Item Weight | 0.091 kgs |
| Item model number | F-1036 |
| Manufacturer | CZH-LABS |
