ELP Global Shutter USB Camera Module High Speed with Wide Angle Lens for Computer 1080P Mini UVC USB2.0 Webcam Board High Frame 90fps PC Camera for Laptop (100 no Distortion Lens)
(-23%)
Save 23%Brand: ELP
100% Genuine Products Guaranteed
Estimated Delivery: Mar 24th - Mar 29thKey Points
- Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
- HD Resolution: 2MP 1920Hx1200V; Frame Rates: MJPEG 90fps@1920x1200/1080P, fast frame for for high-speed moving objects shooting. 1080P usb camera module with 1/2.6 Aptina AR0234 high quality sensor for sharp clear image.
- Wide Angle 120degree No Distortion Lens, HFOV about 126degree, mini 38mmx38mm camera board can be used in machine visions for personal or industrial.

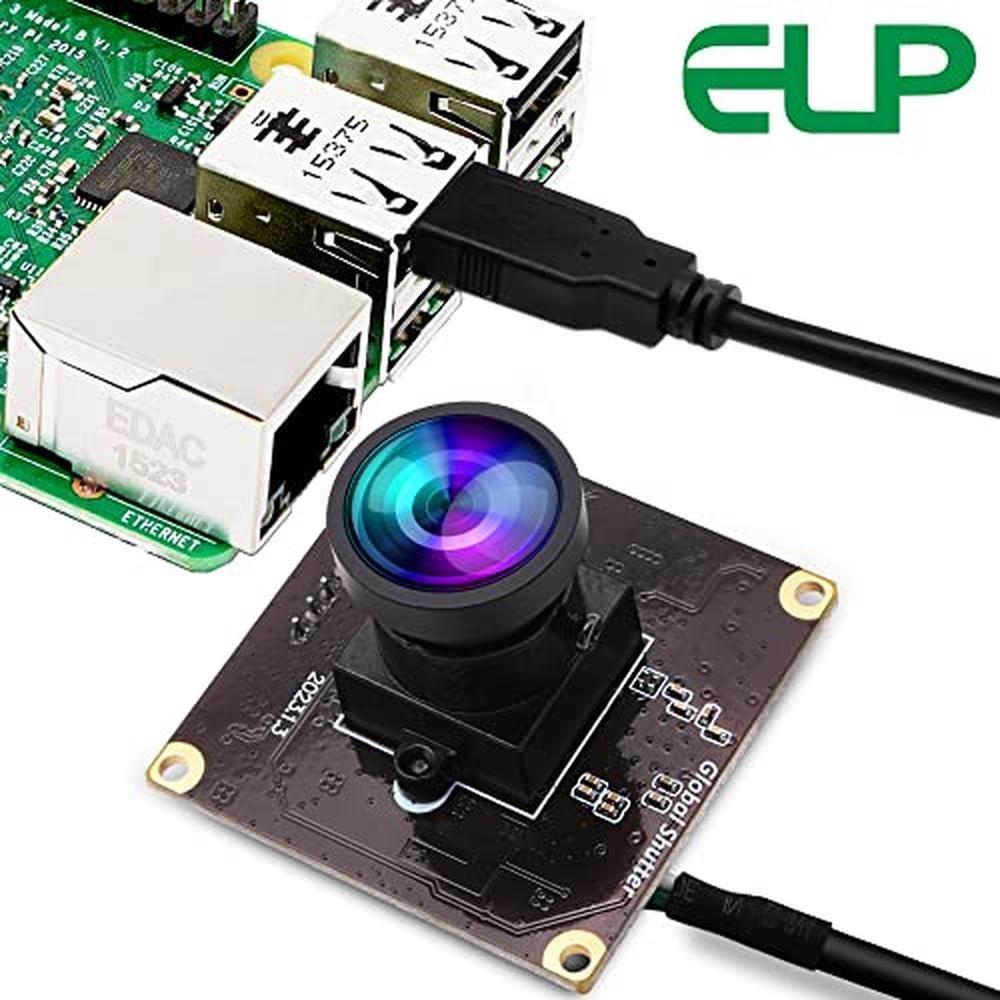

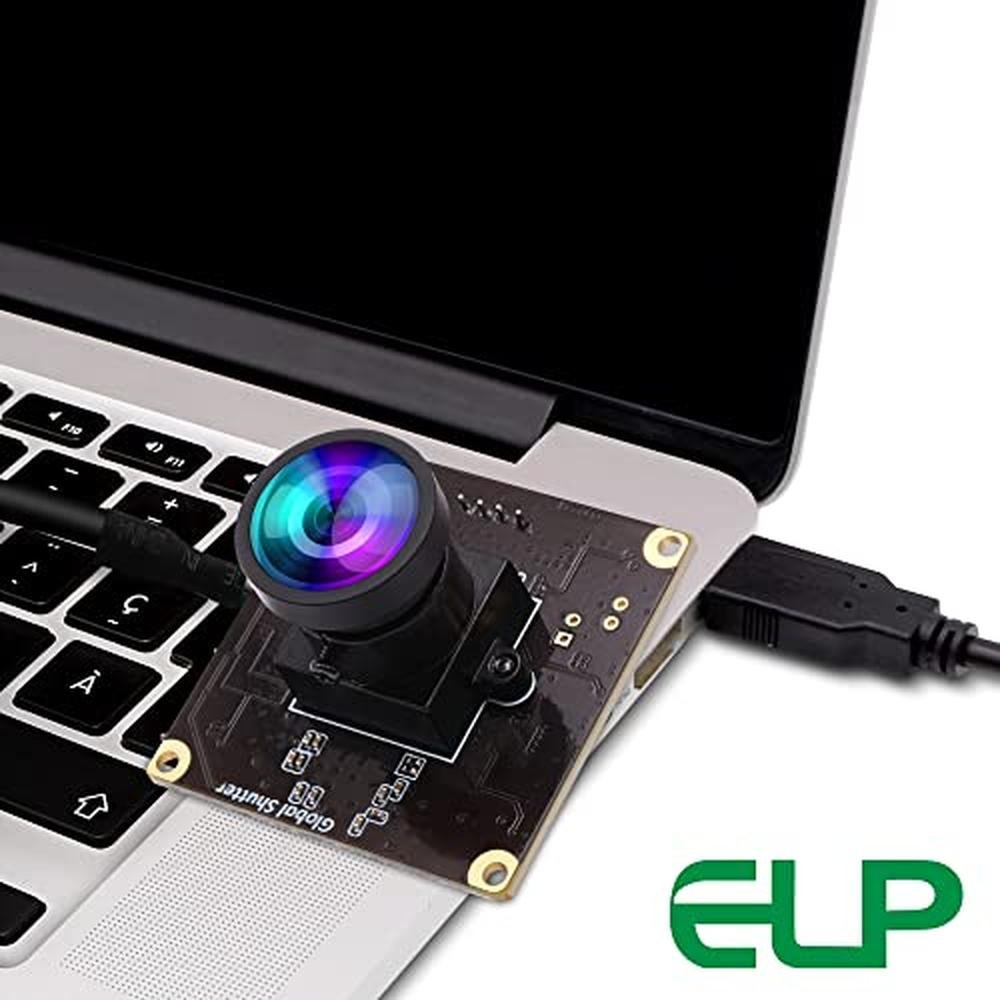

- Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
What Our Customers Say About Blumaple
Product Description

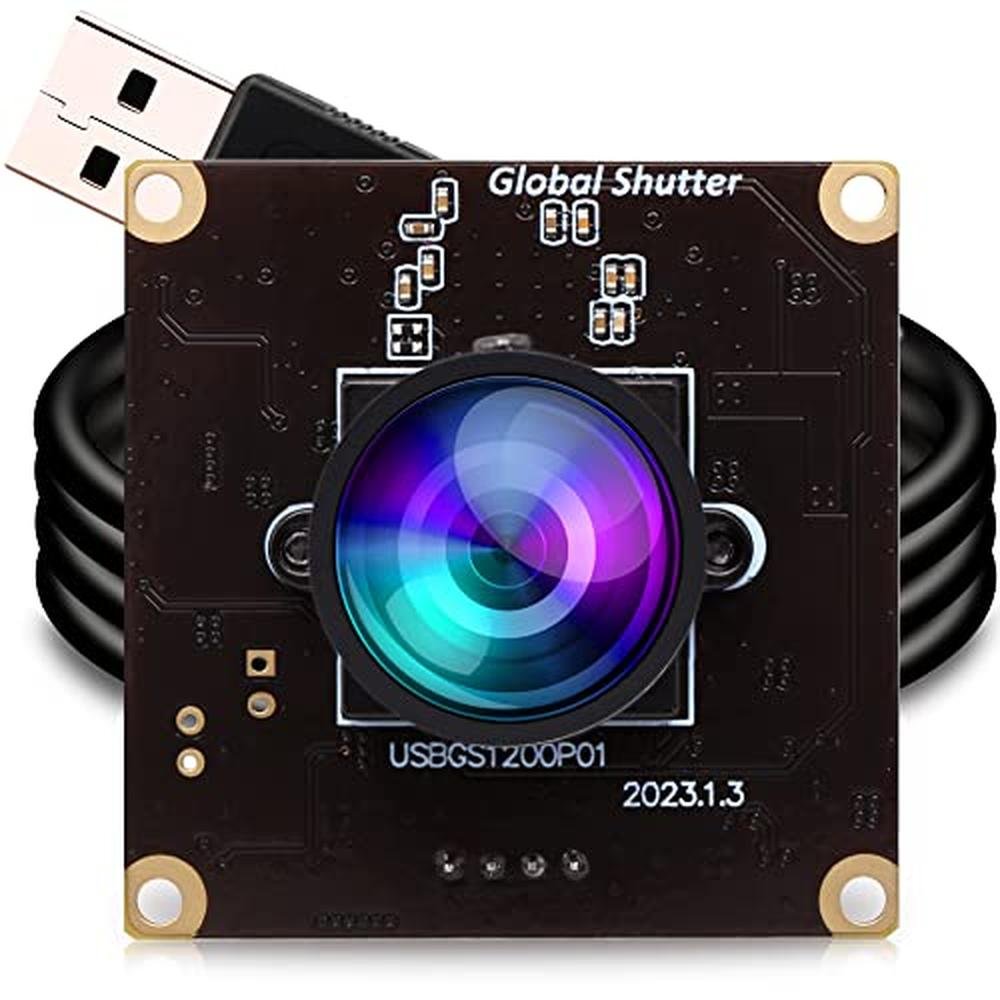

Model: ELP-USBGS1200P01 Sensor: Aptina AR0234 (1/2.6) Global Shutter Max Resolution: 1920 (H) *1200 (V) Lens Size: 1/2.6 inch (4:3) Pixel Size: 3.0m Compression Format: MJPEG / YUV2 (YUYV) Resolution & Frame rate: 1920x1200@90fps MJPEG/1920x1080@90fps MJPEG 1600x1200@90fps MJPEG/1280x960@90fps MJPEG 1280x720@90fps MJPEG/1024x768@90fps MJPEG 960x720@90fps MJPEG/800x600@90fps MJPEG 640x480@90fps MJPEG/320x240@90fps MJPEG Surface Mount Technology SMT Focus: Fixed Central Definition:600LW/PH (Center) S/N Ratio: 37dB Dynamic Range: 70dB Sensitivity: 1.4V/lux-sec@550nm Mini Illumination: 0.3lux Shutter: Global Shutter Interface: USB2.0 High Speed AEC Support/AWB Support/AGC Support Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure Lens Parameters: HD 2.1mm lens Optional 3.6mm/2.8mm/2.9mm/6mm/8mm/12mm/16mm/25mm... No Distortion Lens (FOV 65~130 degree optional) Fisheye lens 150 degree /180 degree etc. LED board power connector: Support 2P-2.0mm socket Power Supply: USB BUS POWER 4P-2.0mm socket Operating Voltage;DC5V Working Current:160mA- 190mA Dimension:38mm38mm Storage Temperature:-20C to 80C Working Temperature:0C to 60C USB Cable :1M Operating System Request: WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
Specifications & Details
| SKU | BMB0D41BSBTS |
|---|---|
| Brand Name | ELP |
| Item Weight | 0.090 kgs |
| Product Dimensions | 1.5 x 1.5 x 0.79 inches |
| Item model number | global shutter usb camera high speed |
| Color Name | 100 no distortion lens |
| Special Features | 1080P, Global shutter, Lightweight, high frame, mini size |
