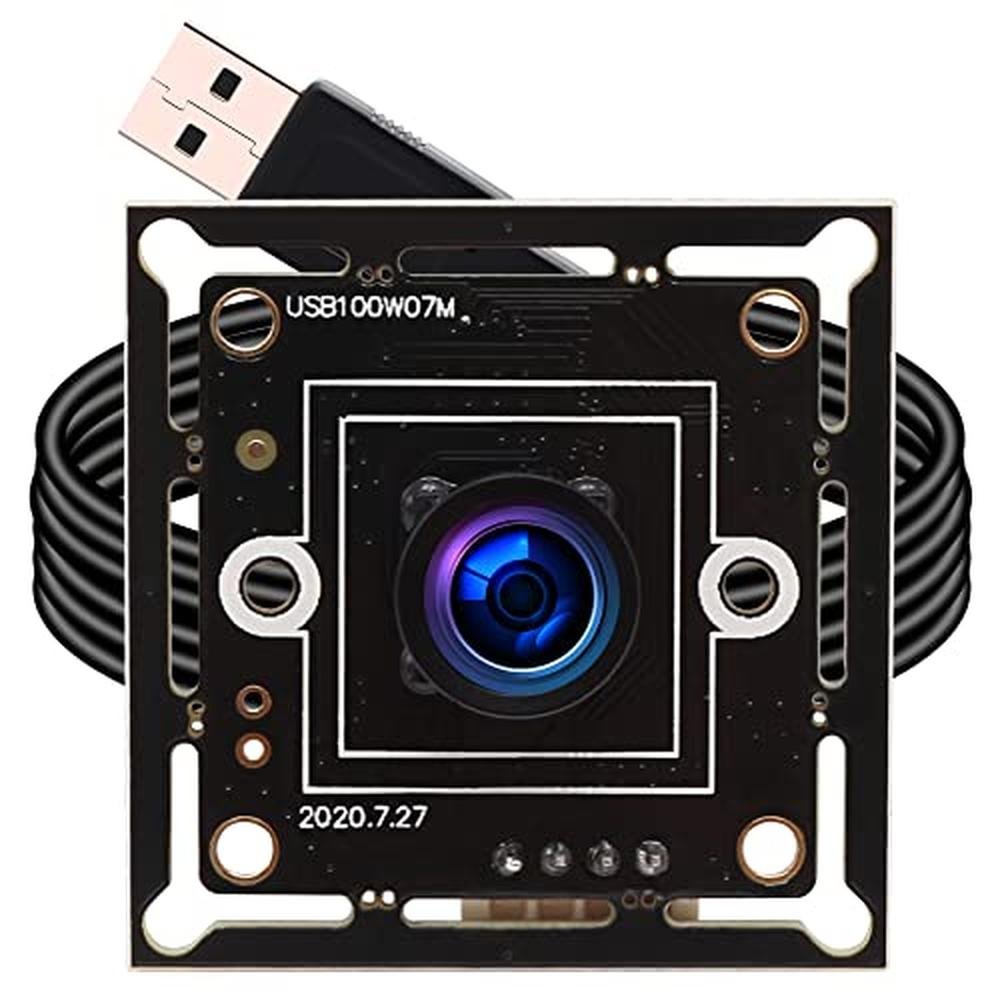

ELP Megapixel Super Mini 720p USB Camera Module Wide Angle with 120degree M7 Lens HD Digital Embedded Webcam Board for Computer USB2.0 UVC Video PC Opencv Camera Module,with 3.3ft/1m Cable for Laptop
(-9%)
Save 10%Brand: ELP | USA Warehouse
100% Genuine Products Guaranteed
Estimated Delivery: Jul 4th - Jul 9thKey Points
- Max 1280X720@30fps HD 720P high resolution,high pixel technology for sharp image and accurate color reproduction.
- Standard M7 mini lens with super wide 120 degree angle,FOV(D) 130degree, FOV(H)126degree. High quality lens,true and undistorted color image.
- USB2.0 high speed mini size 32x32/26x26mm for PC camera interface,super small outline and thin profile for embedded applications.
- CMOS OV9712 sensor for high quality image and low power consumption ideal for portable equipment.Free driver,easily used, plug and play.
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description
ELP-USB100W07M-MHV120 is a 720P USB2.0 OmniVision OV9712 Color CMOS Sensor USB Camera Mini Size (32*32/26*26mm) with M7 120degree wide angle Lens Specification: Sensor OV9712 Lens Size 1/4 inch Pixel Size 3.0um X 3.0um image area 3888m x 2430m Max. Resolution 1280(H)X720(V) Compression format MJPEG / YUV2(YUYV) Resolution & frame MJPEG:320X240@ 30fps, 352X288@ 30fps640X360@60fps,640X480@ 30fps800X600@ 30fps,1280X720@ 30fps YUV: 320X240@ 30fps,352X288@ 30fps640X360@30fps,640X480@ 30fps800X600@ 15fps,1280X720@ 5fps S/N Ratio 40dB Dynamic Range 69dB Sensitivity 3.7V/lux-sec@550nm Mini illumination 0. 1lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB2.0 High Speed Free Drive Protocol USB Video Class(UVC) Support OTG Protocol USB2.0 OTG AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure Lens Parameter Standard M7 LENS FOV(D)150 (H)120 Degree LED board power connector Support 2P-2.0mm socket Power supply USB BUS POWER 4P-2.0mm socket Power supply DC5V Operating Voltage 120mA~180mA Working current -10~70C Working temperature -20~85C Board size /Weight 32X32mm(Compatible 26X26mm)/ about 30g Cable Standard 1M Operating system request Win7 Win8,Mac os, Linux 2.6 or above,Android 4.0 or above.
No technical specifications available.
