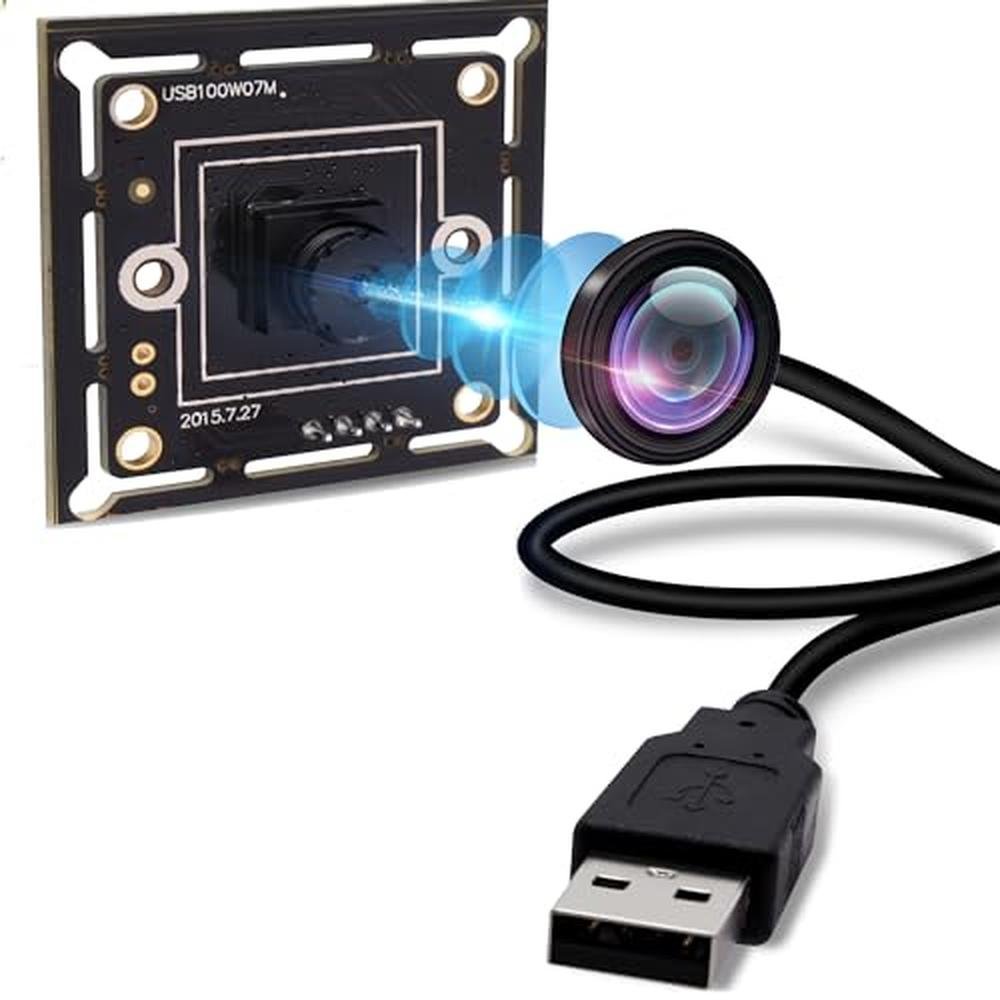

Camera Module | IFWATER 720P USB Super Mini 45-Degree M7 Low Distortion Lens | Plug-and-Play for Raspberry Pi, Arduino, ESP32

Product Description

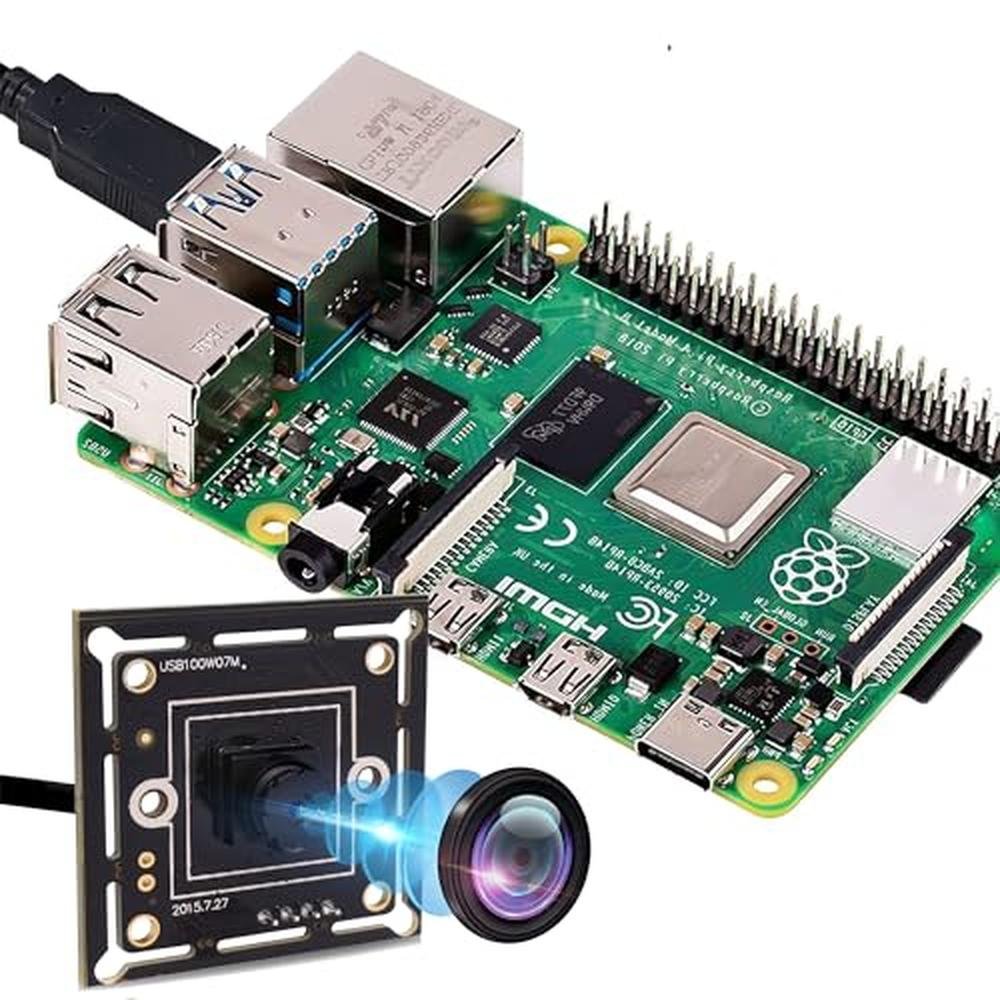

The IFWATER 720P USB Camera Module is a premium, high-end camera solution designed for various applications, including Raspberry Pi, Arduino, and ESP32 projects, offering excellent image quality and fast data transfer with its 45-degree M7 low distortion lens and USB 2.0 high-speed interface. Ideal for CCTV, PC camera, and drone applications, this camera module is plug-and-play compatible with Windows, Linux, Mac OS, and Android operating systems. With its superior image quality and fast data transfer, this camera module is perfect for projects that require a reliable camera module for Raspberry Pi, Arduino, or ESP32.

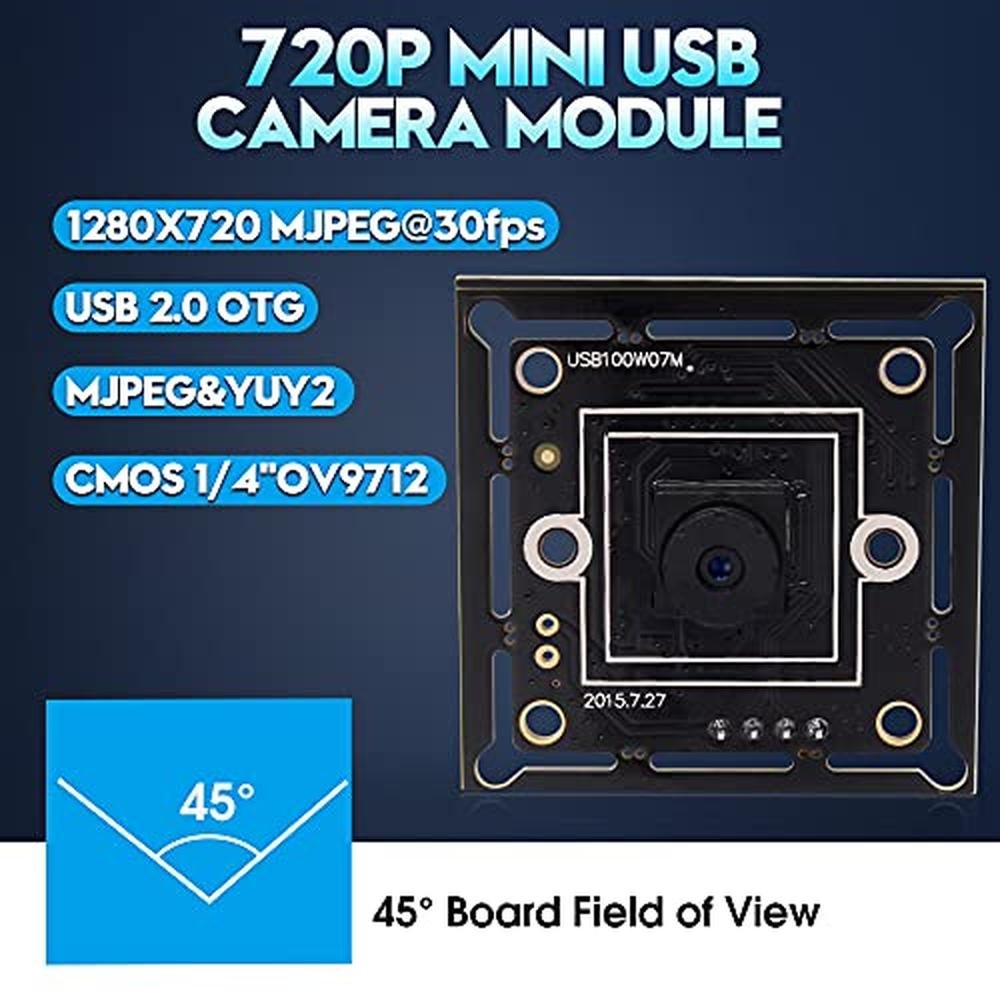

Specification: Sensor OV9712, Lens Size 1/4 inch, Pixel Size 3.0um X 3.0um, image area 3888m x 2430m, Max. Resolution 1280(H)X720(V), Compression format MJPEG / YUV2(YUYV), Resolution & frame MJPEG: 320X240@ 30fps, 352X288@ 30fps, 640X360@60fps, 640X480@ 30fps, 800X600@ 30fps, 1280X720@ 30fps, YUV: 320X240@ 30fps, 352X288@ 30fps, 640X360@30fps, 640X480@ 30fps, 800X600@ 15fps, 1280X720@ 5fps, S/N Ratio 40dB, Dynamic Range 69dB, Sensitivity 3.7V/lux-sec@550nm, Mini illumination 0.1lux, Shutter Type Electronic rolling shutter / Frame exposure, Connecting Port type USB2.0 High Speed, Free Drive Protocol USB Video Class(UVC), Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure, Lens Parameter Standard M7 LENS FOV(D)138 (H)100 Degree, LED board power connector Support 2P-2.0mm socket, Power supply USB BUS POWER 4P-2.0mm socket, Power supply DC5V, Operating Voltage 120mA~180mA, Working current -10~70C, Working temperature -20~85C, Operating system request Win7 Win8, Mac os, Linux 2.6 or above, Android 4.0 or above
