Camera IFWATER | IFWATER USB Camera Module 100 Degree No Distortion Lens | High Speed 60fps Industrial Machine Vision Solution

Product Description

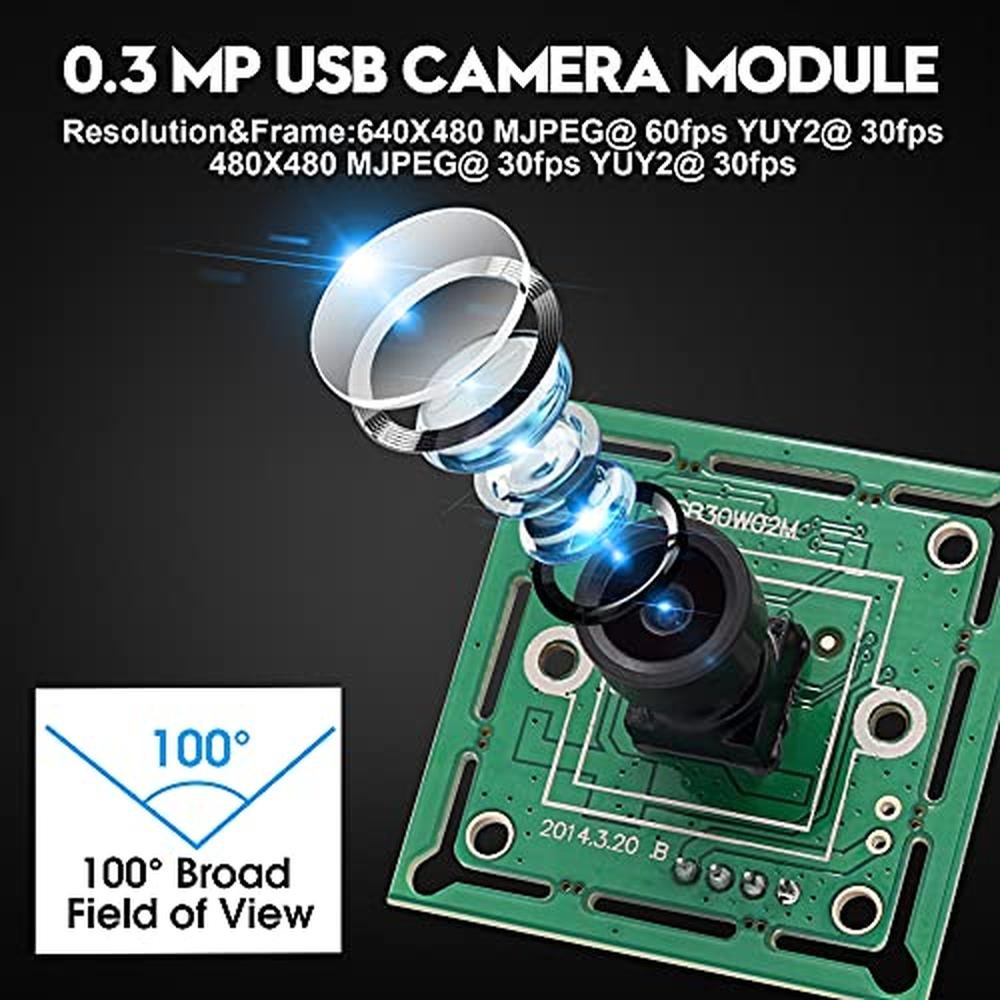

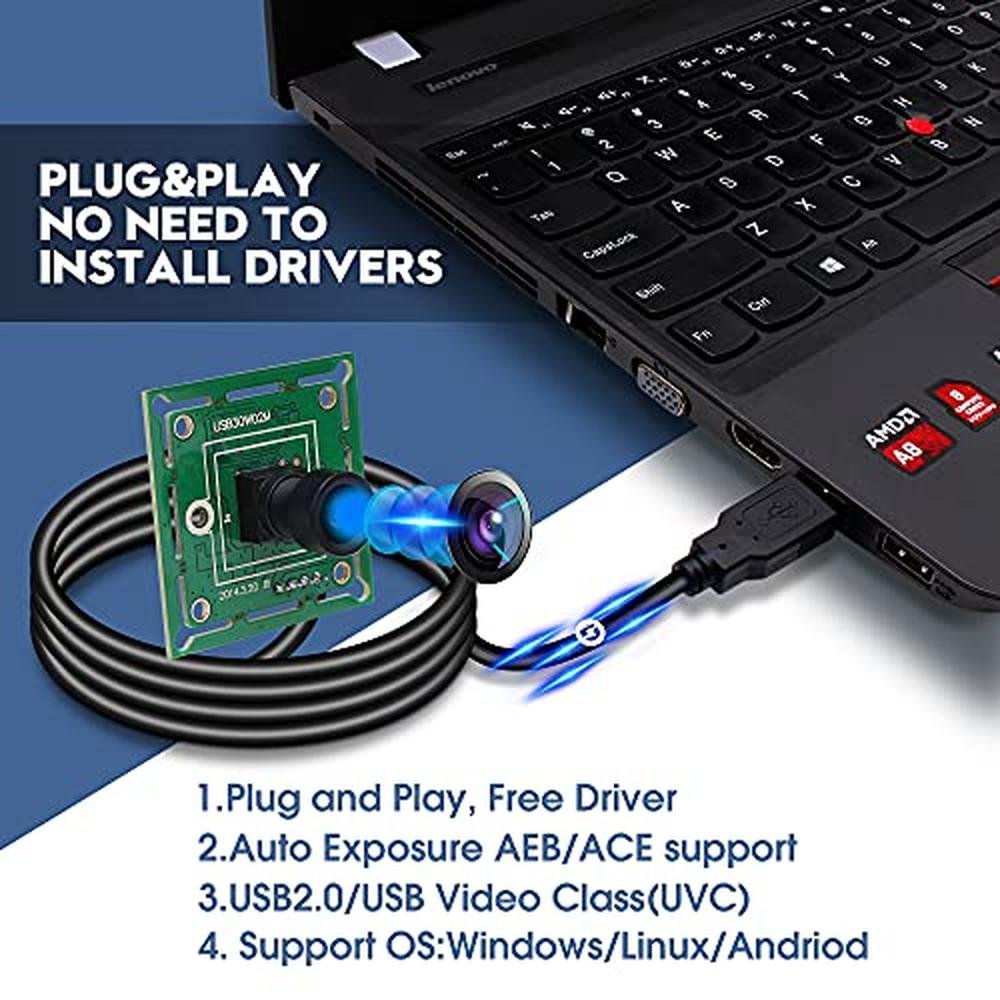

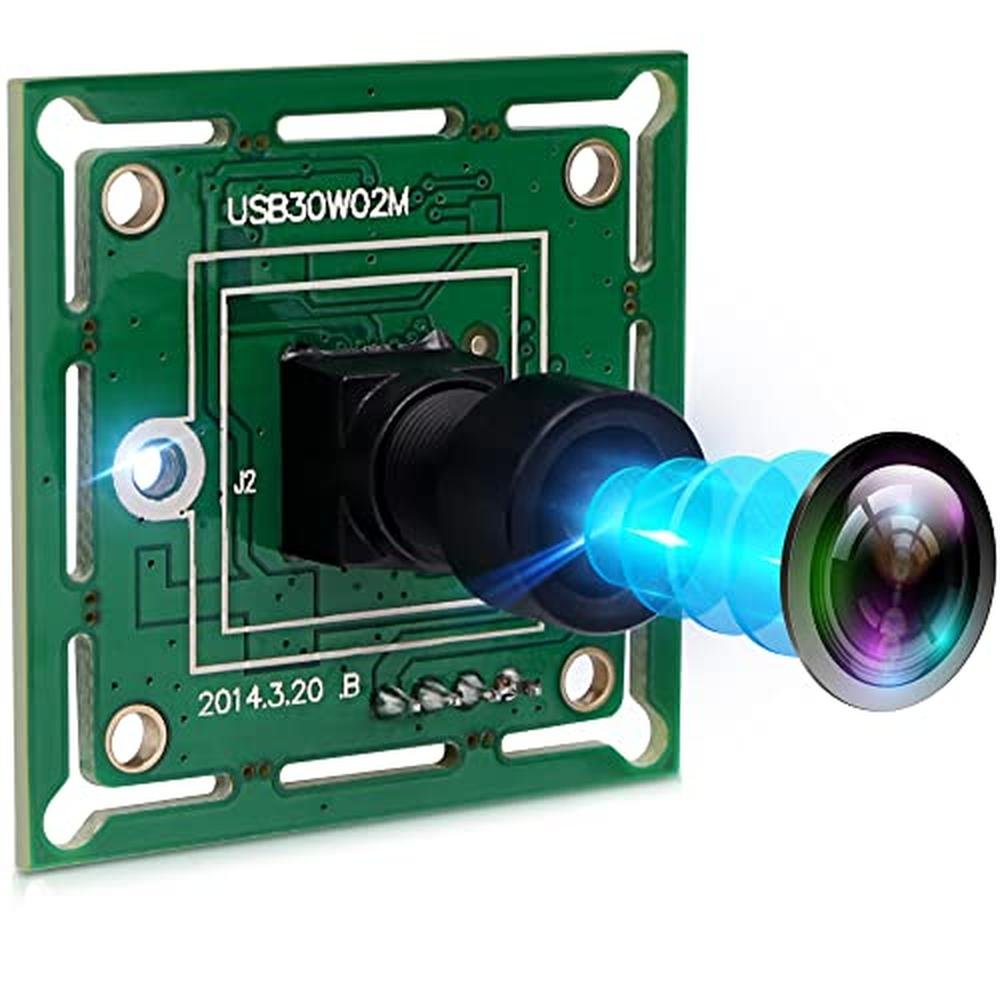

Experience high-quality video capture with the IFWATER USB Camera Module, a top choice among industrial machine vision solutions. As a leading camera model, this mini webcam boasts a 100-degree no-distortion lens, ensuring accurate and wide-angle views. With its high-speed capability of 60fps, this camera is ideal for applications requiring smooth and detailed video feed. Compatible with most operating systems, including support for Raspberry Pi and Jetson Nano, this 10.2-inch webcam is versatile and easy to integrate. The included 3.3ft/1m cable provides convenient connectivity, making it a reliable choice for various industrial and machine vision applications.

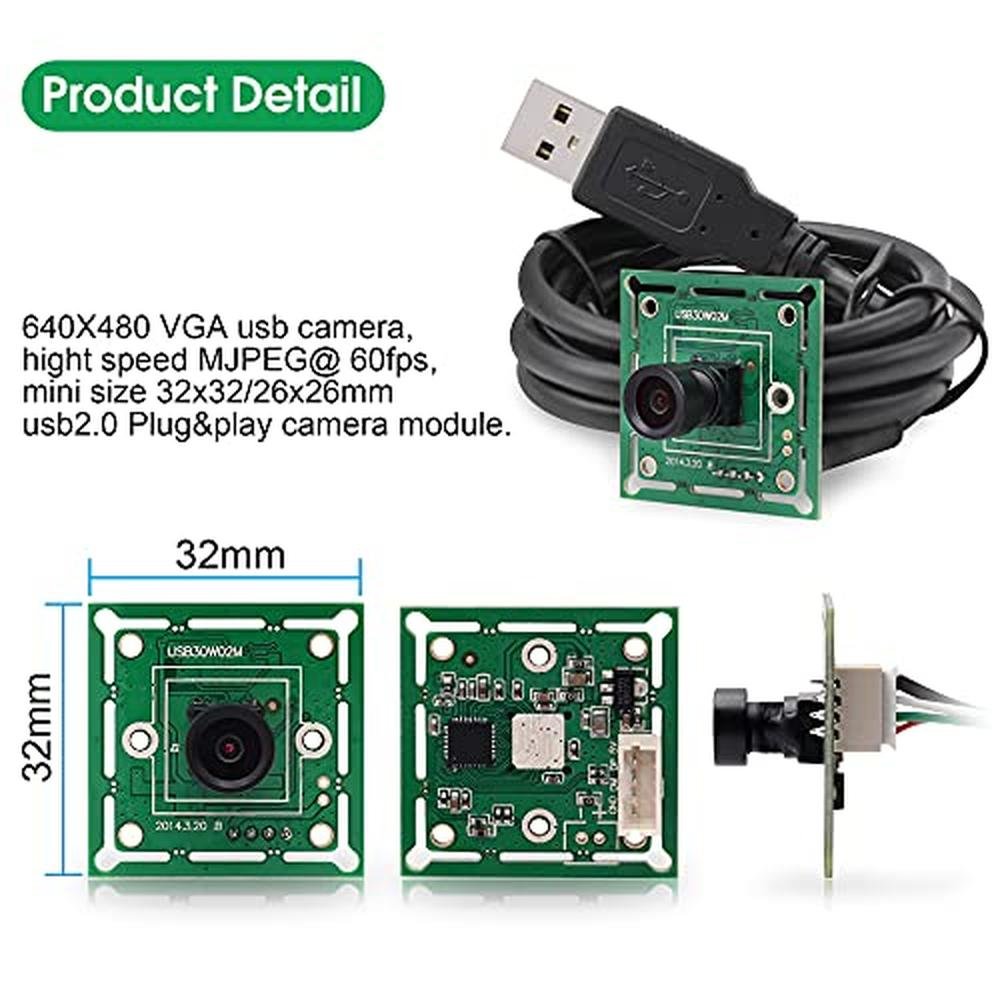

Specification: Sensor: CMOS OV7725 Lens Size 1/4 inch Pixel Size 6.0um X 6.0um image area 3984 m x 2952 m Max. Resolution 640(H)X480(V) Compression format: MJPEG / YUV2(YUYV) Resolution & frame: 640X480 MJPEG@ 60fps YUY2@ 30fps 480X480 MJPEG@ 30fps YUY2@ 30fps 450X450 MJPEG@30fps YUY2@ 30fps 352X288 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@ 30fps 240X240 MJPEG@ 30fps YUY2@ 30fps S/N Ratio 50dB Dynamic Range 60dB Sensitivity 3.8V/lux-sec@550nm Mini illumination 0. 2Lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB2.0 High Speed Free Drive Protocol USB Video Class(UVC) Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma White balance, Backlight Contrast, Exposure Night vision Need to equipped IR Sensor Lens and IR LED Board LED board power connector Support 2P-2.0mm socket Power supply USB BUS POWER 4P-2.0mm socket Power supply DC5V Operating Voltage 100mA~160mA Working current -10~70C Working temperature -20~85C
