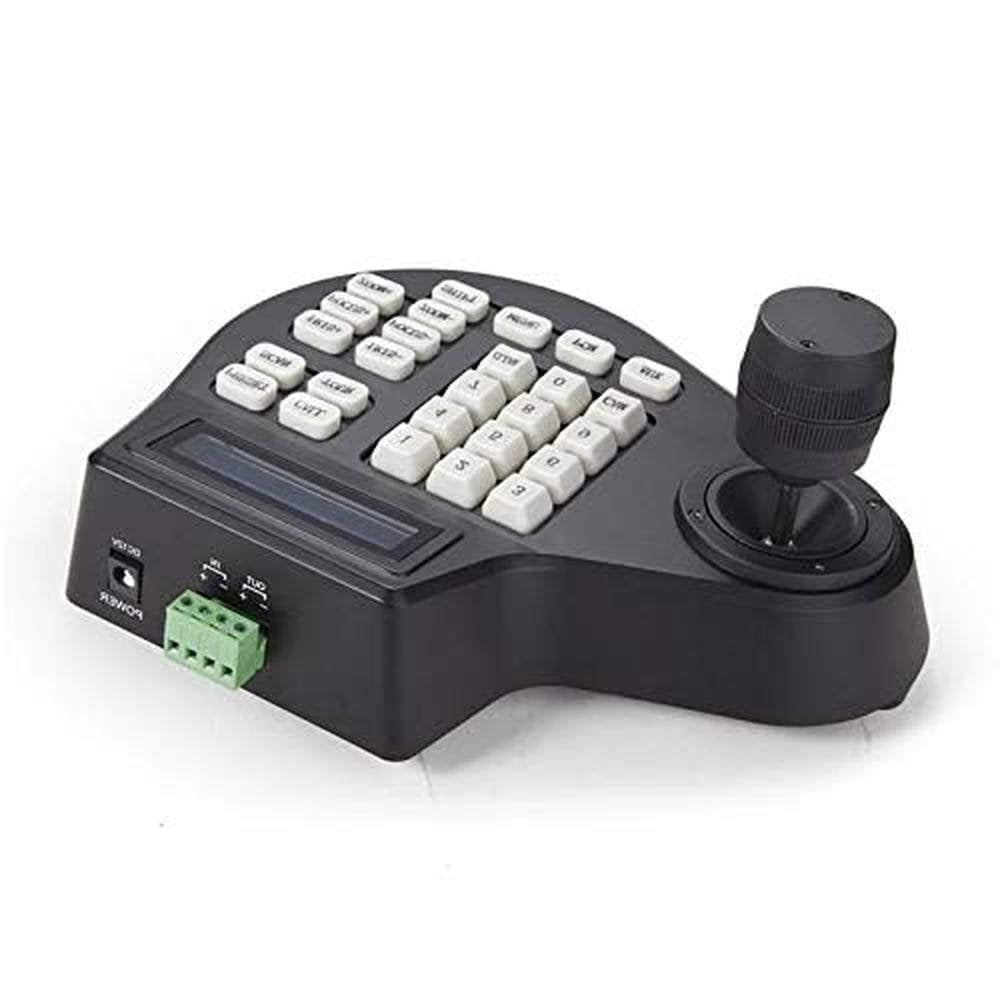

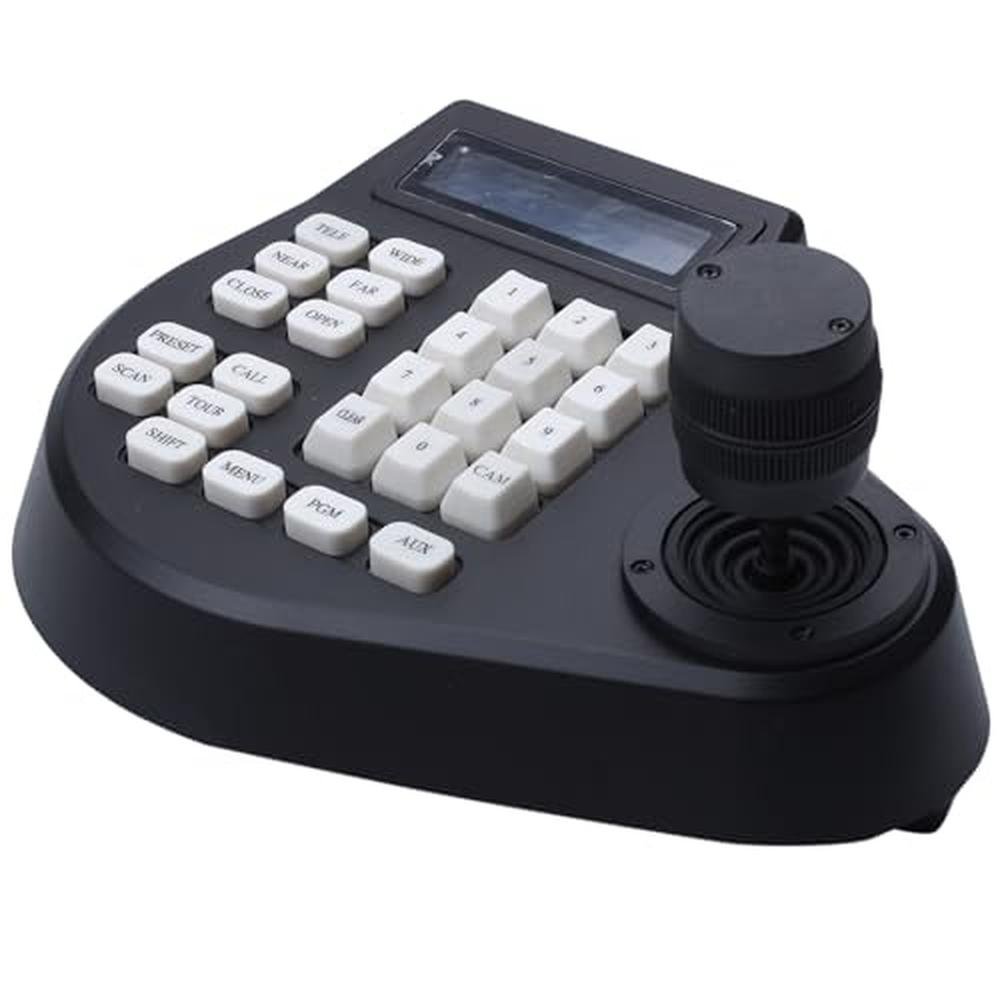

EVERSECU Mini Analog PTZ Camera Keyboard with 4D Joystick, PTZ Speed Dome Camera Controller with RS485 Input

Product Description

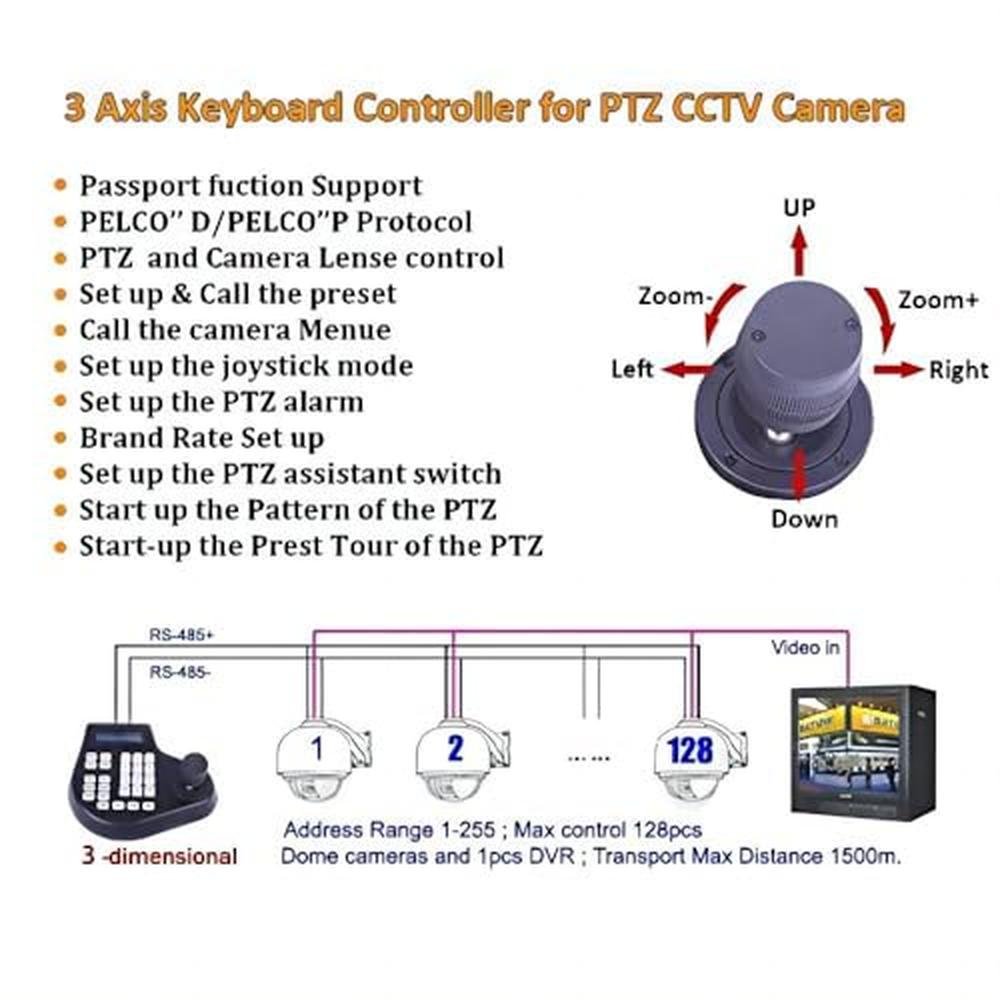

The keyboard controller can control AHD TVI CVI CVBS Analog high speed dome cameras, slow dome camera, zoom camera, decoders, etc. The electric outlet between the controlling keyboard and the receiving terminal is EIA RS 485, which enables the keyboard to control as many as 128 dome cameras or other terminals within a maximal communication range of 1.5 Km. If you re looking for the PTZ Cameras that work with this PTZ keyboard, Please search ASIN B0CFFNVZ3Z, B07GSXN98H, B07K3TYYRJ, B09H7D64D2 Product introduction 1. Baud rate 1200bps,2400bps,4800bps,9600bps,19200pbs,38400pbs 2. Protocol Pelco-D ,Pelco-,SAMSUNG 3. Communication RS-485 4. Power input DC 12V -1A 5. Communication distance max 1500m 6. Can control max 128pcs speed domes 7. Password setufunction 8. Ambient Temperature 0 celsius degree 60 celsius degree 9. Relative Humidity 90 RH 10. Dimension 205mm 168mm 48 mm Description of Main Functions The main functions of the keyboard include 1. The keyboard output adopts photoelectric insulated 485 control, which provides strong anti-jamming and long-range transmission. 2. The range for dome camera or decoder address setu1 255. 3. Variable-speed operation can be applied to the built-in dome of the high speed dome camera. 4. Pre-set positions can be setuand previewed in the high speed dome camera. 5. Uto four tour routes can be setuand previewed in the high speed dome camera, with each tour having a maximum of 16 pre-set positions, dwell time and speed for each pre-set position programmable. 6. The high speed dome camera can be manually automatically controlled. 7. Lens zoom ratio, focus and iris can be manually controlled. 8. More than one terminals, such as dome cameras and decoders, can be controlled.
