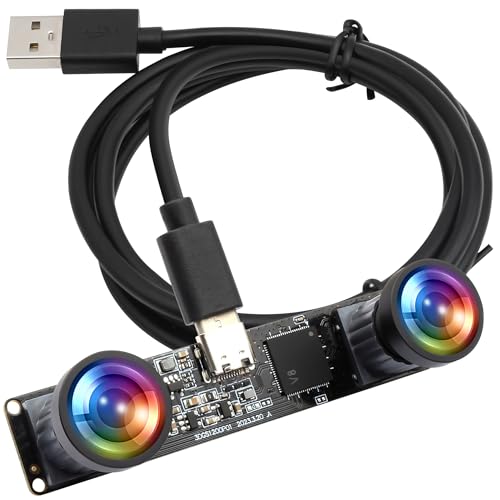

120fps Global Shutter USB Camera Module - Dual Lens 3D Stereo Synchronization Webcam for Computer - High Speed 1200P 60fps Binocular PC M12 UVC USB2.0 VR Wide Angle 100 Industrial

Product Description

Experience high-speed imaging with our 120fps global shutter USB camera module, designed for applications requiring precise synchronization and fast frame rates. This dual-lens 3D stereo synchronization webcam is perfect for computer vision, robotics, and industrial inspections, offering a wide-angle view and high-resolution 1200P video at 60fps. With its global shutter technology, our camera module minimizes rolling shutter effects, ensuring crisp and clear images even in high-motion environments. Compatible with UVC USB2.0, this module is plug-and-play ready for easy integration into your project. Whether you're developing a VR application, analyzing golf swings, or creating industrial inspection systems, our 120fps global shutter camera module provides the high-speed imaging capabilities you need. The module features a high-quality OG02B10 sensor, 12.9 inch sensor size, and 4857µm x 3955 µm pixel size, allowing for maximum resolution of 3200(H)X1200(V) and default resolution of 3200(H)X1200(V). The compression format is MJPEG, and the resolution frame rate is adjustable, with options including 3200X1200 at 60fps, 2560X720 at 60fps, 1600X600 at 120fps, 1280X480 at 120fps, and 640X240 at 120fps. The sensitivity is 3.7Vlux-sec at 550nm, and the minimum illumination is 0.1 Lux. The shutter type is global shutter, and the connecting port type is USB2.0 high speed. The module also supports free drive protocol USB video class (UVC), OTG protocol USB2.0 OTG, AEC support, and AWB support. Adjustable parameters include brightness, contrast, saturation, hue, sharpness, gamma, gain, white balance, backlight contrast, and exposure. The lens parameter is M9 lens, and the power supply is USB bus power type-C. The operating voltage is DC 5V, and the working current is 180mA-230mA. The storage temperature is -20 to 85, and the working temperature is -10 to 60. The board size and weight are 80X16.5mm and about 45g, respectively. The cable standard is 1.2m, and the operating system request includes Win XP, Vista, Win7, Win8, Win9, Win10, Win11, Linux with UVC (above Linux-2.6.26), MAC-OS X 10.4.8 or later, and Android 4.0 or above with UVC.
