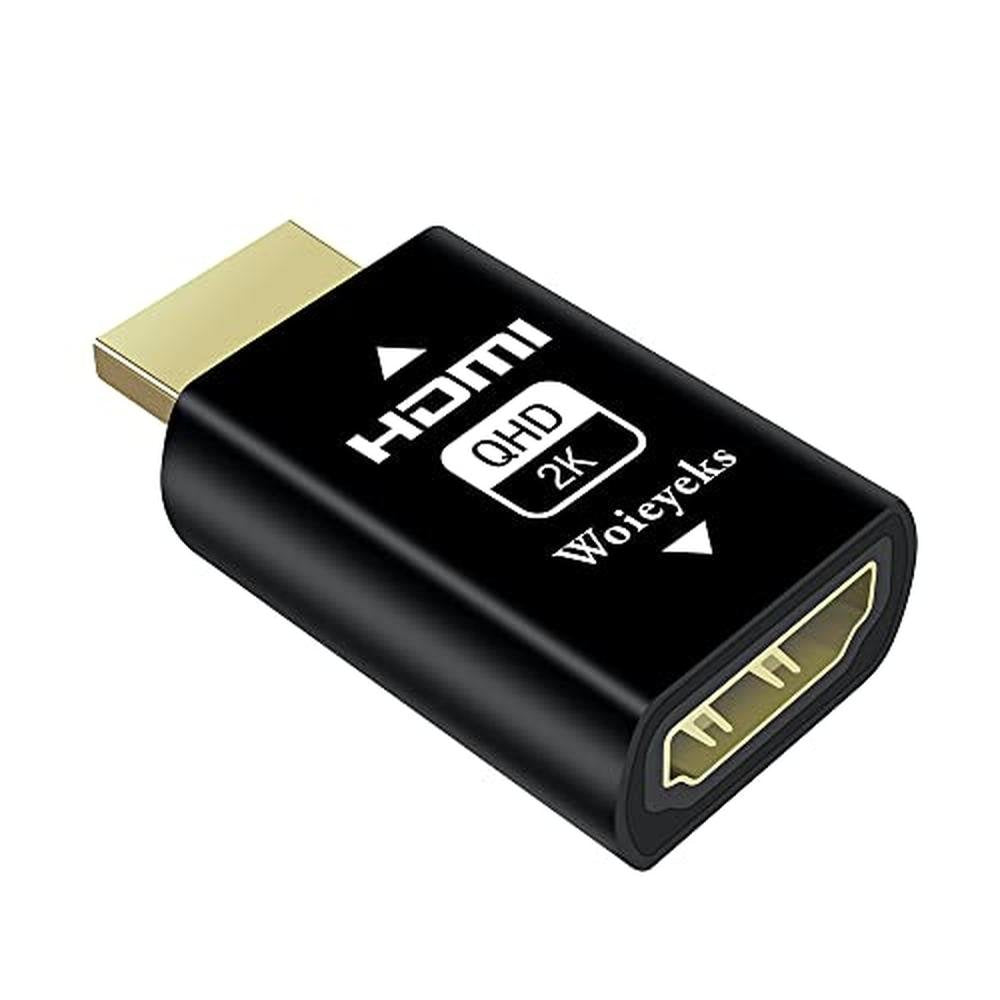

Woieyeks HDMI EDID Emulator Passthrough Adapter,Female Port Connected to an External Display,for Extender/KVM Switch/AV Receiver/Video Splitters Support 1920x1080@60(1 Pack)
(-22%)
Save 22%Brand: Woieyeks
Deliverable in 10+Business Days
Key Points

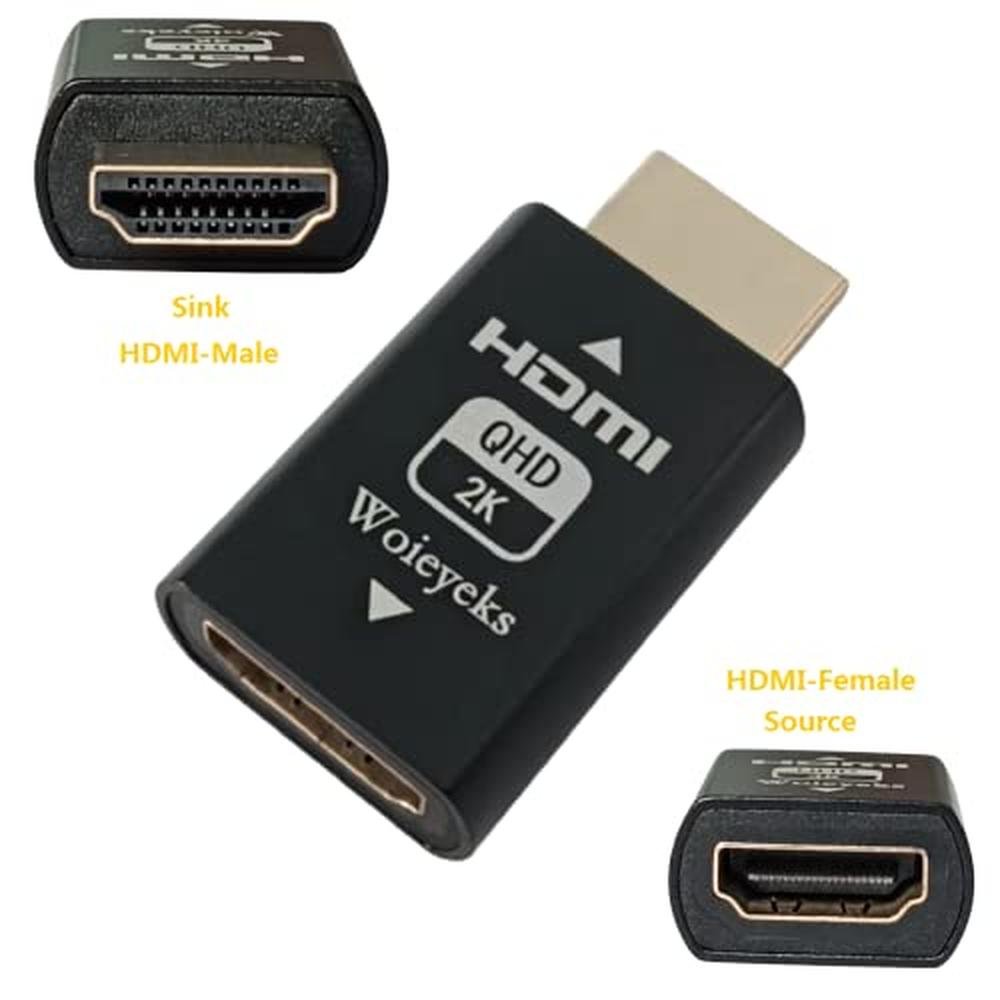

- Bi-directionar HDMI EDID emulator,Signal source can be male or female,chroma samplingYCbCr 4:4:4, 4:2:2, 4:2:0,RGB.audio dataLPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz.The resolution range640x480@60Hz~1920x1080@60Hz.The default resolution1920x1080@60Hz.
- Plug & Play-No drivers,no software, no powered,Support hot swap.Low power consumption.The setup is very simple, just plug it into the KVM inline with your computer's HDMI, and every time you switch the signal input in the KVM to another device, the Windows system won't reset the monitor.HDMI lock EDID solve a "loss of sync" issue with multiple HDMI displays.
- Even with the real monitor turned off or disconnected, the emulator will tell Windows that it's still connected and Windows won't try to rearrange the desktop. It actually works perfectly with a DP (displayport/USB C) to HDMI adapter and doesn't require extra power.
- The screen client that can stably connect to 1080p monitors is compatible with Mac mini, Raspberry Pi, NUC, Jetson Nano, keeping the monitor's EDID active when each device is accessing them remotely, works perfectly.
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description
Product Description:
1. The HDMI EDID emulator maximizes the communication between the video source and the HDMI display through the EDID emulator, and can pass the video signal losslessly, up to 1920x1080@60HZ, compatible with RGB and YCbCr, not compatible with HDCP.

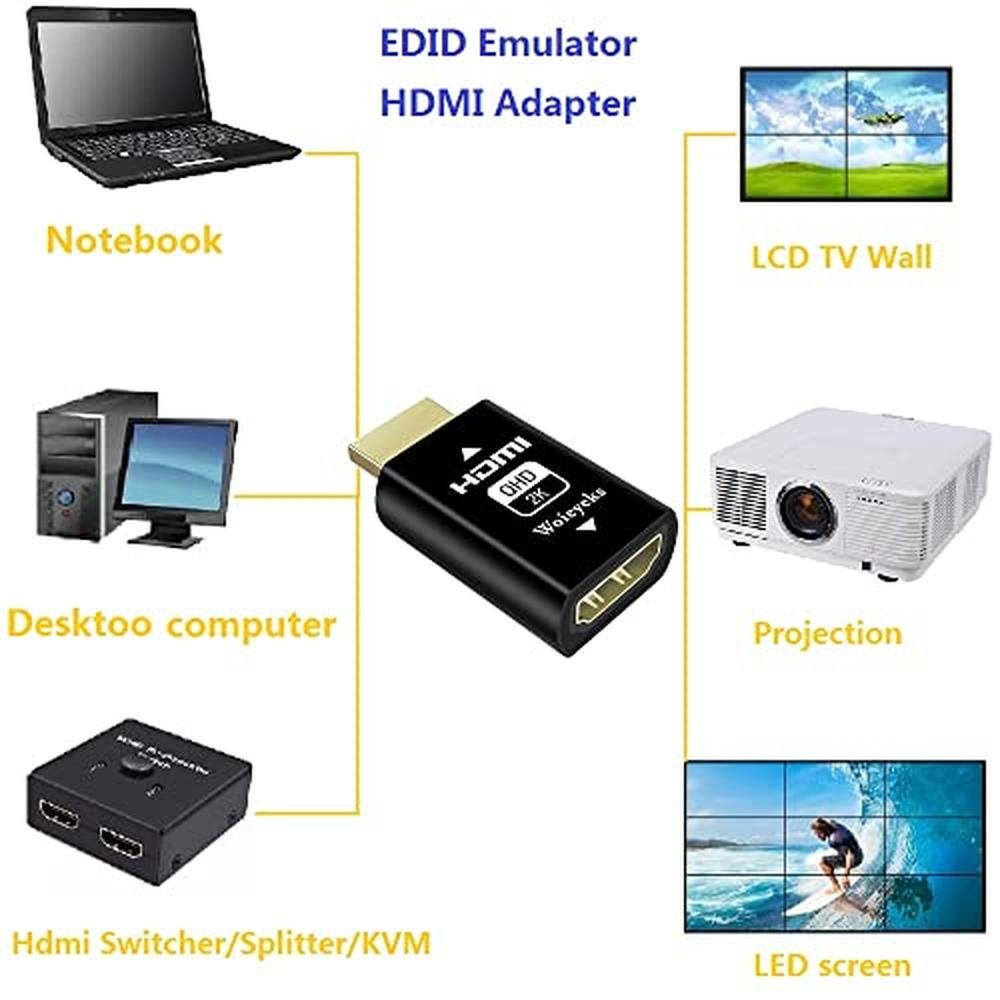

2. Can fix signal connection issues between video source and monitor (Display/Switcher/KVM), headless function to keep HDMI connection always active, prevent desktop rearrangement when monitor is turned off, and can fix other states EDID missing or confusing issues.
Supported resolutions:
1920x1080@60Hz (default)
1680x1050@60Hz
1600x1200@60Hz
1600x900@60Hz
1440 x 900@60Hz
1366 x768@60Hz
1280x800@60Hz
1280x720@60Hz
1024x768@60Hz
800x600@60Hz
Notice:4K resolution simulation requires HDMI 2.0 ports, RX460, GTX1050 or above (only supports single-computer graphics cards, not integrated graphics computers), and the resolution exceeding the GPU cannot be simulated.
Quantity: HDMI EDID Emulator Passthrough Adapter (1 pack).
Specifications & Details
| SKU | BMB0B7XJHRHB |
|---|---|

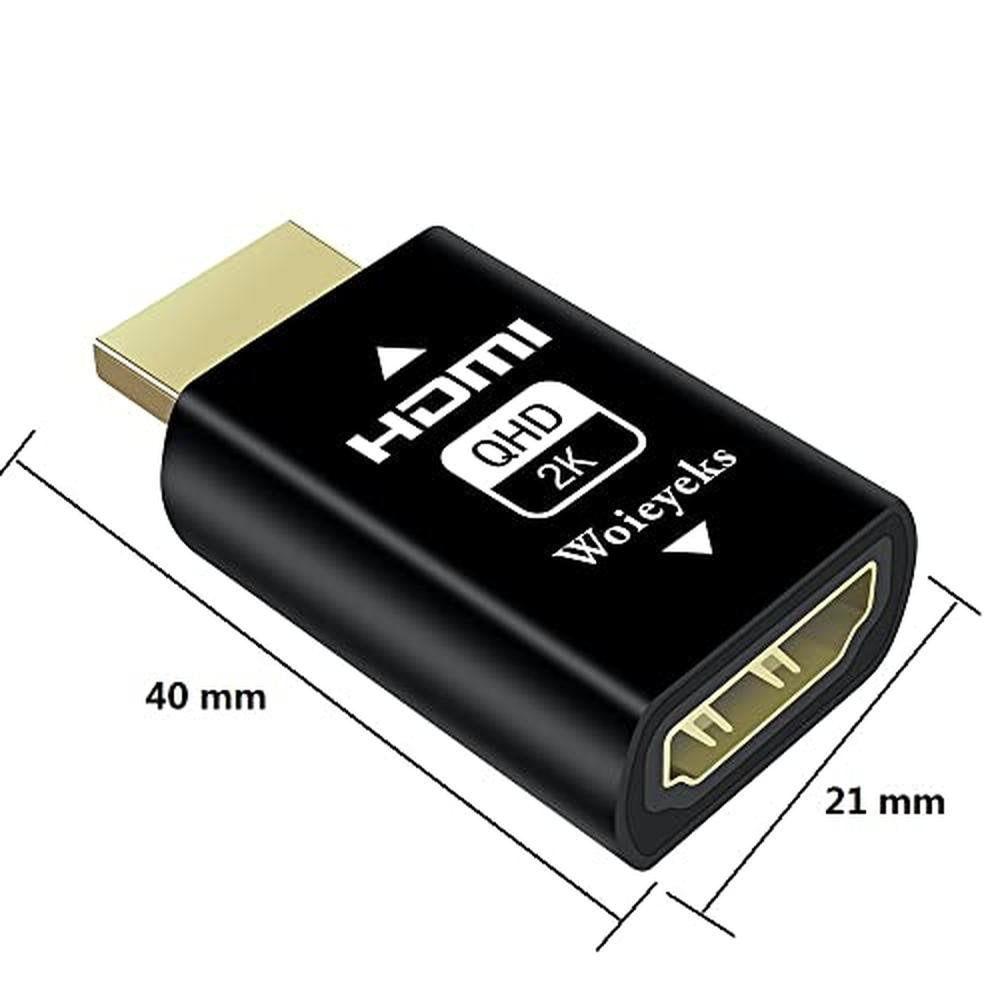

| Product Dimensions | 1.5 x 0.82 x 0.45 inches |
| Item Weight | 0.009 kgs |
| Item model number | 7db98d34-7532-4efb-9ad3-1dfcd54184b6 |
| Manufacturer | Woieyeks |
