Test UPC Code | D YEDEMC Mini-Pro 1310/1550nm SM OTDR Mulit-Function Tester | High-Performance UPC Connector with 24dB/22dB Dynamic Range

Product Description

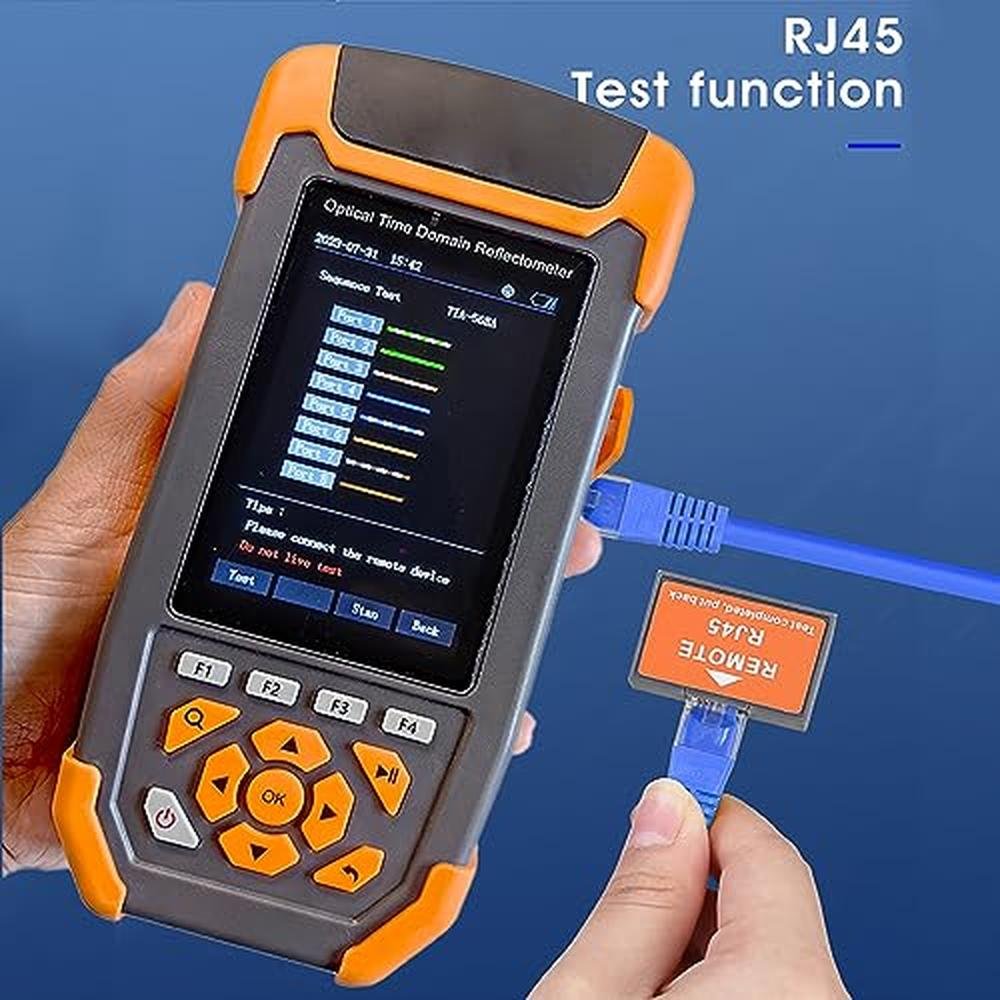

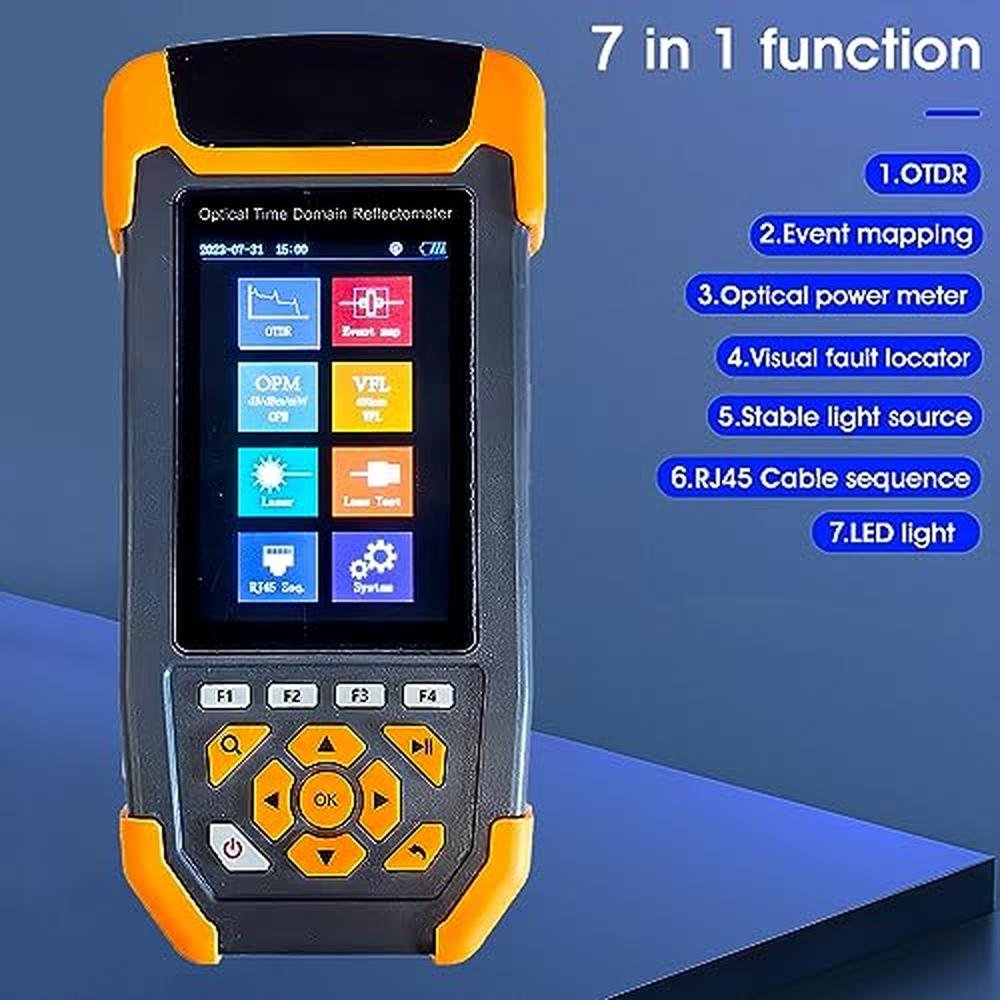

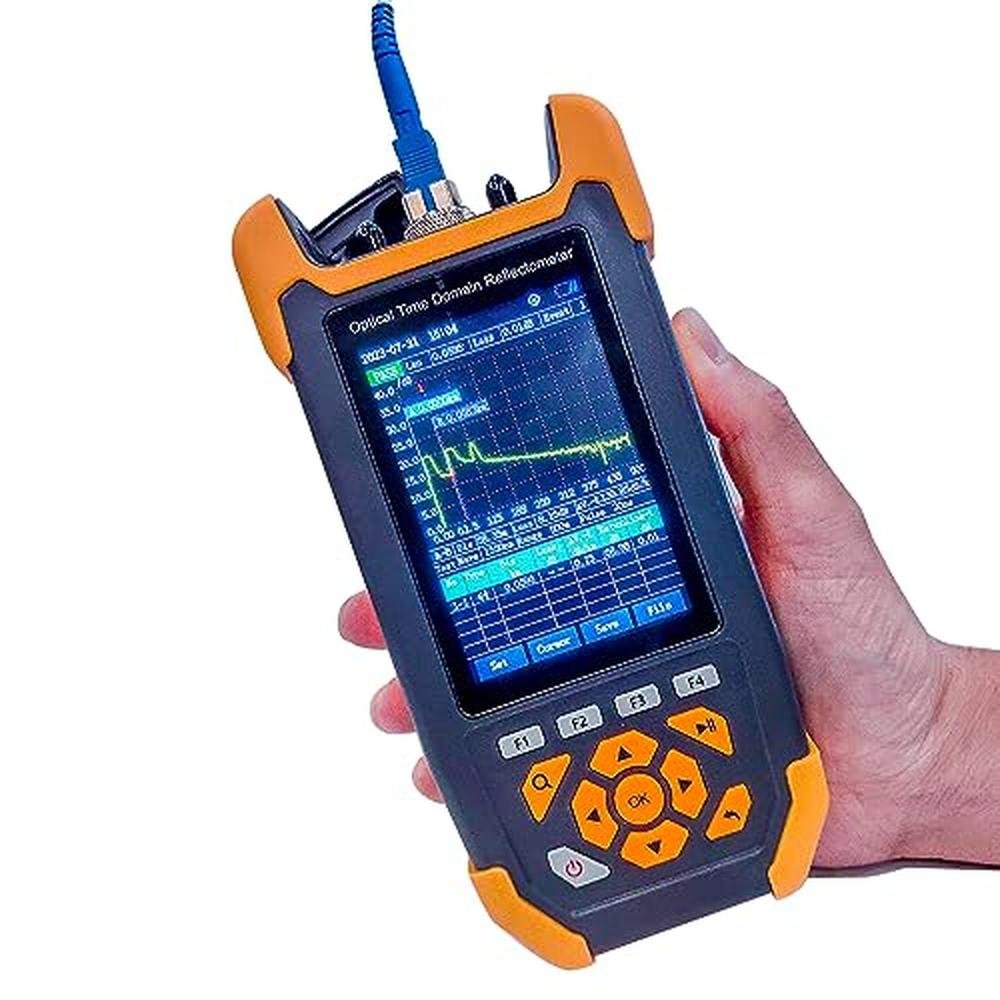

The D YEDEMC Mini-Pro 1310/1550nm SM OTDR Mulit-Function Tester is a premium, high-end tool designed for testing Universal Physical Connection (UPC) codes, among other functions. With its built-in Optical Power Meter (OPM), Optical Light Source (OLS), RJ45 test, and Visual Fault Locator (VFL) test capabilities, this device is ideal for technicians and engineers who need to ensure optimal network performance. The tester boasts a range of 5m-60Km and a dynamic range of 24dB/22dB, making it suitable for a variety of applications. The UPC connector features a Ultra Physical Contact (UPC) polish, ensuring reliable and accurate testing results. Whether you need to test UPC connections or verify the integrity of your network, this device is the perfect solution.

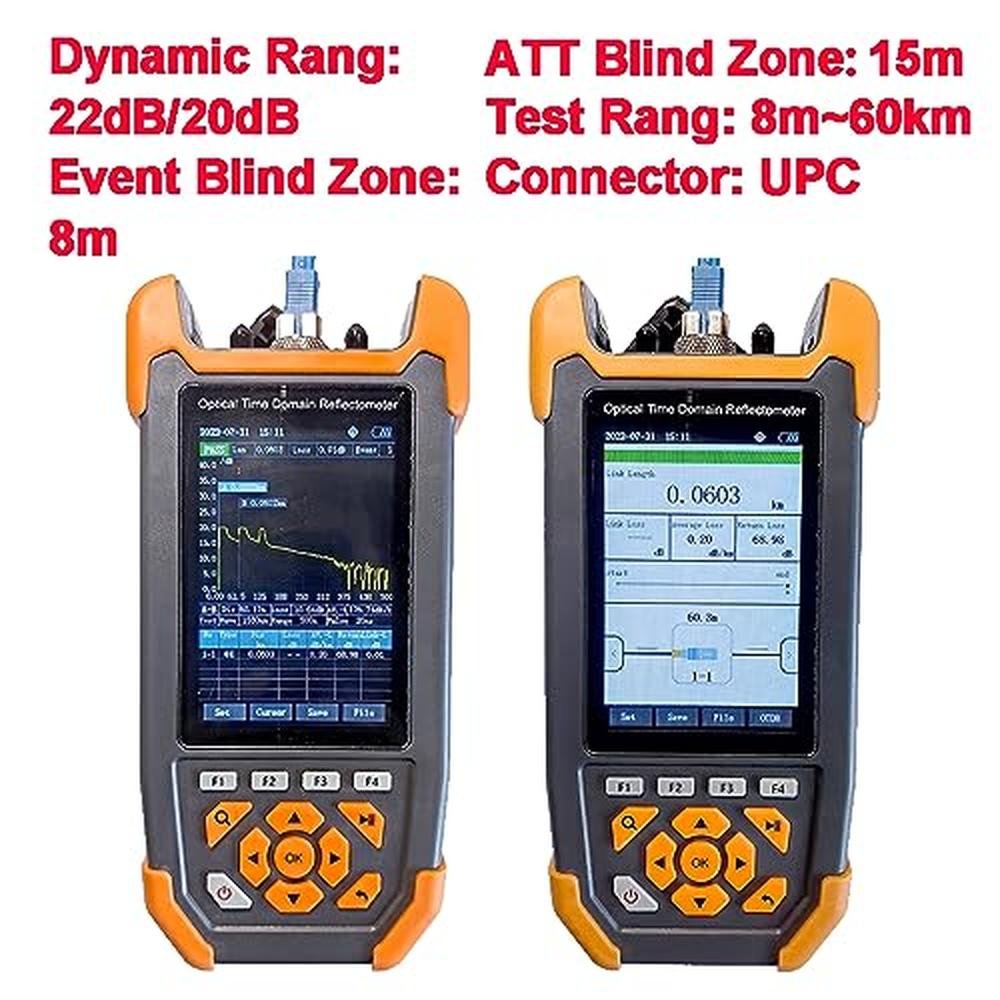

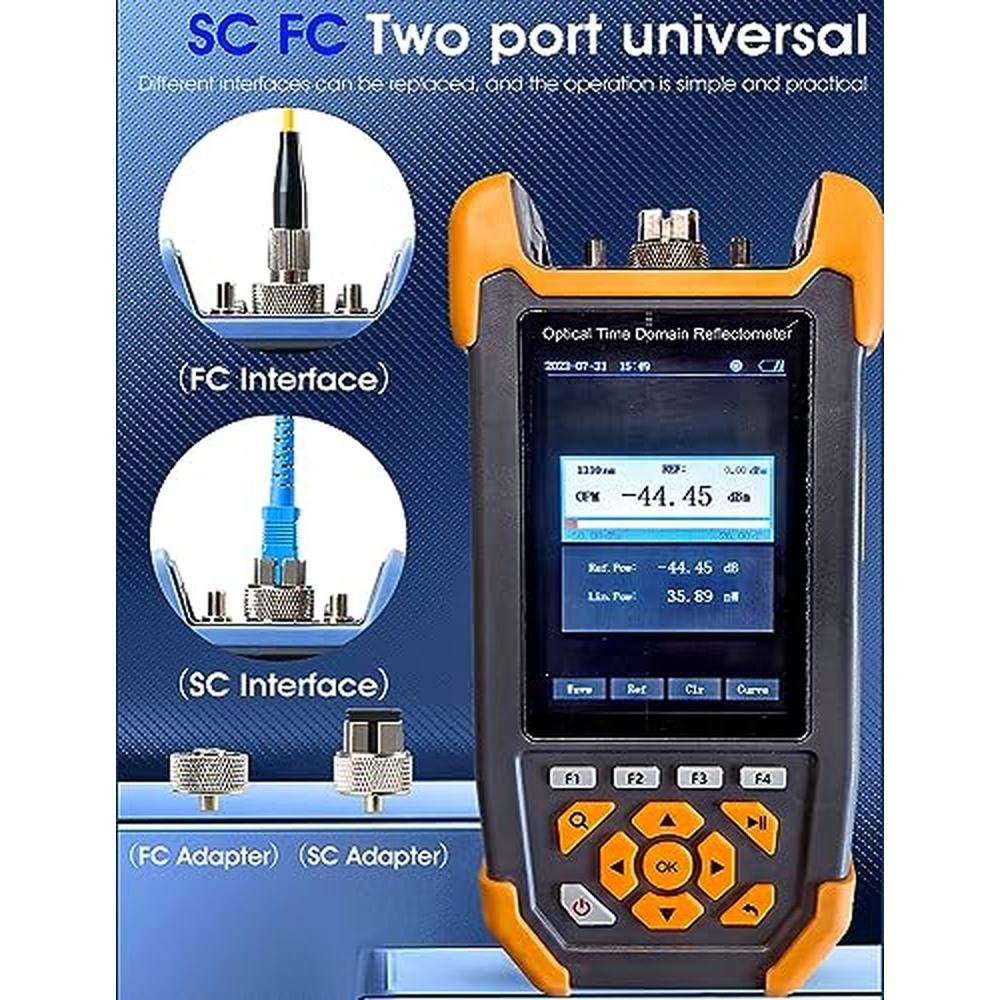

Technical Specifications: Mini-Pro OTDR Wavelength: 1310nm/1550nm, 20nm Fiber Type: G.652, Dynamic Range: 24dB/22dB, Event Blind Zone: 3m, ATT Blind Zone: 8m, Test Range: 5m~60km, Pulse Width: 3ns~10us, Ranging accuracy: (1m+ Sampling interval +0.005%Test distance), Loss accuracy: 0.05dB/dB, Sampling Points: 16k~128k, Sampling resolution: 0.05m~8m, Reflection accuracy: 3dB, Data Storage: Internal:600, External:TF Card, File format: SOR Standard file format, Connector: FC/UPC(Interchangeable SCST), Other Parameters: Display: 3.5 inch Color LCD, Data Interface: Micro USB, External storage: TF Card, Power Supply: Polymer Li-Battery:3.7V,4000mAh, Adapter:5VDC,2A, Battery Life: Standby>20h, Measuring time>12h, Operating Temperature:-10C~+50C, Storage Temperature: -40C~+70C, Relative Humidity: 0~95%Non Condensing, Size:173mm82mm37mm
