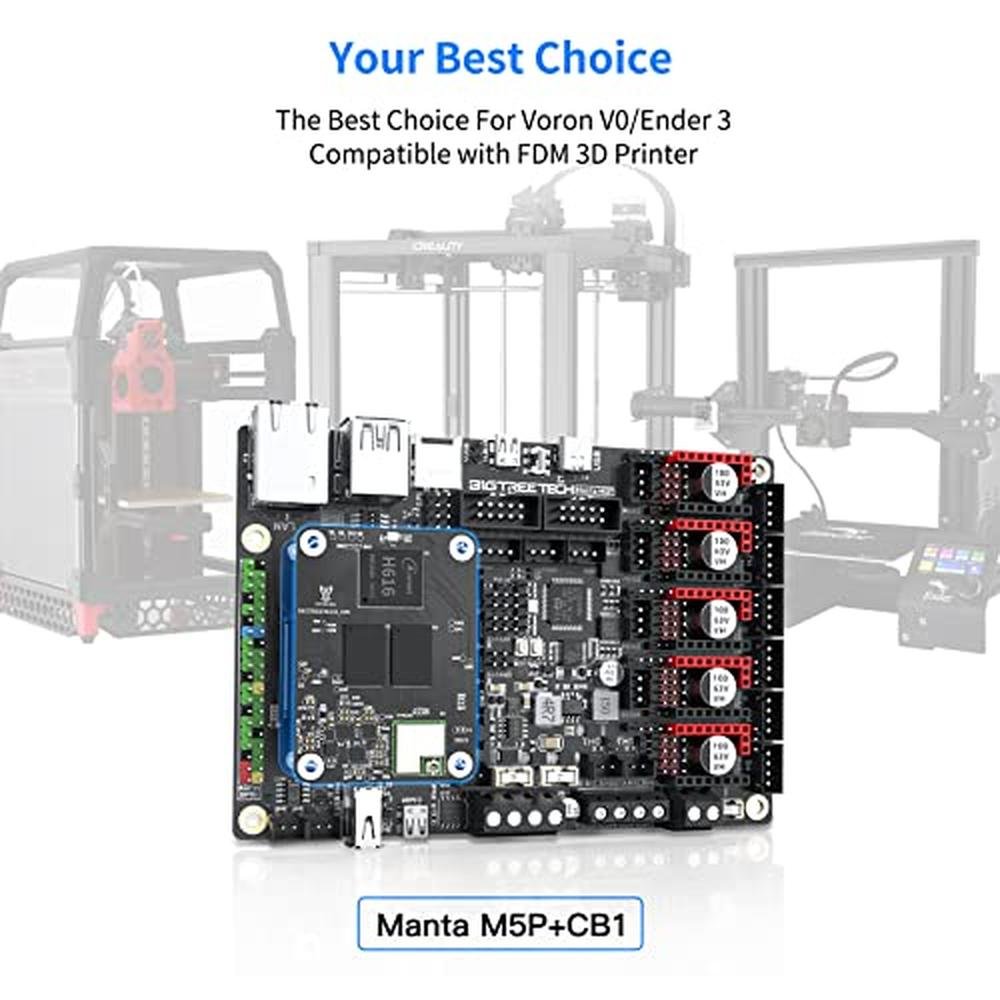

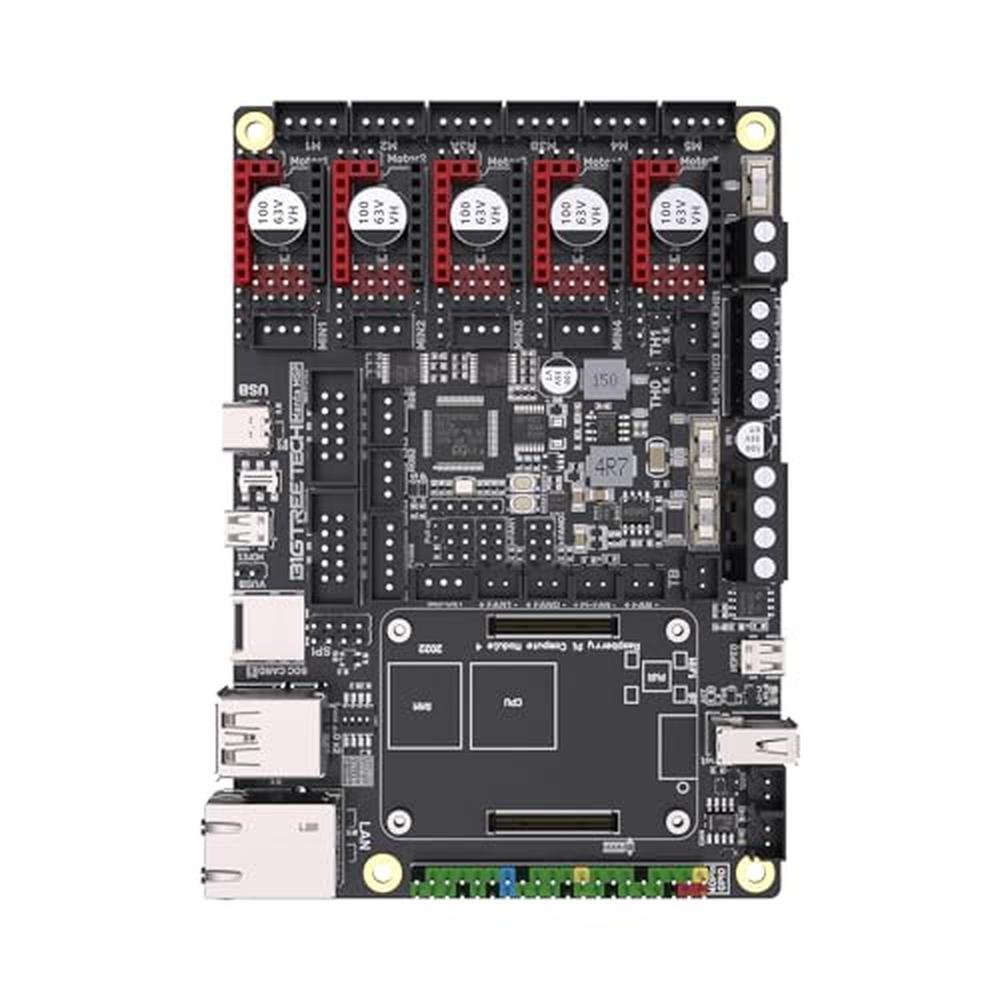

BIGTREETECH Manta M5P V1.0 Control Board 32Bit Support 5 Axis TMC2209 TMC5160 Drivers Compatible with CB1 CB2 CM4 HDMI5 PITFT50 TFT35 SPI Display to Running Klipper for Ender 3 Voron V0 FDM 3D Printer
(-29%)
Save 30%Brand: BIGTREETECH
Deliverable in 10+Business Days
Key Points
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

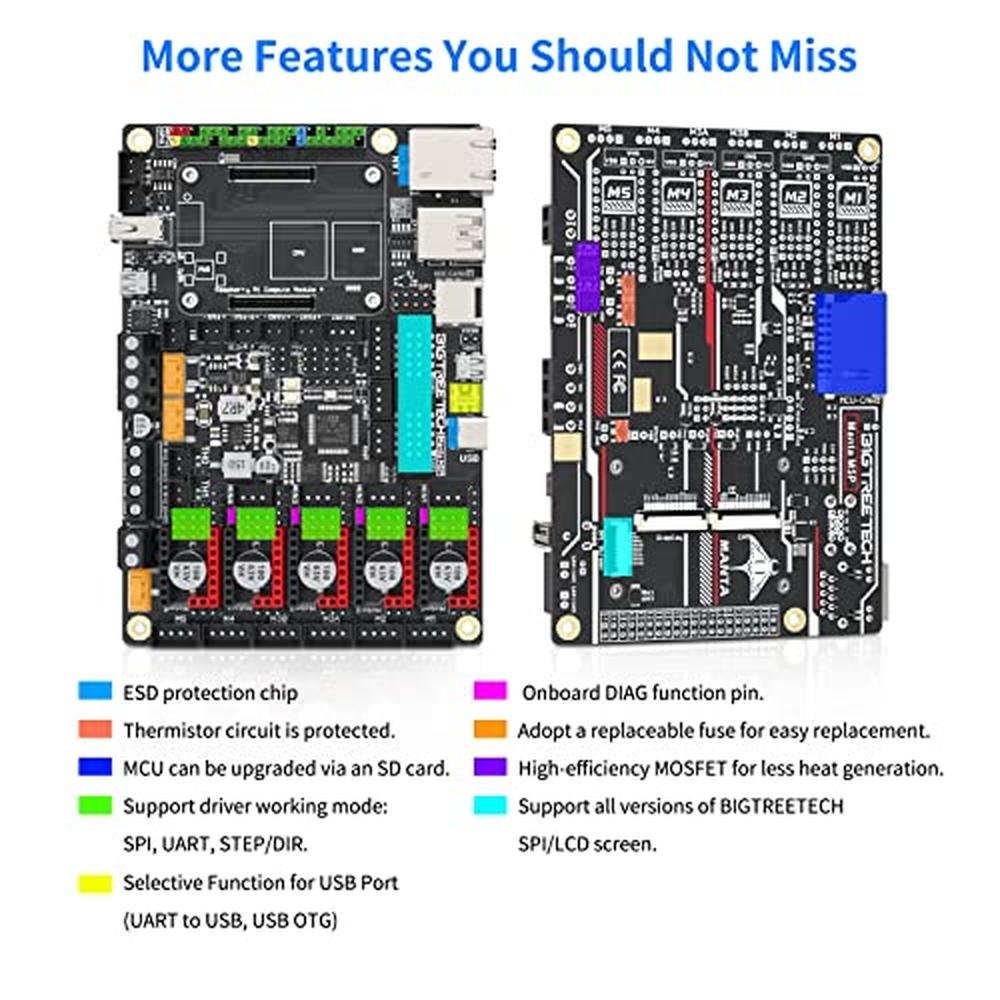

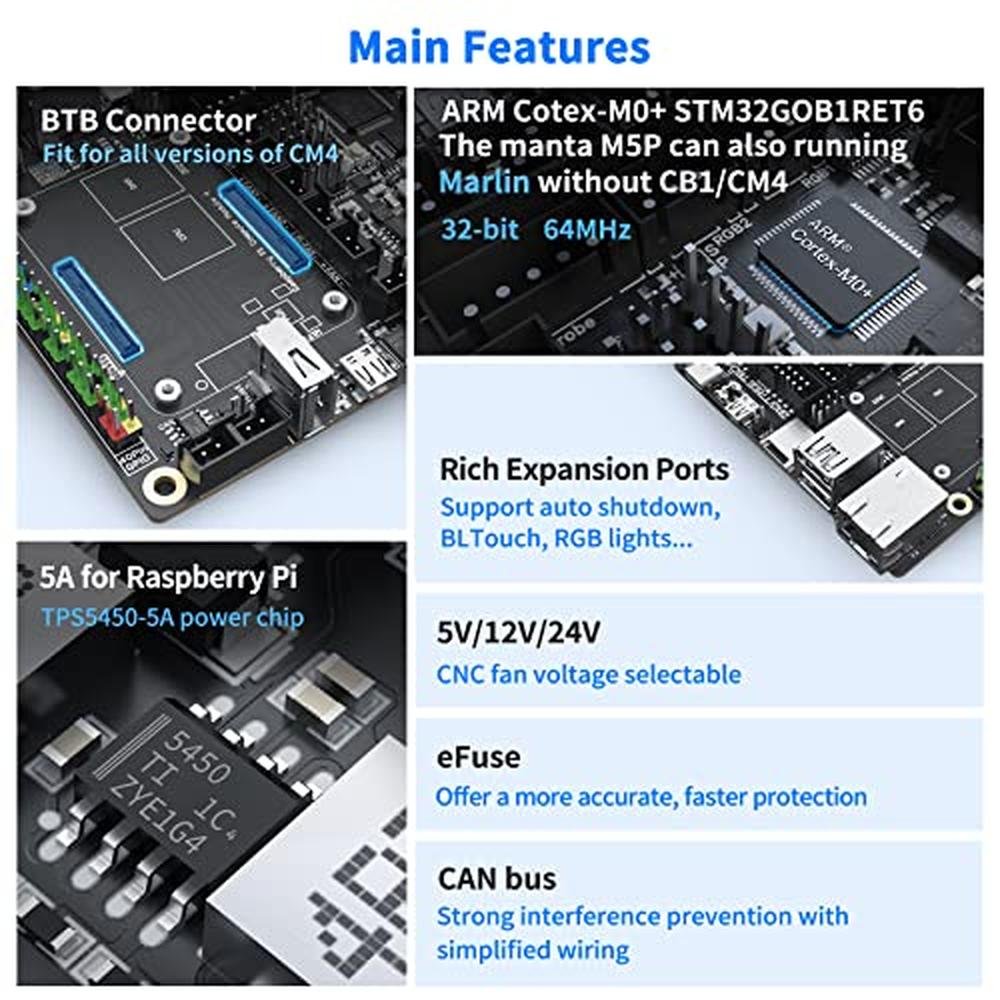

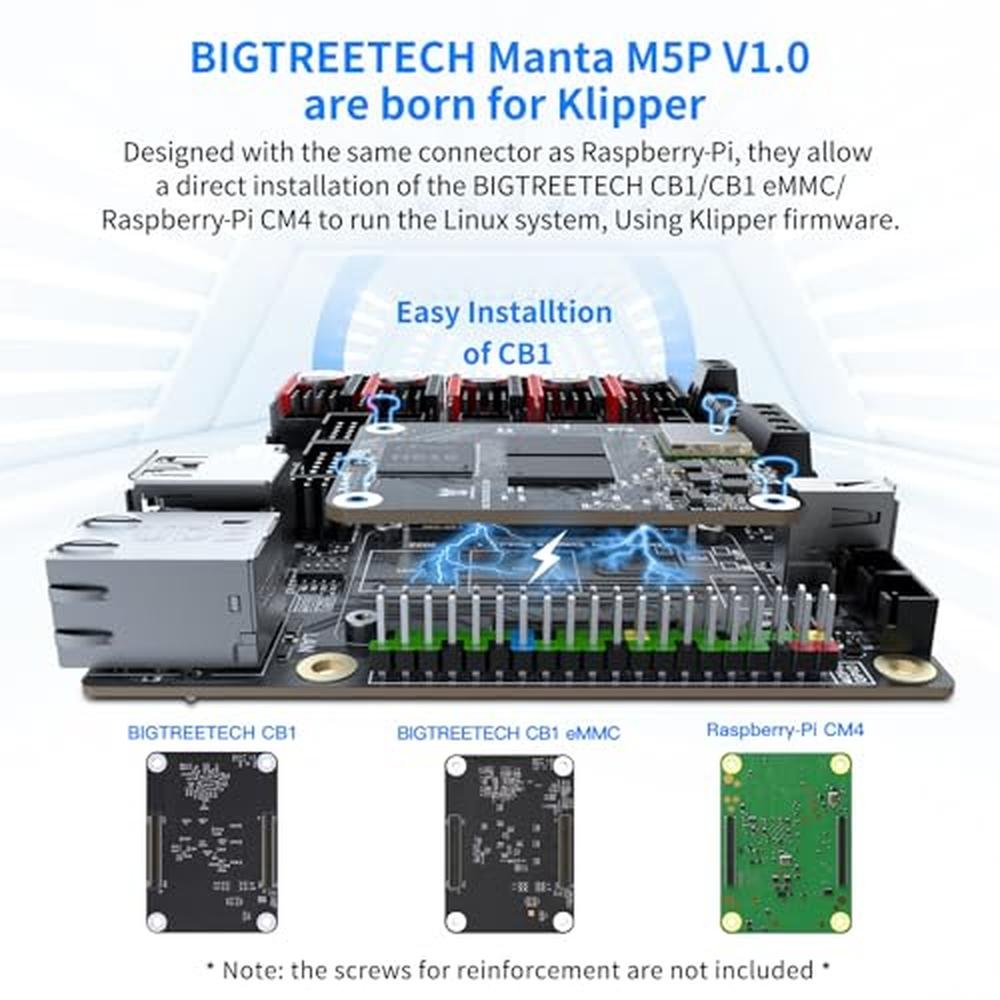

BIGTREETECH Manta M5Control board Product Introduction BIGTREETECH Manta M5is a 32-bit motherboard developed by the 3D printing team of Shenzhen Big Tree Technology Co.,Ltd. for Klipper running.It can run Klipper with a core board,which greatly eliminates the mass wiring between the motherboard and Raspberry-Pi ,and also greatly saves space in the chassis.The BTheader sare designed on Manta M5P, so that customers can choose to use CM4 or other solutions, thus solving the insane shortage of Raspberry-Pi CM4. Main Features 1. 32bit 64MHz ARM Cortex-M0 series STM32G0B1RET6 MCU. 2. The thermistor circuit is protected to prevent MCU damage from shorted heated bed and heater cartridge connections. 3. The CNC fan s voltage is selectable in 24V, 12V, and 5V, no more need for external stepdown thus preventing board damage from user error. 4. Thermistor connection supports pull-uresistance value setting using jumpers, no more extra module needed for PT1000. 5. MCU firmware can be upgraded via an SD card, or use DFU via Klipper s make flash command. 6. BTconnectors are adopted between the motherboard and core board, allowing the choice of other core board solutions in addition to CM4. 7. Integrated SPI and UART mode of TMC driver and DIAG pin, easily configurable with jumpers. 8. Support filament runout sensor, BLTouch, RGB, etc. 9. Replaceable fuse for easy maintenance. 10. Onboard proximity switch port, support NPN and PNtype selection, (24V, 12V, 5V) voltage selection. 11. Onboard SPI interface for connecting acceleration sensor to enable Klipper s input shaping. 12. The new E-FUSE fuse is equipped, which can respond quickly, enhance self-protection ability, and greatly reduce the motherboard burnout caused by short circuits or ignition.
Specifications & Details
| SKU | BMB0C1TYD86S |
|---|---|
| Product Dimensions | 6.54 x 4.76 x 1.93 inches ; 0.372 kgs |
| Item model number | BIGTREETECH |
| Manufacturer | BIGTREETECH |
| Country of Origin | China |
