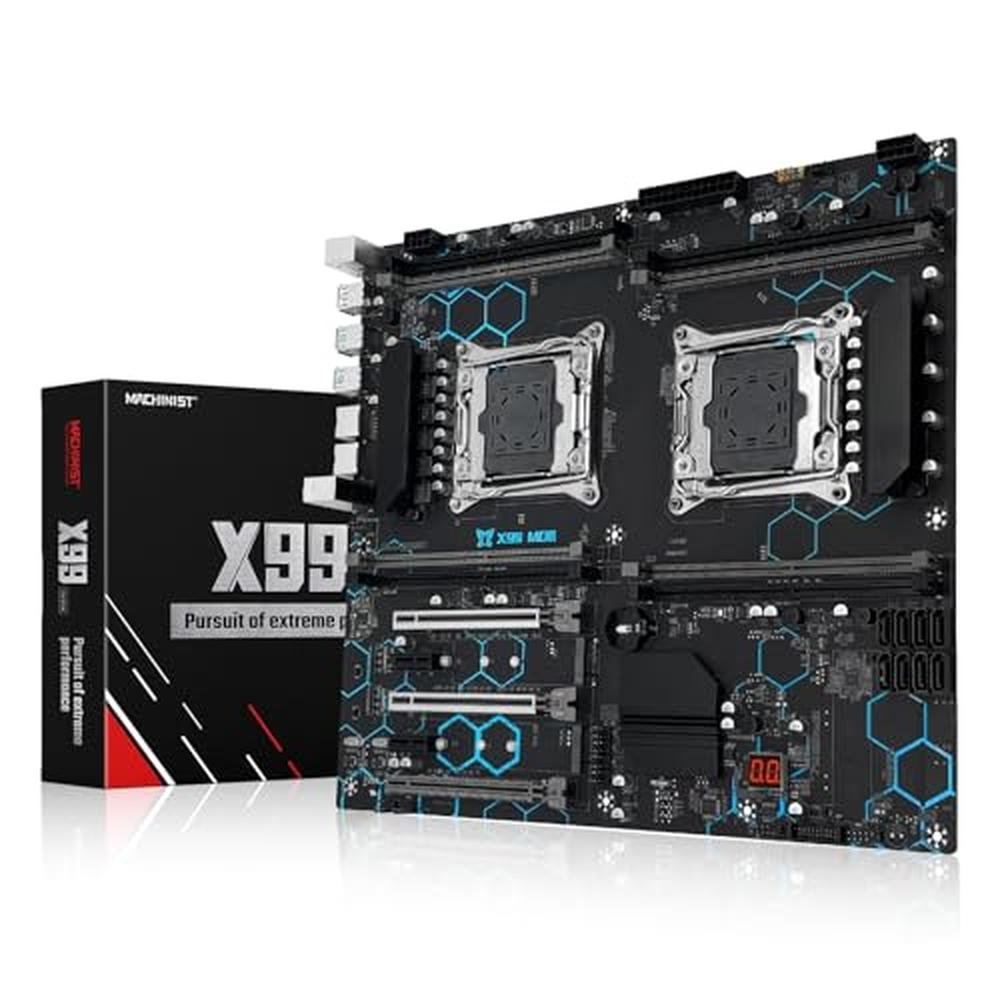

MACHINIST X99 Dual CPU Motherboard LGA 2011-V3, for Intel Xeon E5 v3 v4 CPU Processor, DDR4 Max Support 256GB, Gigabit LAN, PCIe 3.0, NGFF NVME M.2, SATA 3.0, USB 3.0, E-ATX Server PC Mainboard
(-34%)
Save 35%Brand: MACHINIST
Deliverable in 10+Business Days
Key Points
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

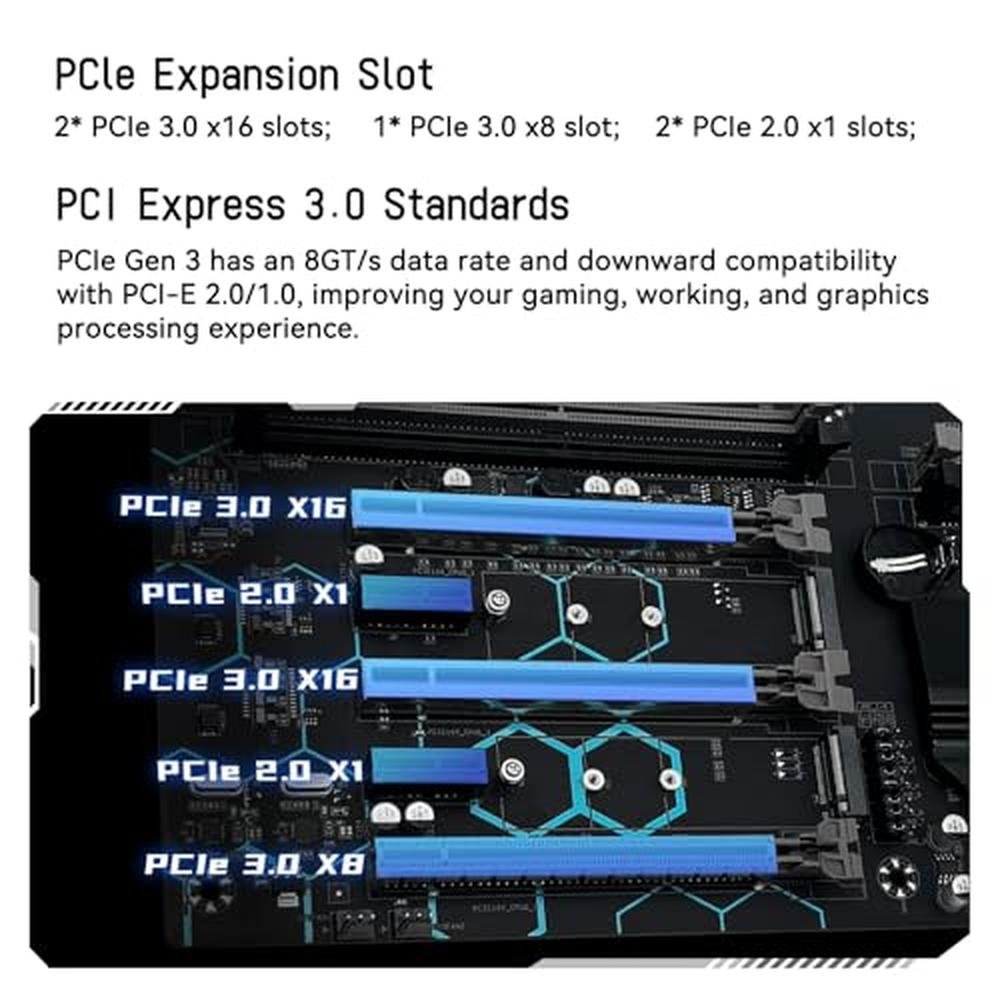

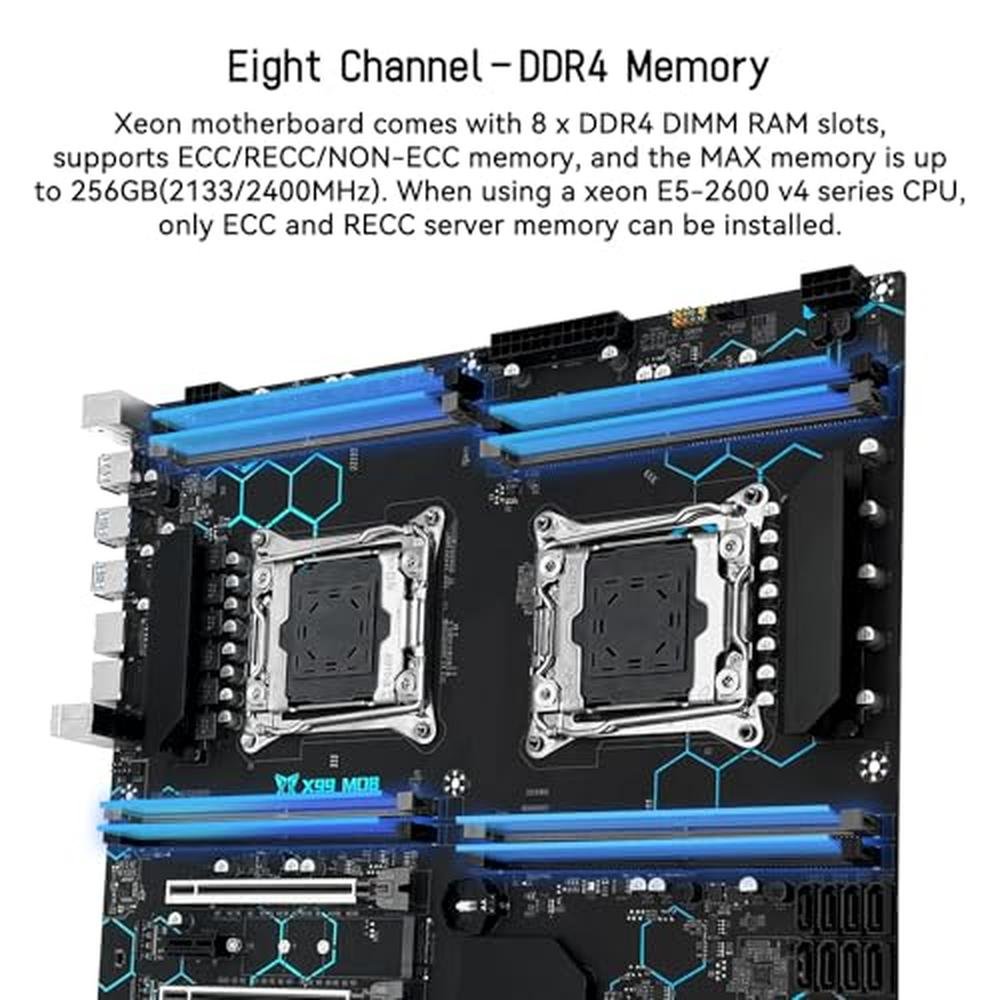

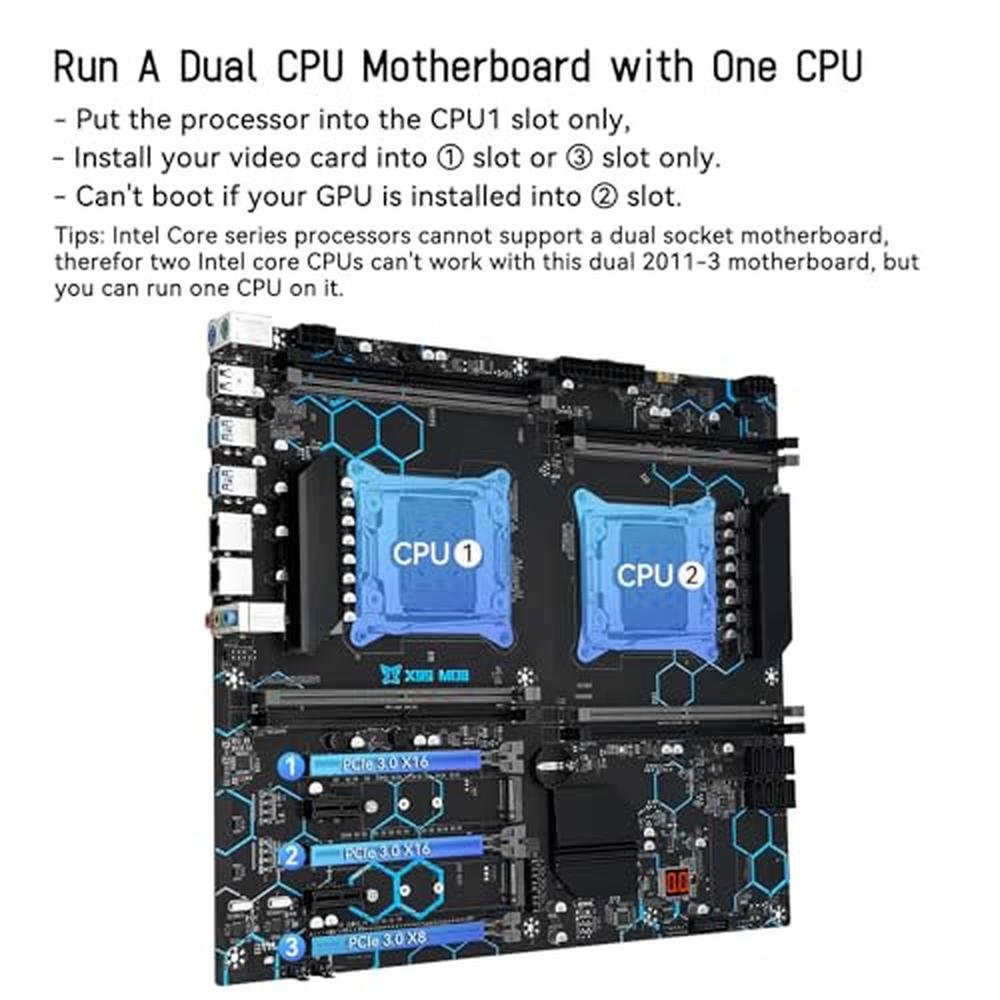

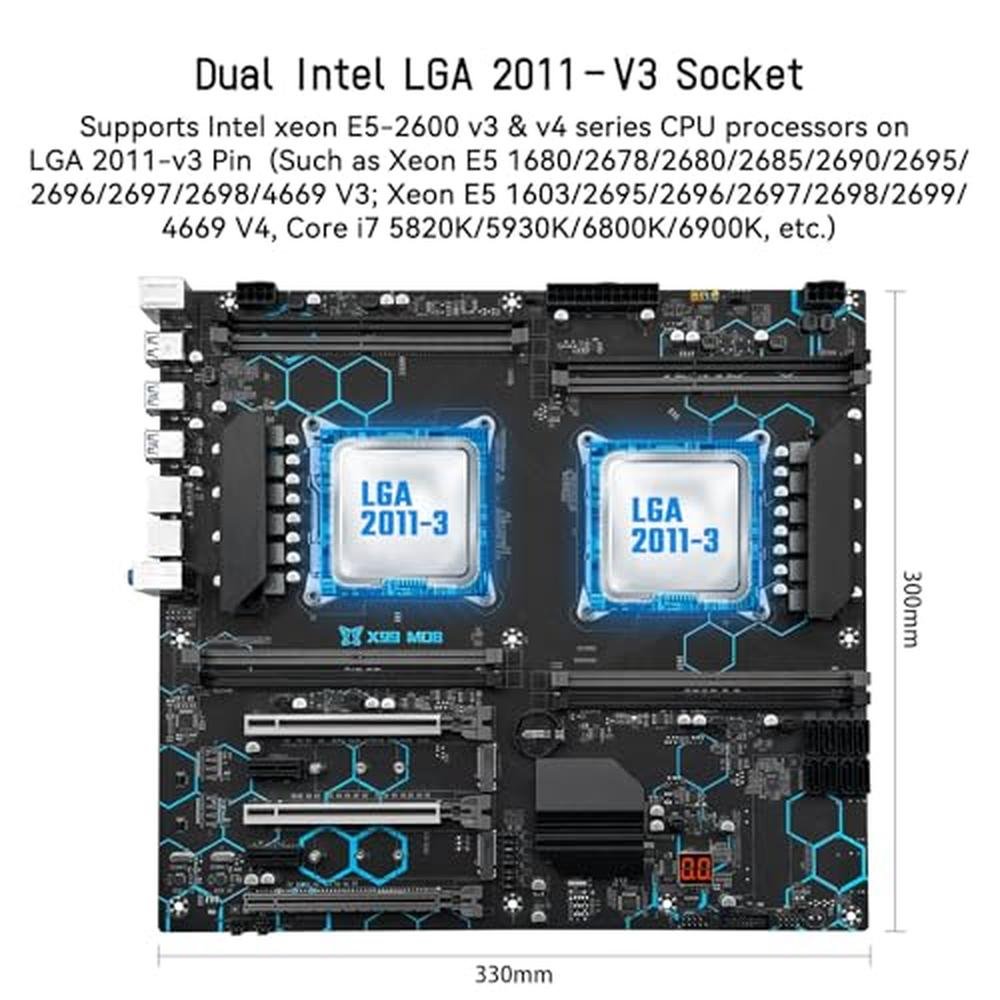

MACHINIST X99 dual CPU gaming motherboard with LGA 2011-3 socket and DDR4 slot for Intel E5 v3 v4 CPUs. Specification Chipset Intel C612 CPU socket 2 LGA 2011-3 sockets CPU support Intel Xeon E5 V3 V4 CPUs (can support dual CPU mode), Intel Core i7 CPUs(can t support dual CPU mode) Memory slot 8 DDR4 slots Memory support DDR4 ECC RECC server memory and DDR4 desktomemory (When use Xeon E5 V4 CPU, only DDR4 ECC RECC can be support) Memory frequency 2133 2400 MHz Memory capacity 256G(8 32GB) Storage interface SATA3.0 8, M.2 interface 2 M.2 slot The default mode of M.2 is NVME, which can be switched to NGFF (SATA) through a jumper cap. The M.2 specification is PCIe 3.0 x4, and the maximum speed is 3600M S Applicable hard drives SATA 2.5 solid state drives, SATA 3.5 mechanical hard drives, MVME M.2, SATA M.2 Expansion interface 2 PCI Express x16 slots, 1 PCI Express x8 slots, 2 PCI Express x1 Onboard network card 2 reaItek8111 Gigabit network card Sound card Realtek ALC 897 2.1 channel Power interface 24pin 8pin 8pin Fan interface 2 4pin 2, 2 3pin Power supply 8-phase Overclocking Not supported Motherboard size 330mm 300mm Motherboard specification E-ATX RAID support RAID0, RAID1, RAID5 Startushortcut key F11 Tips 1. CMOS clearing method disconnect the power supply of the motherboard, then remove the CMOS battery, and reinstall the CMOS battery after 3 minutes. 2. When only install one processor, the CPU must be installed on the left side of the motherboard, the CPU power supply must be plugged into the CPU power supply interface on the left side of the motherboard, the memory can only be installed on the left side of the motherboard, and the graphics card must be installed on PCle slot 1 or 5 (from toto bottom). 3. The package does not contain a user manual, but we can sent a manual file to you if you need. 4. The CR2032 battery on the motherboard has been removed, it is not included in the package, please purchase it yourself
Specifications & Details
| SKU | BMB0F5W2RPM7 |
|---|---|
| Package Dimensions | 15 x 13.5 x 2.5 inches |
| Item Weight | 1.724 kgs |
| Manufacturer | MACHINIST |
| Country of Origin | China |
