8MP USB Camera Module with Microphone Wide Angle 105 degree, Computer Camera Fixed Focus 4K Lightburn Camera for Laser Engraver Embedded UVC Webcam Board Tiny USB Security Camera for PC, Laptop, Raspberry Pi
(-23%)
Save 23%Brand: IEights
Dispatched in 15 to 20 days
Key Points
- Sensor size of 1/3 inch and pixel size of 1.4µm x 1.4µm for high-quality image capture
- Maximum resolution of 3264(H) x 2448(V) and default resolution of 3264(H) x 2448(V) for detailed video recording
- Compression format of MJPEG and YUY2 (YUYV) for efficient video transmission
- Adjustable parameters including brightness, contrast, saturation, hue, sharpness, gamma, gain, and white balance for fine-tuning of image and video quality
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

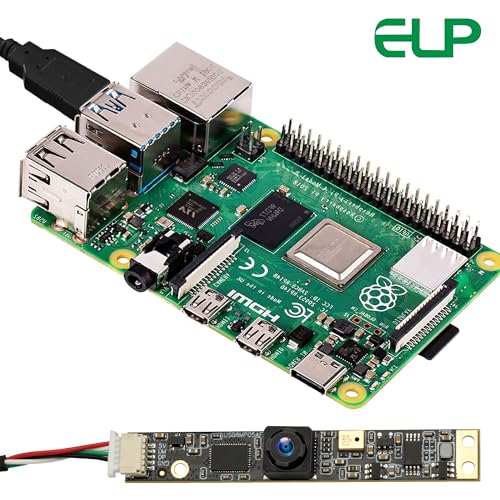

Experience high-quality video recording with our 8MP USB camera module, designed to deliver exceptional performance and versatility. With a wide-angle lens of 105° and fixed focus, this camera module is perfect for various applications, including computer vision, security surveillance, and laser engraving. The integrated microphone and UVC webcam board enable seamless audio and video transmission, making it an ideal choice for PC, laptop, and Raspberry Pi users. Whether you're looking for a reliable camera for video conferencing, monitoring, or other uses, our module offers excellent value and performance.
Our 8MP camera module boasts an impressive array of technical specifications, including a sensor size of 1/3 inch, pixel size of 1.4µm x 1.4µm, and image area of 6.18mm x 5.85mm. With a maximum resolution of 3264(H) x 2448(V) and default resolution of 3264(H) x 2448(V), this camera module is capable of capturing high-quality images and videos. The compression format is MJPEG and YUY2 (YUYV), with various resolution and frame rate options available.

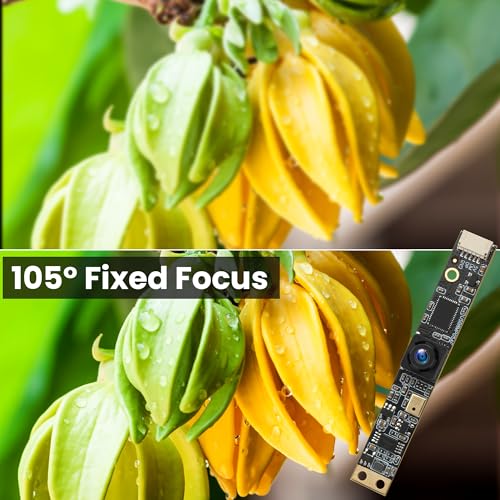

In terms of connectivity, our camera module features a USB 2.0 high-speed connecting port and supports USB video class (UVC) and OTG protocols. The adjustable parameters include brightness, contrast, saturation, hue, sharpness, gamma, gain, and white balance, allowing for fine-tuning of the image and video quality. With a fixed lens and HFOV of about 105 degrees, this camera module is suitable for a wide range of applications.

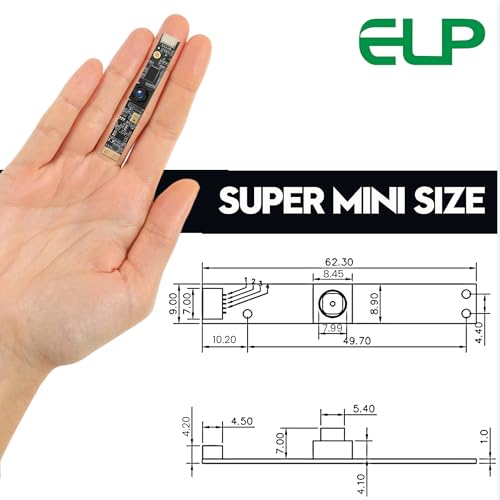

The power supply is via USB bus power, with an operating voltage of DC 5V and working current of 150mA-240mA. The working temperature range is -10 to 70°C, and the storage temperature range is -20 to 85°C. The board size and weight are 62.1x9x6.2mm and about 20g, respectively, making it a compact and lightweight solution.
Our 8MP USB camera module is compatible with a variety of operating systems, including Windows XP, Vista, 7, 8, 9, 10, and 11, as well as Linux with UVC (above Linux-2.6.26) and MAC-OS X 10.4.8 or later. It is also compatible with Android 4.0 or above with UVC.
Specifications & Details
| SKU | BMB0DHYCVW7S |
|---|---|
| Brand Name | IEights |
| Item Weight | 0.090 kgs |
| Product Dimensions | 0.35 x 2.44 x 0.24 inches |
| Item model number | ELP-USB8MP05AF-FF105-us |
| Color Name | brown |
| Number of Component Outputs | USB |
| Special Features | 8mp Ultra HD, mini size, light weight, wide angle 105degree lens, Built with microphone, camera with UVC for computer, laptop, pc, raspberry pi, Jetson Nano |
