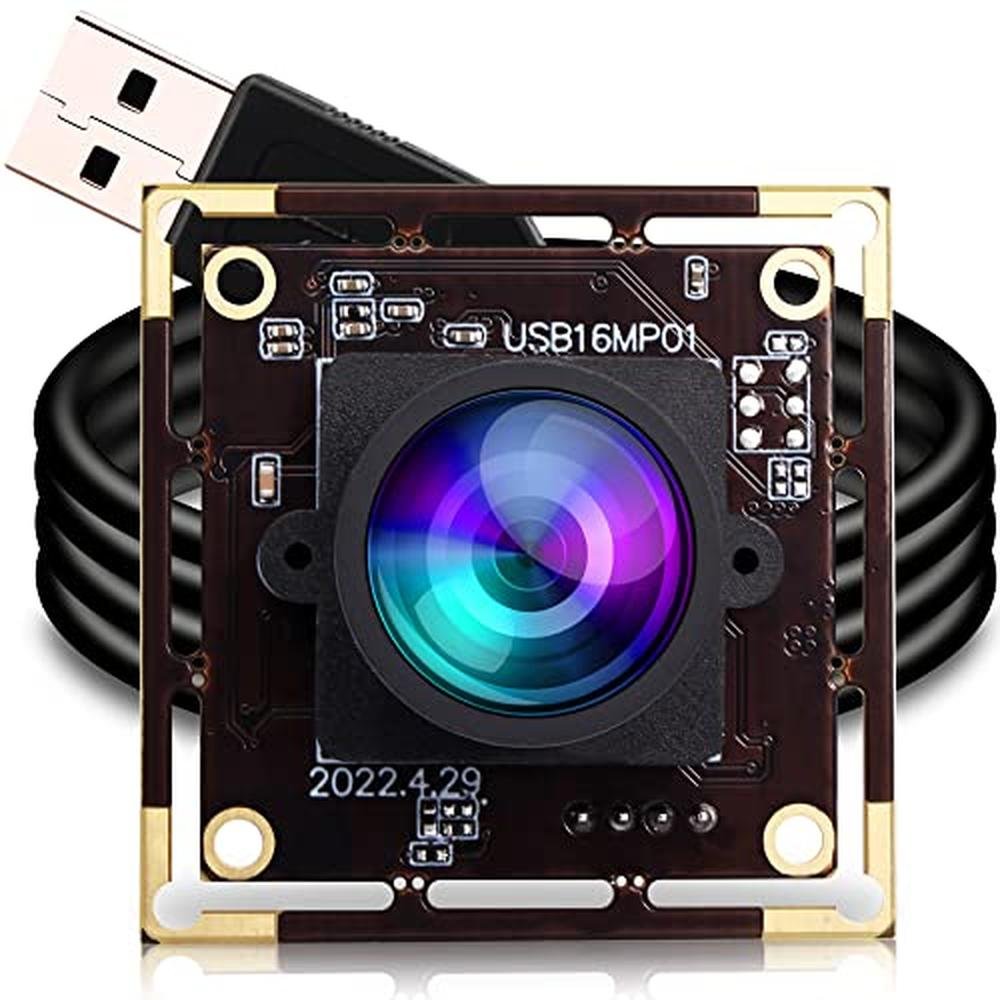

ELP 16MP Wide Angle USB Camera Module for Raspberry Pi and Computer 4K Mini UVC USB2.0 Video Webcam Board with 118degree No Distortion Lens IMX298 Industrial PC Lightburn Camera for Laptop,Jetson Nano
(-55%)
Save 56%Brand: ELP
Deliverable in 10+Business Days
Key Points
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

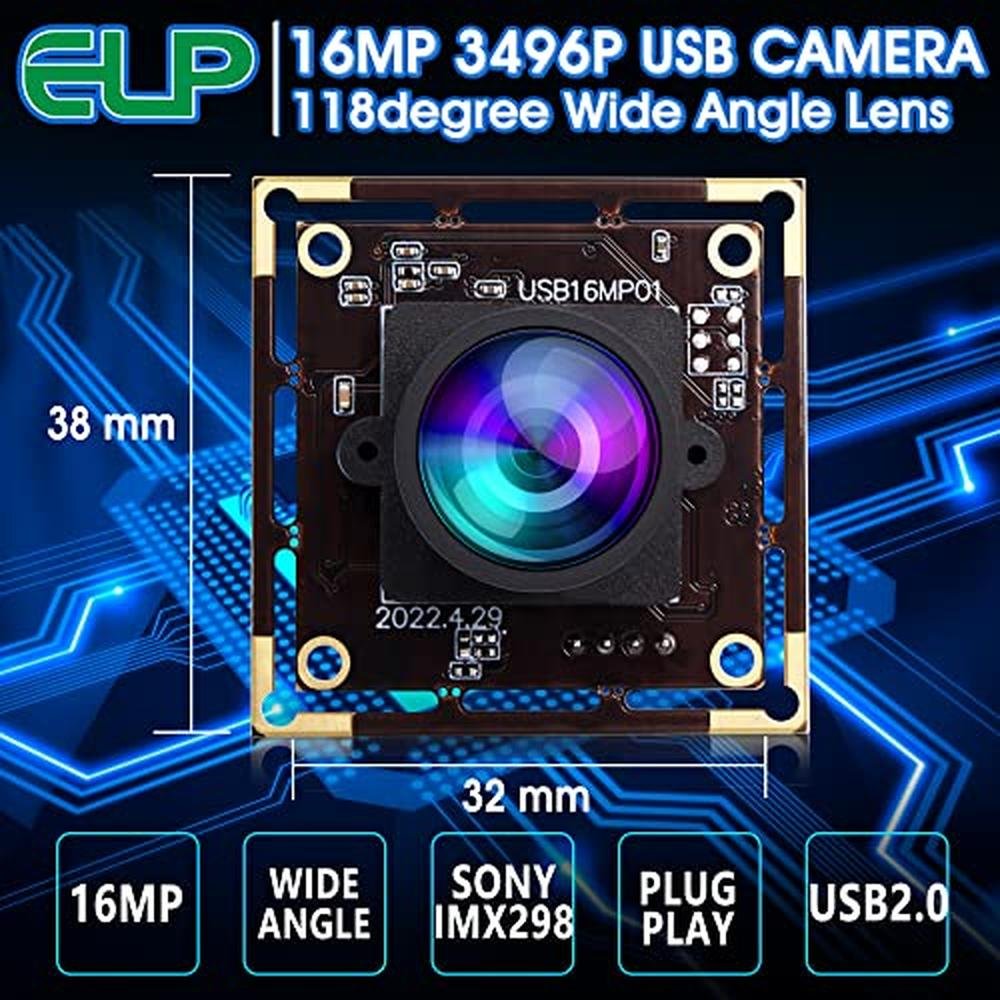

Model ELP-USB16MP01-H120 Sensor IMX298 Sensor Size 1 2.8inch Pixel Size 1.12um Image Area 6.4mm x 5.3mm Max. Resolution 4656(H) X 3496(V) 16 Megapixel Compression Format MJPEG YUY2 (YUYV) Resolution Frame Rate 4656 x 3496 MJPEG 10fps YUY2 1fps 4208 x 3120MJPEG 10fps YUY2 1fps 4160 x 3120 MJPEG 10fps YUY2 1fps 4000 x 3000MJPEG 10fps YUY2 1fps 3840 x 2160 MJPEG 10fps YUY2 1fps 3264 x 2448MJPEG 10fps YUY2 1fps 2592 x 1944 MJPEG 10fps YUY2 1fps 2048 x 1536 MJPEG 30fps YUY2 1fps 1600 x 1200 MJPEG 30fps YUY2 5fps 1280 x 720 MJPEG 30fps YUY2 10fps 800 x 600 MJPEG 30fps YUY2 15fps 2320 x 1744MJPEG 30fps YUY2 1fps 1920 x 1080MJPEG 30fps YUY2 5fps 1280 x 960MJPEG 30fps YUY2 10fps 1024 x 768MJPEG 30fps YUY2 10fps 640 x 480MJPEG 30fps YUY2 30fps Min Illumination 0.5 Lux Shutter Type Electronic Rolling Shutter Frame Exposure Connecting Port Type USB2.0 High Speed Free Drive Protocol USVideo Class (UVC) AEC Support AWSupport AGC Support Adjustable Parameters ightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure Lens Parameter Standard No Distortion L75 Lens, FOV about 76 degree. Power Supply USBUS POWER 4P-2.0mm Socket Operating Voltage DC5V Working Current 150mA 240mA Working Temperature -10 70 Storage Temperature -20 85 Board Size Weight 38X38mm (Compatible 32X32mm) about 30g Cable Standard 1m Operating System Request WinXVista Win7 Win8 Win9 Win10 Win11 etc.
Specifications & Details
| SKU | BMB0C289GYVZ |
|---|---|
| Brand Name | ELP |
| Item Weight | 0.082 kgs |
| Product Dimensions | 2.17 x 3.54 x 2.56 inches |
| Item model number | ELP-USB16MP01-H120 |
| Color Name | H120 No Distortion Lens |
| Special Features | Lightweight, imx298 image sensor, Mini size, high definition 16mp, wide angle 120degree no distortion lens |
