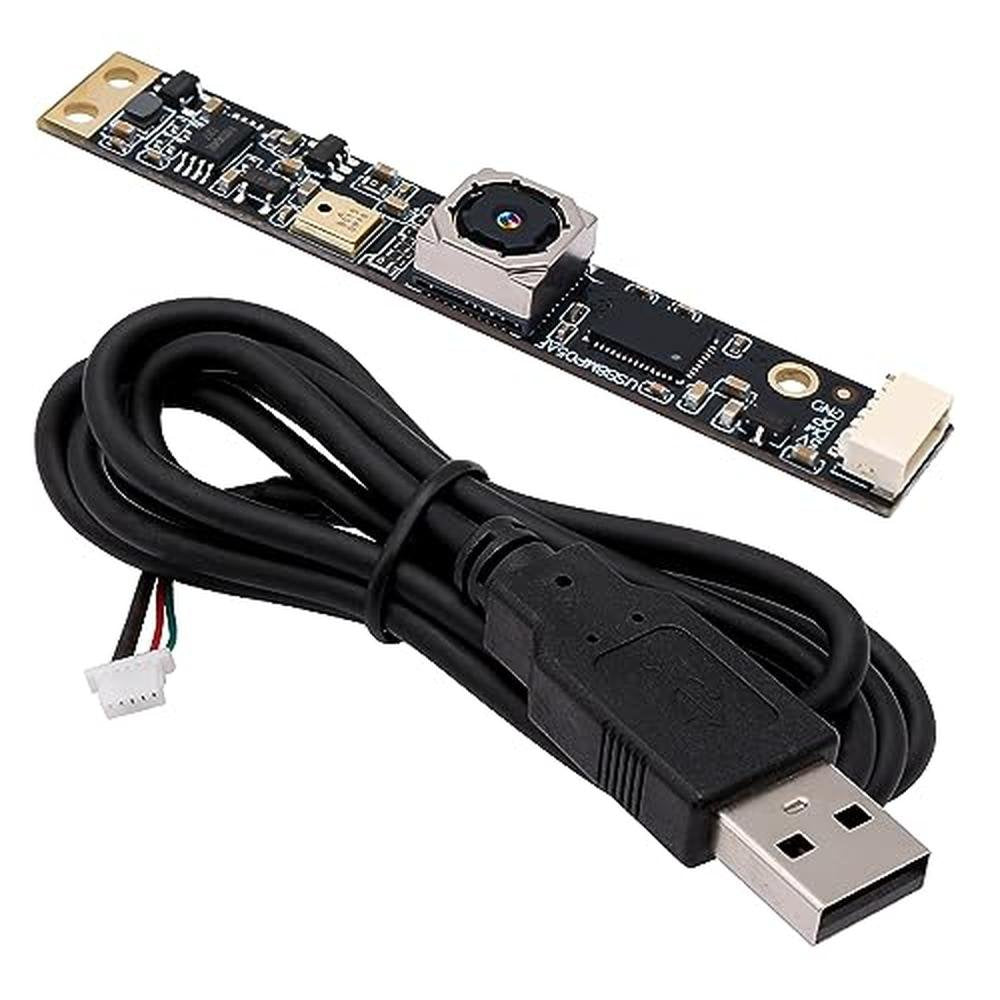

ELP 8mp USB Camera Module with Microphone Autofocus PC Camera for Computer 4K Lightburn Camera for Laser Engraver Mini Auto Focus Webcam Board CCTV USB Surveillance Camera for Raspberry Pi Laptop
(-57%)
Save 57%Brand: ELP
Deliverable in 10+Business Days
Key Points
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

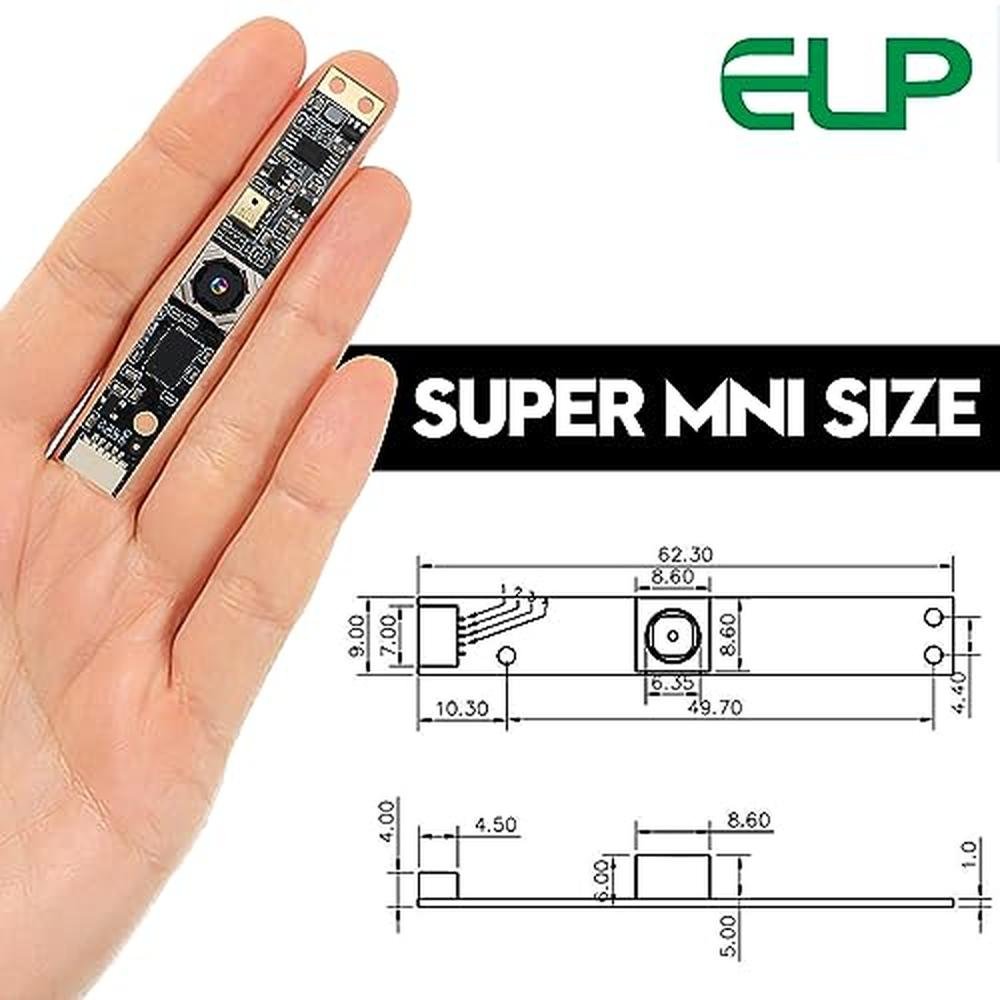

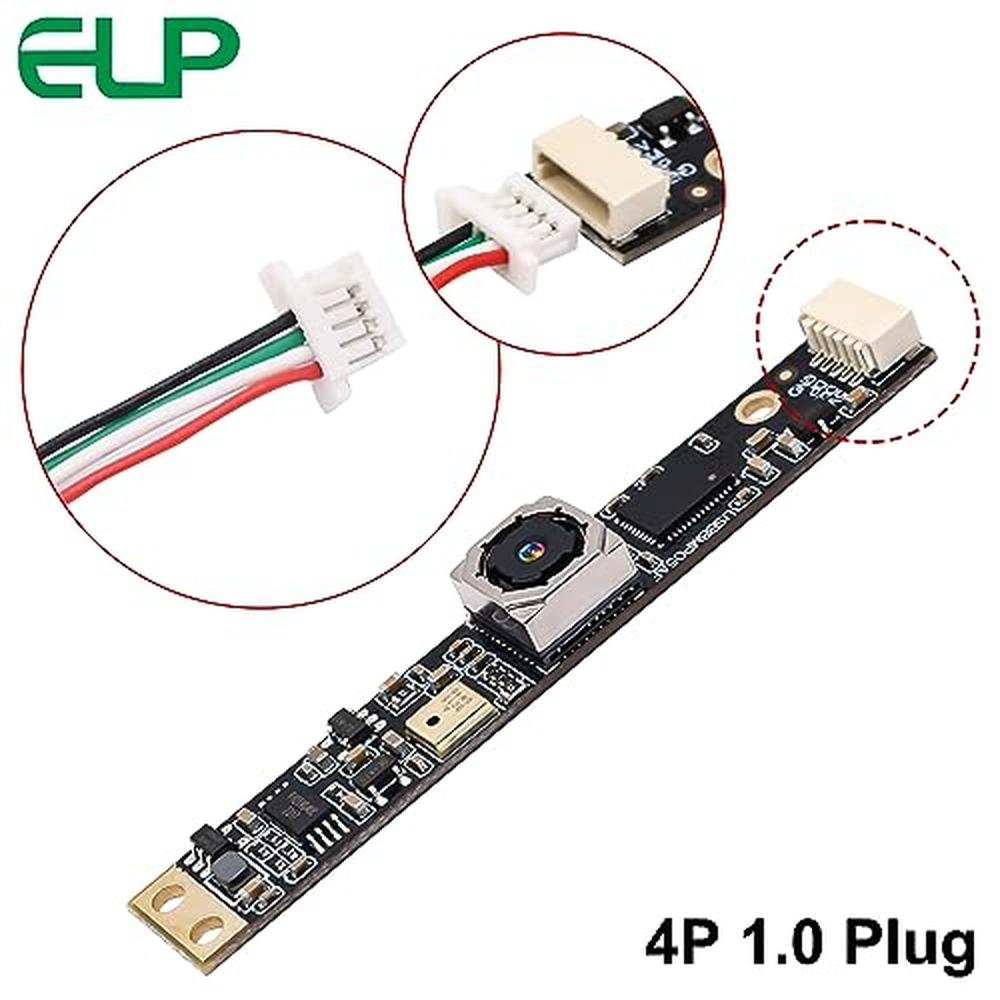

Model ELP-USB8MP05AF-V62 Sensor IMX179 Sensor Size 1 3.2 inch Pixel Size 1.4 m x 1.4 m Image Area 6.18mm x 5.85mm Max. Resolution 3264(H) X 2448(V) 8 Megapixel Compression format MJPEG YUY2 (YUYV) Resolution Frame Rate 3264X2448 MJPEG 15fps YUY2 1fps 2592X1944 MJPEG 20fps YUY2 2fps 2048X1536 MJPEG 15fps YUY2 3fps 1600X1200 MJPEG 25fps YUY2 5fps 1920X1080 MJPEG 25fps YUY2 5fps 1280X960 MJPEG 25fps YUY2 5fps 1280X720 MJPEG 25fps YUY2 10fps 1024X768 MJPEG 25fps YUY2 10fps 800X600 MJPEG 25fps YUY2 25fps 640X480 MJPEG 25fps YUY2 25fps 320X240 MJPEG 25fps YUY2 25fps S N Ratio 34d Dynamic Range 72.5d Sensitivity 0.65V Lux-sec 550nm Min Illumination 0.5 Lux Shutter Type Electronic Rolling Shutter Frame Exposure Connecting Port Type USB2.0 High Speed Free Drive Protocol USVideo Class (UVC) OTG Protocol USB2.0 OTG AGC AEC AWAuto Adjustable Parameters ightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure Lens Parameter AF lens, ,HFOV about 62 Degree Power Supply USBUS POWER 4P-1.0mm socket Operating Voltage DC5V Working Current 150mA 240mA Working Temperature -10 70 Storage Temperature -20 85 Board Size Weight 62.3X9X6mm about 20g Cable Standard 1m Optional 2m,3m,5m Operating System Request WinXVista Win7 Win8 Win9 Win10 Win11 etc. Linux with UVC (above Linux-2.6.26),MAC-OS X 10.4.8 or later,Android 4.0 or above with UVC
Specifications & Details
| SKU | BMB0CG4BYL7Z |
|---|---|
| Brand Name | ELP |
| Item Weight | 0.020 kgs |
| Product Dimensions | 2.45 x 0.35 x 0.24 inches |
| Country of Origin | China |
| Item model number | ELP-USB8MP05AF-V62 8mp usb camera |
| Is Discontinued By Manufacturer | No |
| Color Name | brown |
| Special Features | built in microphone, 8mp usb camera, Mini size, light weight, IMX179 sensor, Autofocus lens |
