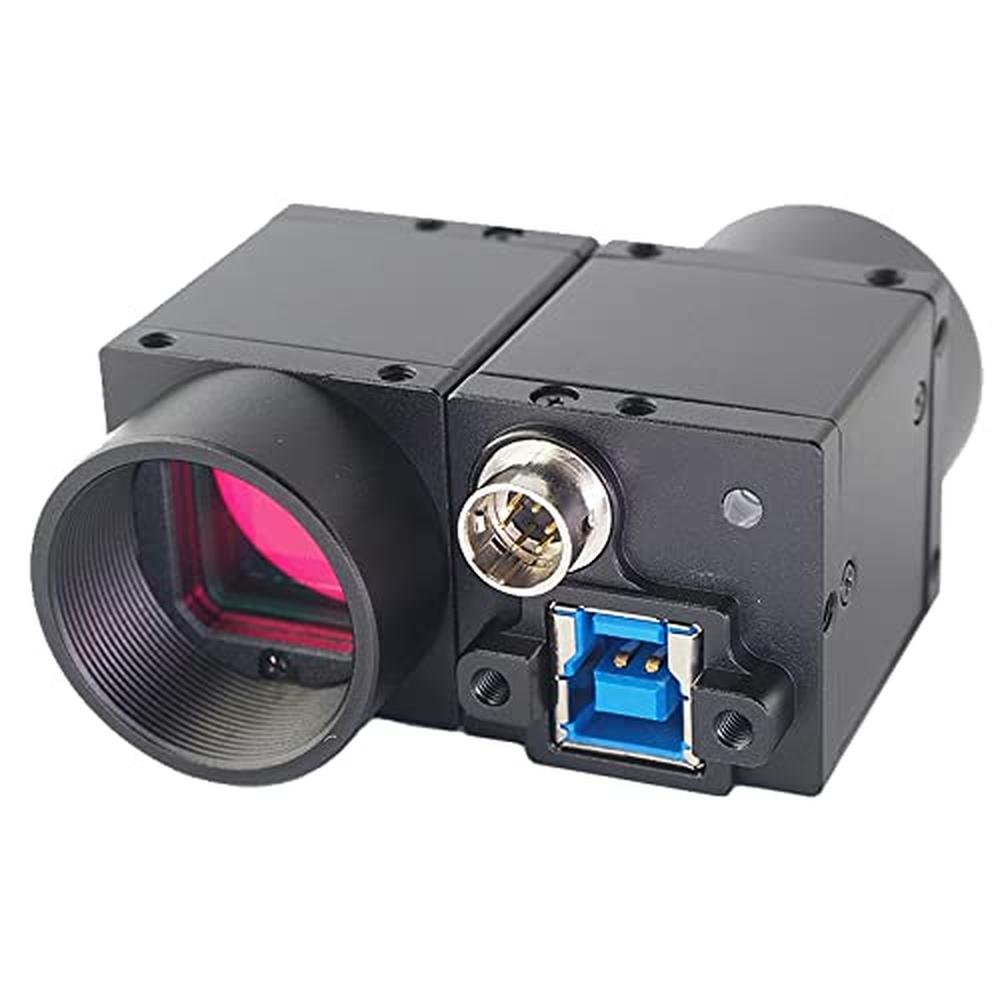

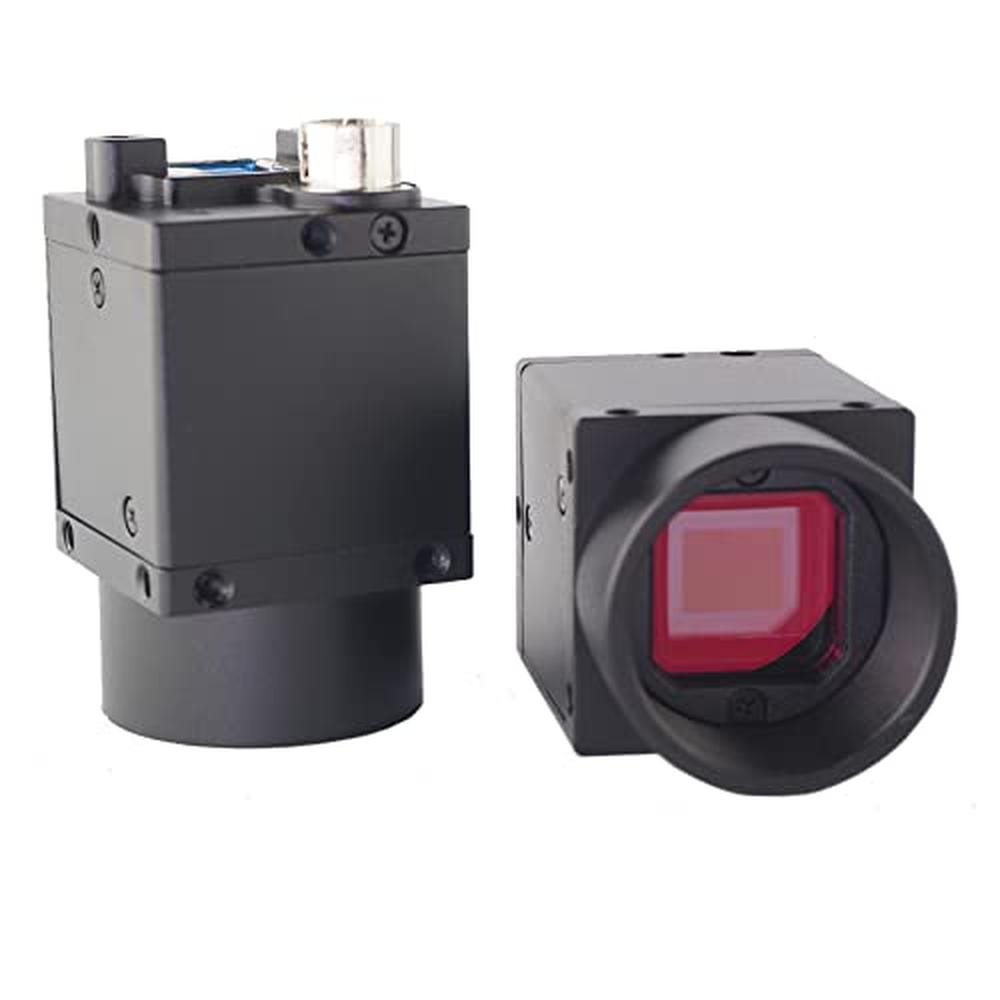

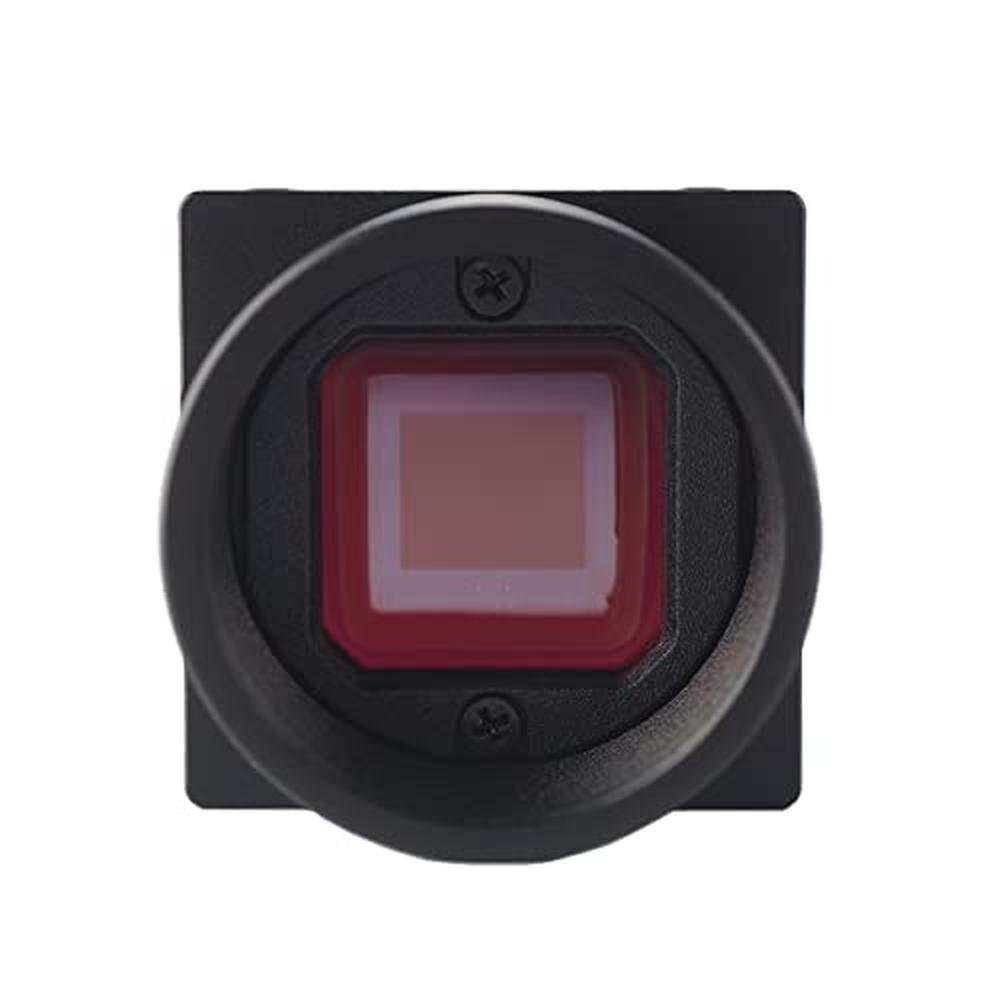

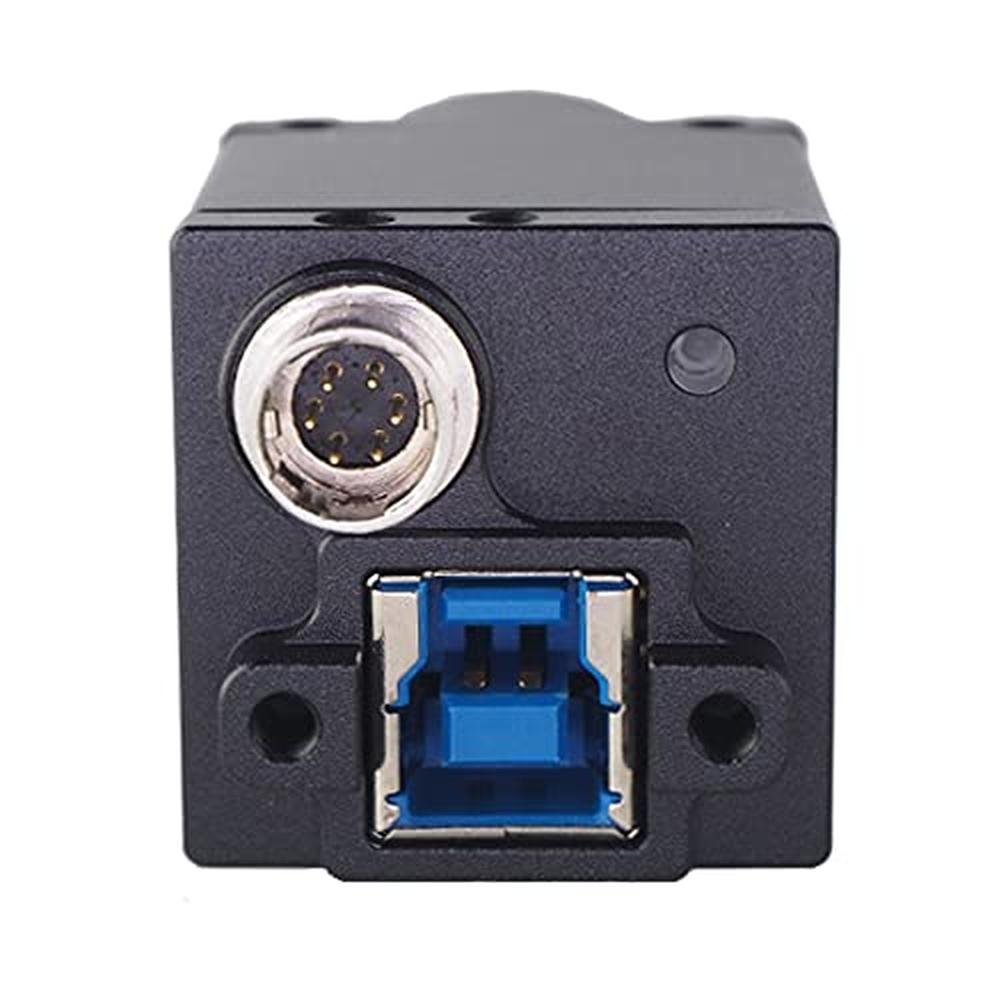

HTENG VISHI High Speed USB3.0 1 5.6 0.3MP Machine Vision Global Shutter Monochrome Digital Industrial Camera C-Mouth Supports Windows and Linux SDK Area Scan Camera 640x480 790FPS Indoor
(-24%)
Save 24%Brand: HTENG VISHI
Deliverable in 10+Business Days
Key Points
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

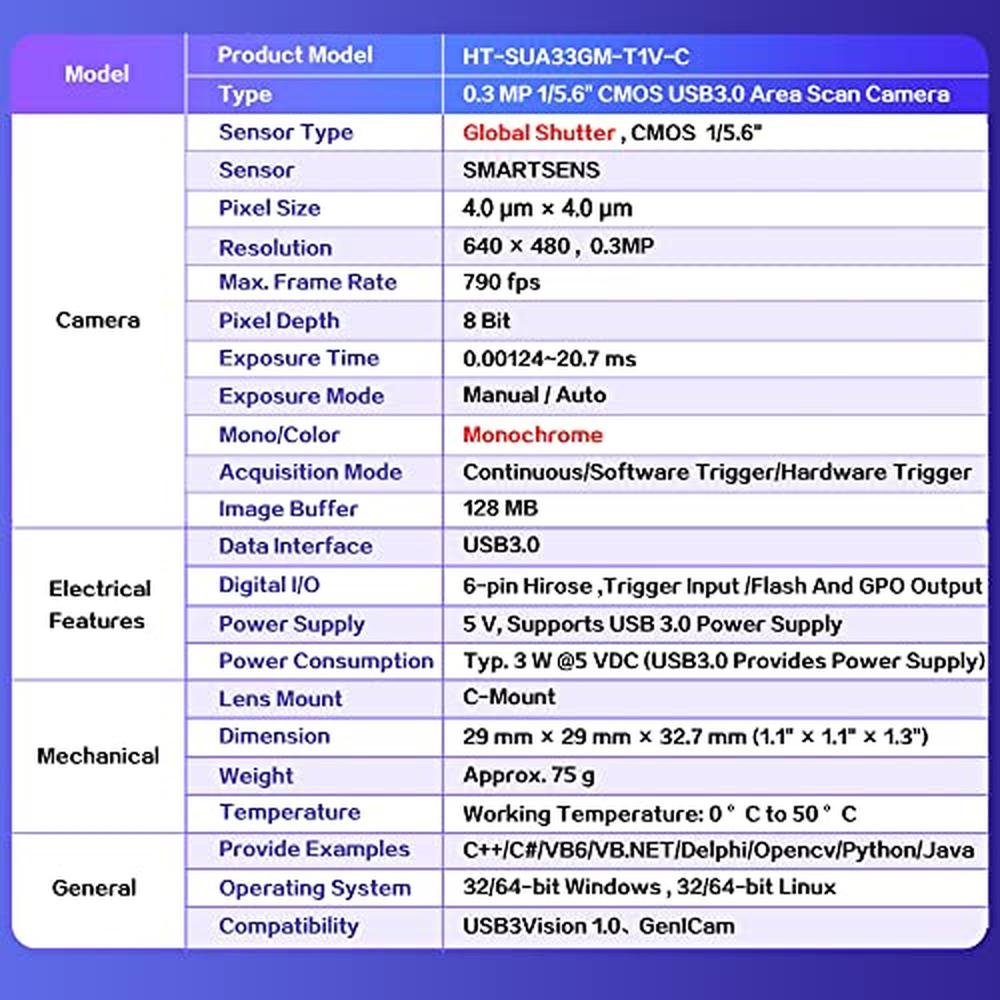

Product Model HT-SUA33GM-T Type US3.0 Camera Sensor type CMOS, Global Shutter Sensor SMARTSENS Mono Color Monochrome Pixel 0.3M Pixel size 4.0 m 4.0 m Sensor size 1 5.6 Resolution 640 480 Max. Frame Rate 790 fps Sensitivity 8V lux-sec 540nm Acquisition mode Continuous Software trigger Hardware trigger Exposure time 0.00124 20.7ms Exposure mode Manual Auto Pixel format Mono 8 12, Bayer RG 8 12 16, RGB24 Reverse image Supports horizontal and vertical reverse image output Image buffer 128 M Data Interface USB3.0 GPIO 6-pin Hirose I O, Trigger input x1, flash control output x1 GPO output x1 Power supply 5 V, Supports US3.0 power supply Power consumption Typ. 3 W 5 VDC (USB3.0 provides power supply) Lens mount CS C-Mount Dimension 29 mm 29 mm 32.7 mm Ingress protection IP30 (under correct lens installation and wiring) Temperature Working temperature 0 C to 50 C (32 F to 122 F) Storage temperature -30 C to 70 C (-22 F to 158 F) Humidity 20 to 80 RH, without condensation Client software Third-party software compatible with USB3 Vision Protocol Provide Examples C C C VB6 VB.NET Delphi Opencv Python Java Operation system 32 64-bit Windows 7 10, 32 64-bit Linux Compatibility US3.0 Vision
Specifications & Details
| SKU | BMB09XQZQG52 |
|---|---|
| Compatible Devices | Desktop |
| Power Source | Corded Electric |
| Connectivity Protocol | NO |
| Controller Type | NO |
| Mounting Type | Ceiling Mount |
| Video Capture Resolution | 0.3mp |
| Color | Monochrome |
| Number of Items | 1 |
| Included Components | Camera x1 USB3.0 Cable x1 GPIO Cable x1 |
| Number of Channels | 32 |
| Wireless Communication Technology | NO |
| Form Factor | Cube |
| Voltage | 5 Volts (DC) |
| Wattage | 3 watts |
| Item dimensions L x W x H | 1.26 x 1.14 x 1.14 inches |
| Water Resistance Level | Not Water Resistant |
| Batteries Required? | No |
| Item Weight | 0.068 kgs |
| Focus Type | Manual Focus |
| Low light technology | Night Color |
| Room Type | Office |
| Video Capture Format | MPEG-4 |
| Specific Uses For Product | Surveillance |
| Unit Count | 1.0 Count |
| Photo Sensor Technology | CMOS |
| Effective Still Resolution | 0.3 MP |
| International Protection Rating | IP30 |
| Maximum Webcam Image Resolution | 0.3 MP |
| UPC | 707443460032 |
| Product Dimensions | 1.26 x 1.14 x 1.14 inches |
| Item Weight | 0.068 kgs |
| Item model number | HT-SUA33GM-T-CS |
| Is Discontinued By Manufacturer | No |
| Manufacturer | HUATENG VISION |
| Country of Origin | China |
