USB3 Header | CY Type-E Adapter 19pin 20pin Motherboard to USB3.1 Type-E 90-degree Converter | High-Speed USB3.0 Capabilities

Product Description

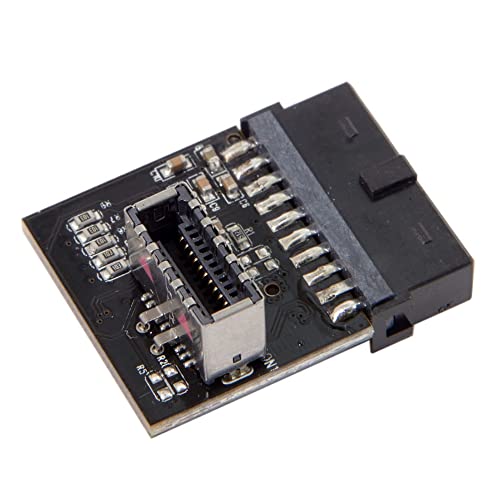

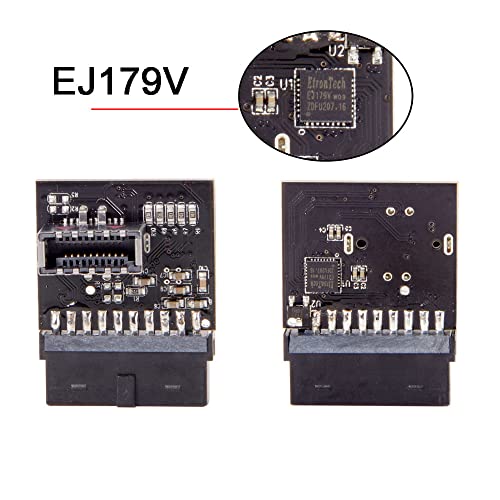

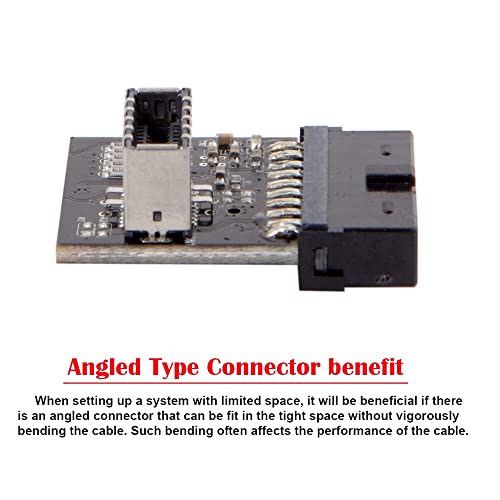

Experience the ultimate in connectivity with the CY Type-E USB Header Adapter, expertly designed to convert your motherboard's USB3.0 19pin or 20pin header to a USB3.1 Type-E port. This advanced 90-degree converter is perfect for front chassis installations, providing a convenient plug-in port with the reliable EJ179V chipset. Whether you're looking to add more USB ports or create a custom setup, this adapter is a versatile solution. With its compact design and high-speed USB3.0 capabilities, it's ideal for applications requiring fast data transfer, such as connecting external hard drives or SSDs via USB3 header to SATA or USB3 header to USB-C.

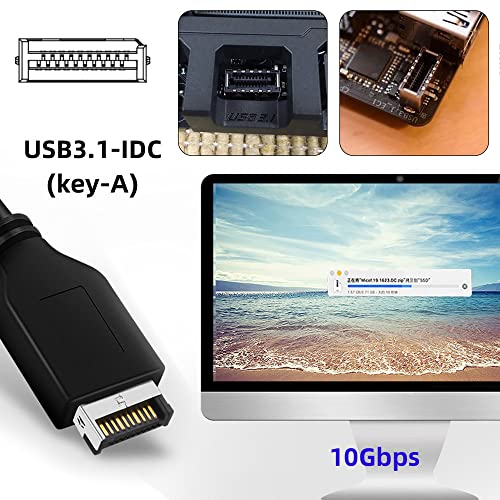

Unlock the full potential of your computer with the CY Type-E USB Header Adapter, a converter that transforms the available USB 3.0 header of a motherboard into a USB 3.1 header. This allows the USB 3.1 port of a housing to be supplied with USB 3.1 without a suitable mainboard. The compact adapter can be inserted directly and requires no additional attachments, making it a convenient accessory for cases with USB 3.1 connectors.

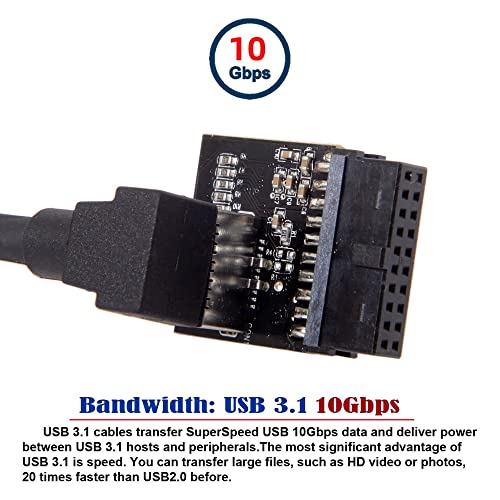

Discover the benefits of bundling in USB 3.1 with up to 10 GBit/s, and enjoy the compact shape factor of this adapter. Even the most up-to-date motherboards with AMD AM4 or Intel 2066 sockets are not always equipped with a USB 3.1 header, but this adapter provides the perfect solution to use the USB 3.1 connectors with Type-C or Type-A. The small converter is plugged into a USB 3.0 header that provides two USB 3.0 lanes, thus providing two data lines with 5 Gbps each, which are bundled into a USB 3.1 header with 10 Gbit/s.
