EmpireTech Ultra Smart 4MP 1/1.8" CMOS Starlight+ Low Light IR Bullet IP Camera WDR,Built-in MIC,8mm–32mm Motorized Lens,POE and ePOE Support, IP67,IPC-B54IR-Z4E S3
₹ 63,929
₹ 87,979
/
(-27%)
Save 27%
Incl. taxes | Free shipping
Brand: Loryta | USA Warehouse
10 in stock
100% Genuine Products Guaranteed
Estimated Delivery: Oct 9th - Oct 14thKey Points
- 8mm–32mm Motorized Lens,Built-in IR LED, and the max. illumination distance is 120 m.
- 4-MP 1/1.8" CMOS image sensor, low luminance, and high definitionimage. Outputs max. 4MP (2688×1520) @25/30 fps.
- Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SDcard, built-in MIC.
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

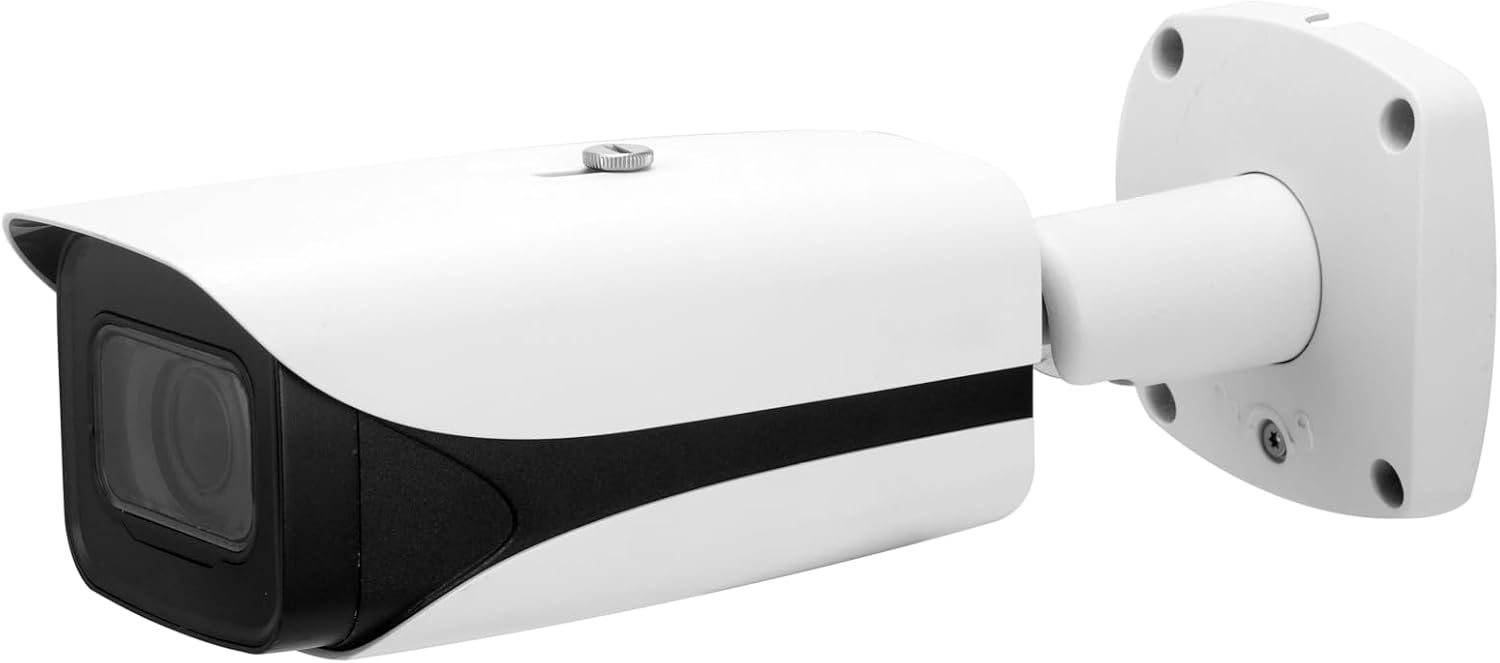

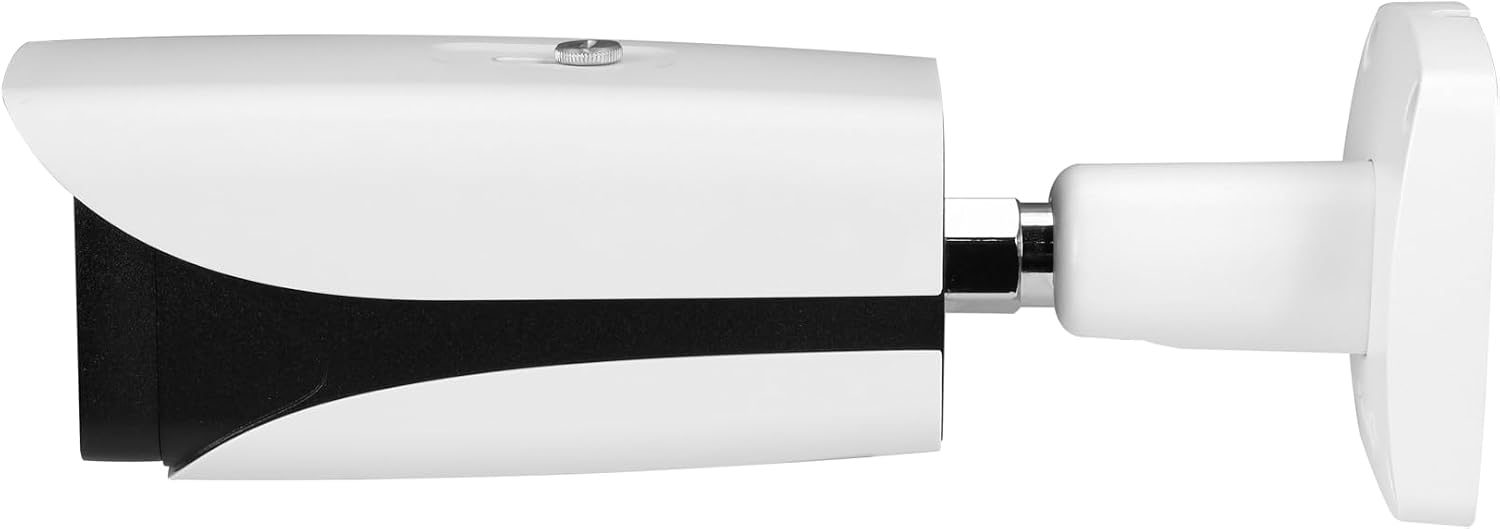

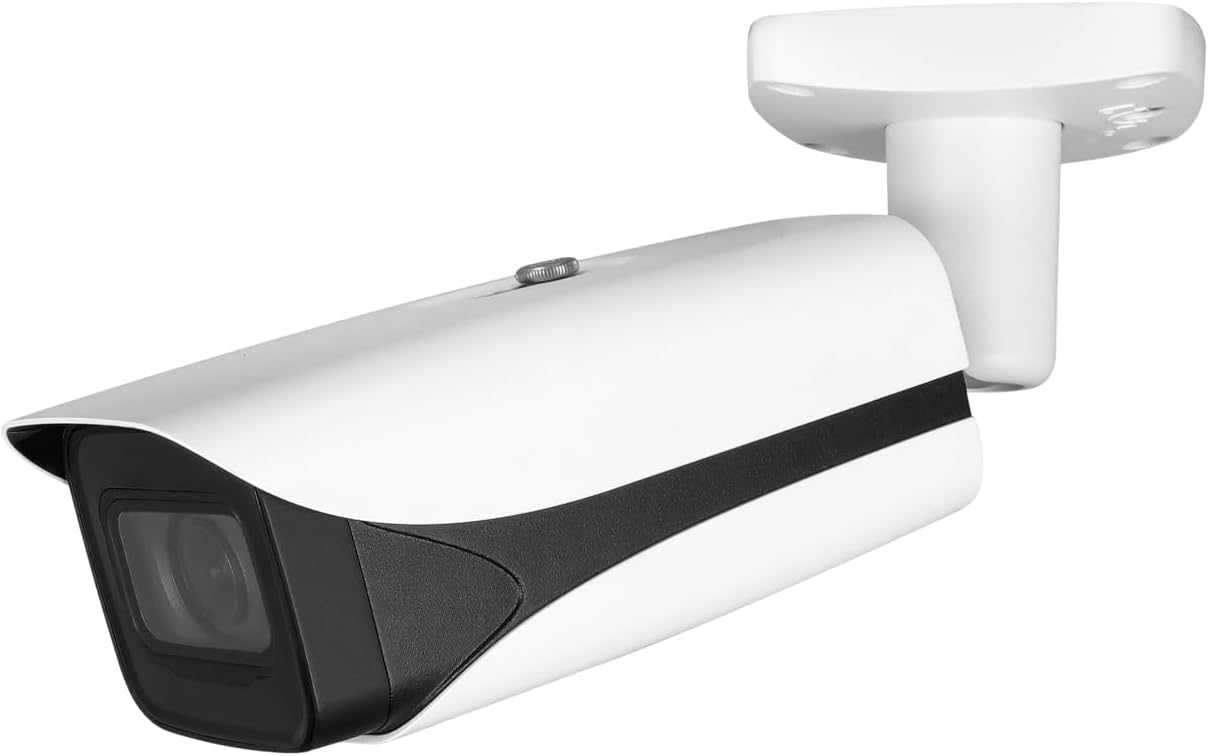

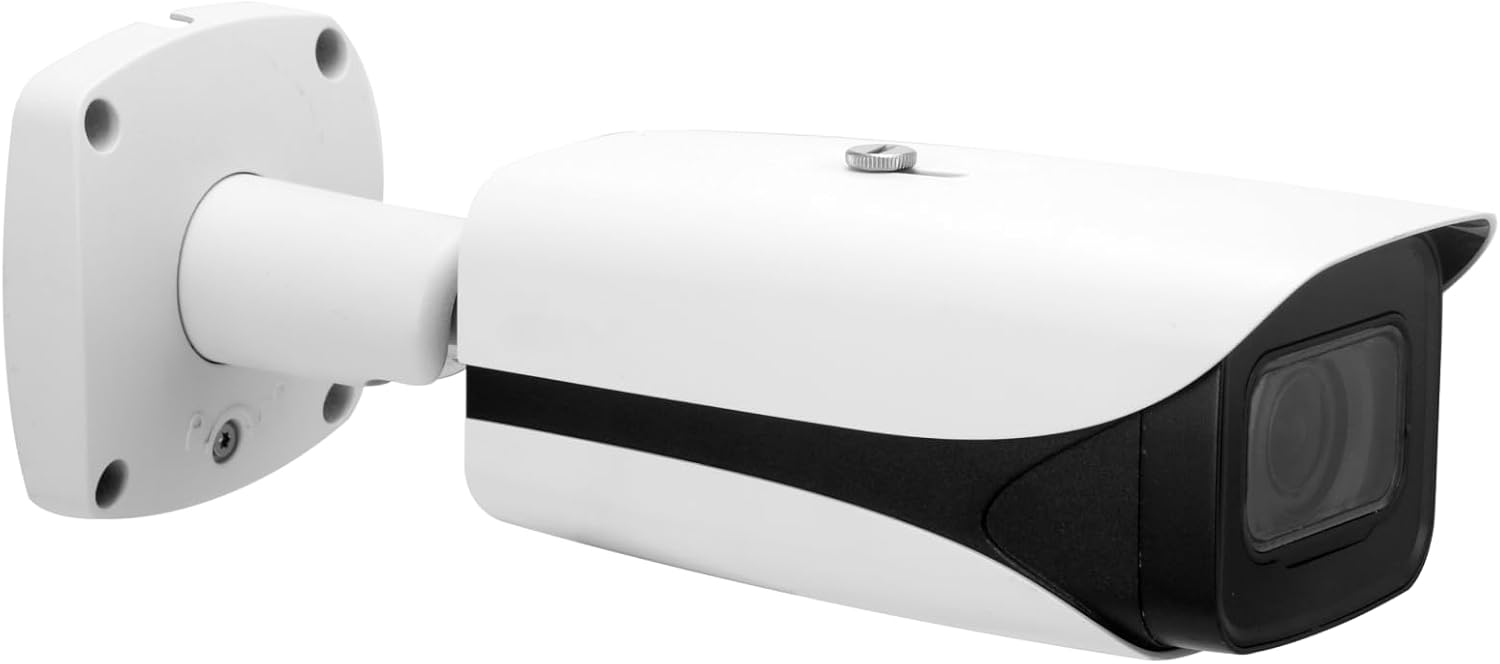

EmpireTech Ultra Smart 4MP 1/1.8" CMOS Starlight+ Low Light IR Bullet IP Camera
IPC-B54IR-Z4E-S3
- 4-MP 1/1.8" CMOS image sensor, low luminance, and high-definition image.
- Outputs max. 4MP (2688×1520) @ 25/30 fps.
- Built-in IR LED, and the max. illumination distance is 120 m.
- Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
- 12 VDC/PoE power supply; ePoE.
- IP67 and IK10 protection.
Intelligence
- IVS (Perimeter Protection)
- Smart Object Detection
- Face Detection
- People Counting
- Heat Map
- Video Metadata
- Smart Sound Detection
Specifications
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0007 lux @ F1.6 (Color, 30 IRE) ; 0.0004 lux @ F1.6 (B/W, 30 IRE) ; 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 120 m (393.70 ft) (IR) |
| Illuminator On/Off Control | Auto; Zoomprio;Manual |
| Illuminator Number | 4 (IR LED) |
| Lens | 8 mm–32 mm Motorized varifocal Lens |
| Lens Mount | Module |
| Max. Aperture | F1.6 |
| Field of View | H: 43°–15°; V: 24°–9°; D: 50°–17° |
| Iris Control | Auto |
| Close Focus Distance | 1.5 m (4.92 ft) |
| DORI Distance | Lens -------- Detect --------------------- Observe -------------------- Recognize ------------------- Identify |
| . | W --------- 147.3m(483.27ft) -------- 58.9m(193.24ft) ----------- 29.5m(96.78ft) -------------- 14.7m(48.23ft) |
| . | T -------- 395.0m(1295.93ft) ------- 158.0m(518.37ft) ---------- 79.0m(259.19ft) ------------- 39.5m(129.59ft) |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps); Sub stream: D1@(1–25/30 fps); Third stream: 1080p@(1–25/30 fps); Fourth stream: 720p@(1–25/30 fps) |
| Stream Capability | 4 streams |
| Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–16384 kbps; H. 265: 12 kbps–11008 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Privacy Masking | 8 areas |
| Support | BLC /HLC /120 dB WDR /3D NR /Electronic Image Stabilization (EIS) /Smart Illumination /Defog /Mirror |
| Gain Control | Auto |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Network Port | RJ-45 (10/100 Enhancement Base-T) |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (supports max. 1 TB); NAS |
| Browser | IE: IE 9 and later; Chrome: Chrome 102 and later; Firefox: Firefox 88 and later |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: wet contact, 55 mA, 3 V5V DC |
| Alarm Output | 1 channel out: wet contact, 300mA 12V DC |
| Power Supply | 12 VDC/PoE (802.3af)/ePoE |
| Dual Power Backup | When the power adapter and PoE are both providing power, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.7 W (12 VDC); 4.9 W (PoE) |
| . | Max. (H.265+ WDR+ Intelligence on+IR on): 9.8 W (12 VDC); 12.3 W (PoE) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Casing Material | Metal + plastic |

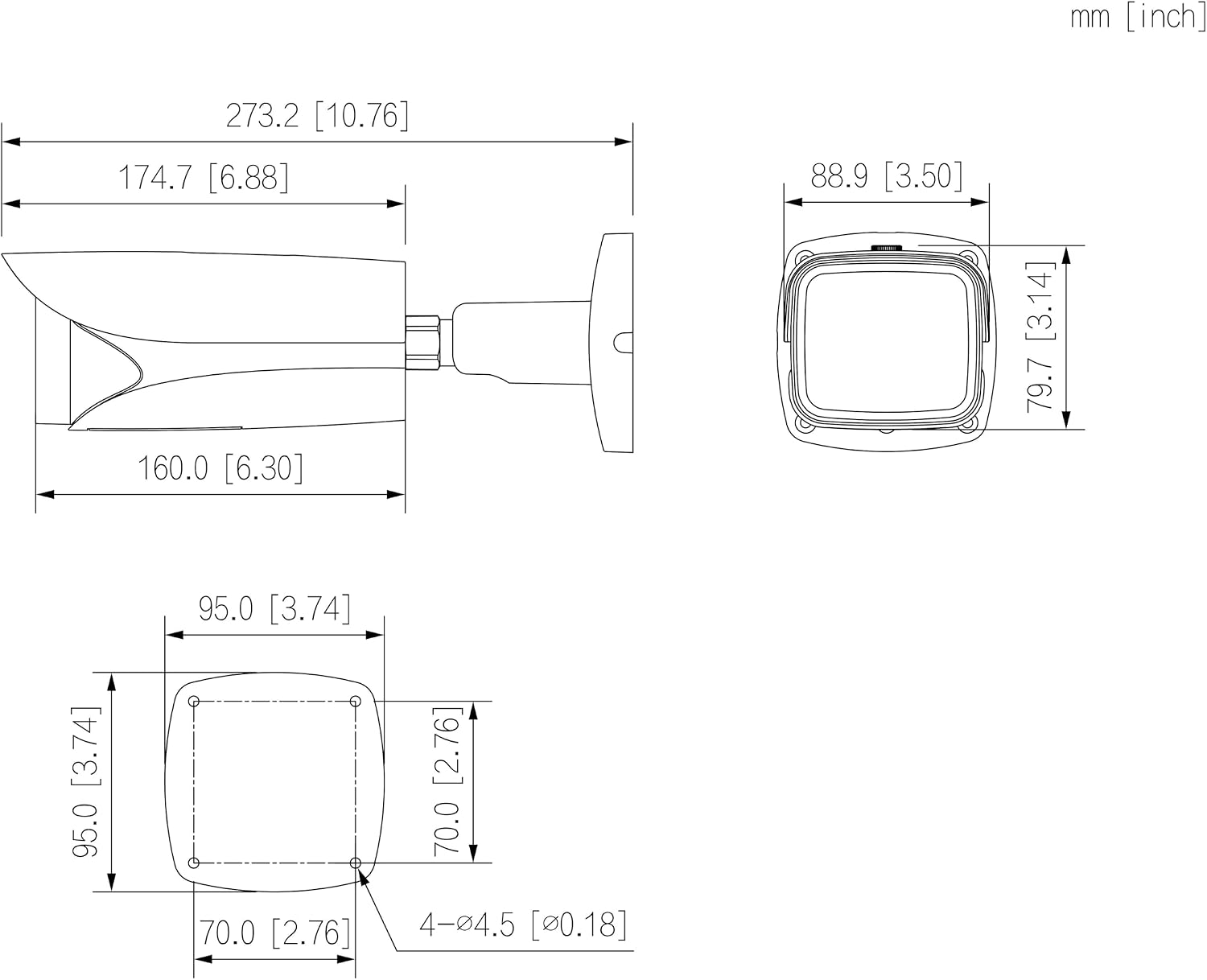

| Product Dimensions | 273.2 mm × 95.0 mm × 95.0 mm (10.76" × 3.74" × 3.74") (L × W × H) |
| Net Weight | 1.13 kg (2.49 lb) |
| Gross Weight | 1.68 kg (3.70 lb) |
Installation
The bracket needs to be purchased separately.
- PFA121 Waterproof Junction Box
- PFA152-E Pole Mount Bracket
