32GB Orange Pi 5B | Rockchip RK3588S Single Board Computer | High-Performance Linux Android Debian Ubuntu

Product Description

Experience the exceptional performance and versatility of the Orange Pi 5B, a 32GB Orange Pi single board computer designed to deliver top-tier results. Equipped with a Rockchip RK3588S 8-core 64-bit processor, 4GB of RAM, and 32GB of onboard eMMC flash storage, this compact computer packs a punch. With Wi-Fi 6 and Bluetooth 5.0 connectivity, you can easily connect to the internet and other devices. The Orange Pi 5B is compatible with a range of operating systems, including Linux, Android, Debian, and Ubuntu, making it perfect for developers, hobbyists, and enthusiasts. Whether you're looking for a compact computer for projects, prototyping, or learning, the Orange Pi 5B is an excellent choice.

Unlock the full potential of the Orange Pi 5B with its advanced features, including a built-in AI accelerator NPU with up to 6 TOPS, supports INT4 INT8 INT16 mixed operation, and a high-performance 3D graphics engine and 2D graphics engine. The Orange Pi 5B also features a range of connectivity options, including USB 3.1, USB 2.0, and Type-C, as well as HDMI 2.1 and DisplayPort for high-resolution video output.

Elevate your projects with the Orange Pi 5B's advanced specifications, including a Rockchip RK3588S SoC, 8-core 64-bit processor, and 4GB of RAM. The Orange Pi 5B also features a range of expansion ports, including UART, PWM, I2C, SPI, CAN, and GPIO interfaces, making it perfect for DIY projects and prototyping. With its compact design and advanced features, the Orange Pi 5B is an excellent choice for anyone looking for a high-performance single board computer.

Discover the possibilities of the Orange Pi 5B with its range of supported operating systems, including Linux, Android, Debian, and Ubuntu. The Orange Pi 5B is also compatible with a range of software applications, making it perfect for developers, hobbyists, and enthusiasts. Whether you're looking for a compact computer for projects, prototyping, or learning, the Orange Pi 5B is an excellent choice.

Immerse yourself in the world of single board computers with the Orange Pi 5B, a high-performance compact computer designed to deliver exceptional results. With its advanced features, range of connectivity options, and compact design, the Orange Pi 5B is an excellent choice for anyone looking for a high-performance single board computer.

• SoC: Rockchip RK3588S (8nm L process)
• CPU: 8-core 64-bit processor Big.Little Architecture 4 Cortex-A76 and 4 Cortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency
• GPU: Arm Mali-G610 MP4 Compatible with OpenGL ES1.1 2.0 3.2, OpenCL 2.2 and Vulkan 1.2 3D graphics engine and 2D graphics engine
• NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4 INT8 INT16 mixed operation
• PMU: RK806-1
• RAM: 4G/8G/16GB (LPDDR4 4X)
• Memory: 32G/64G/128G/256G eMMC MicroSD (TF) Card Slot
• USUSB: 3.1 1USB2.0 2Type-C (USB3.1) 1
• Video Output: HDMI2.1, up to 8K 60Hz DP1.4 (DisplayPort), maximum output resolution up to 8K 30Hz 2 MIPI D-PHY TX 4Lane, configurable up to 4K 60Hz
• Camera: MIPI CSI 4Lane 2 MIPI D-PHY RX 4Lane
• Audio: CODEC ES8388 3.5mm headphone jack audio input output Input Onboard MIC HDMI 2.1 eARC
• Ethernet: 10 100 1000Mbps Ethernet
• Expansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces
• Wi-Fi BT module: On-board Wi-Fi6 BT 5.3 module, Wi-Fi6 interface PCIe, BT interface PCM UART
• Button: 1 MaskROM key, 1Recovery key, 1 On Off key
• Power Source: Support Type-C power supply, 5V 4A
• LED: Power indicator red Status indicator green
• Debugging: 3 Pin debug serial port (UART)
• Supported OS: Orangepi OS(Droid), Orangepi OS(Arch), Debian11, Ubuntu22.04, Ubuntu20.04, Android12

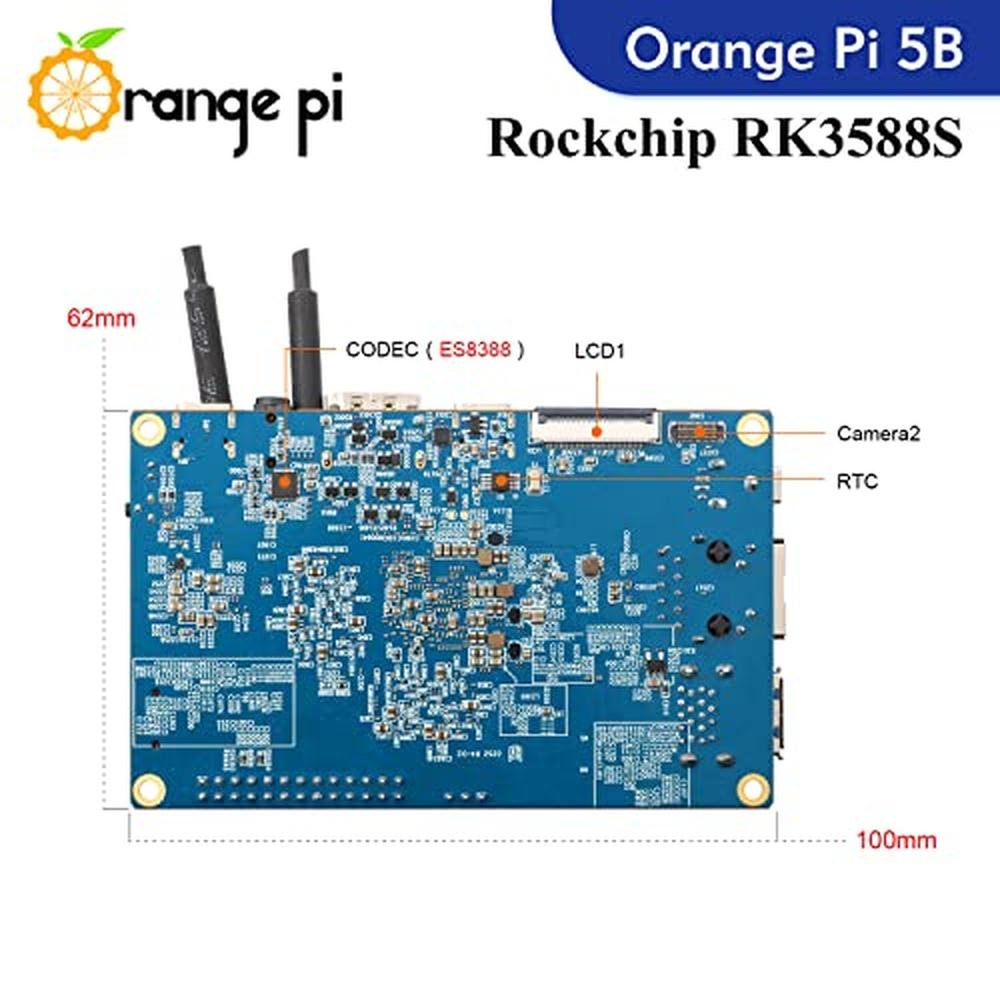

• Dimension: 62mm*100mm
• Weight: 52g
