PROCET Gigabit PoE Extender, 1 in 2 Out Ethernet Splitter, 20 IEEE802.3at/PoE+ Output (Total 60W) & IEEE802.3bt/PoE++ Input, 10/100/1000Mbps, IP40, -4F, 6kv Surge Protection, PT-PEX02GB

Product Description

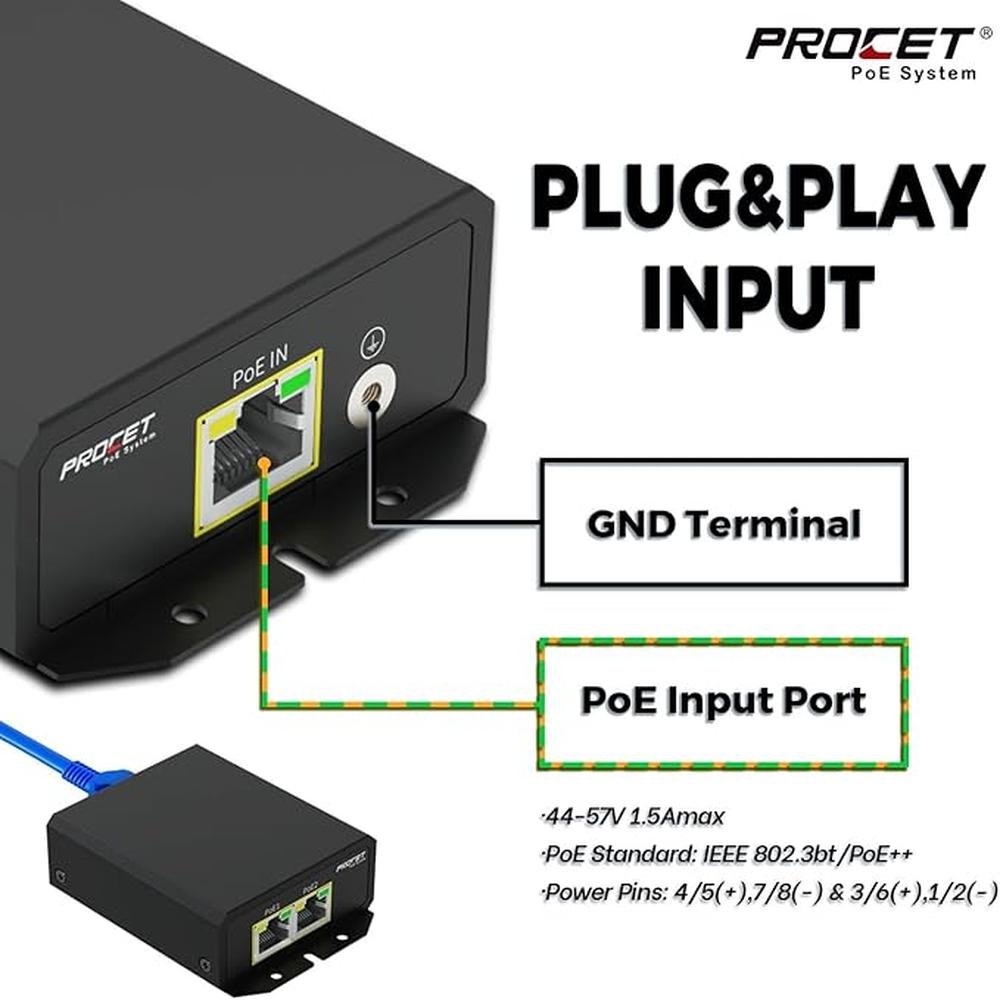

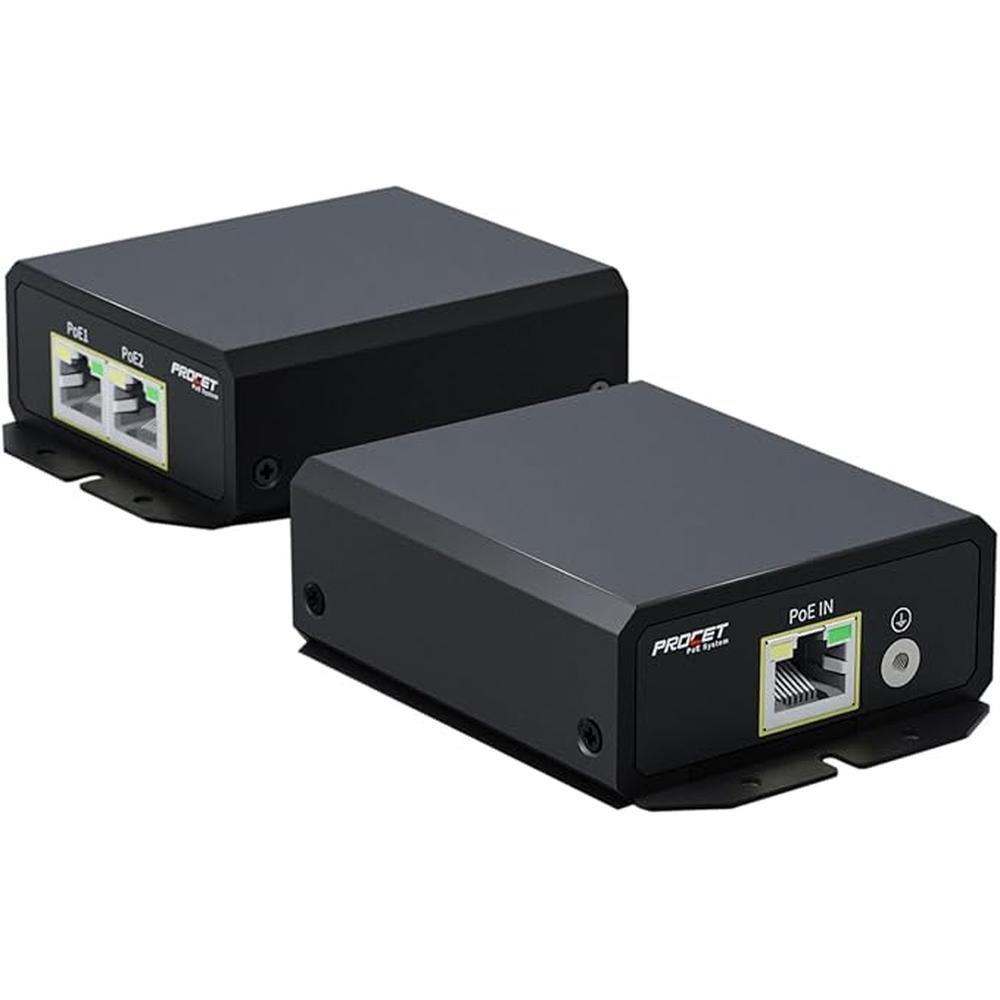

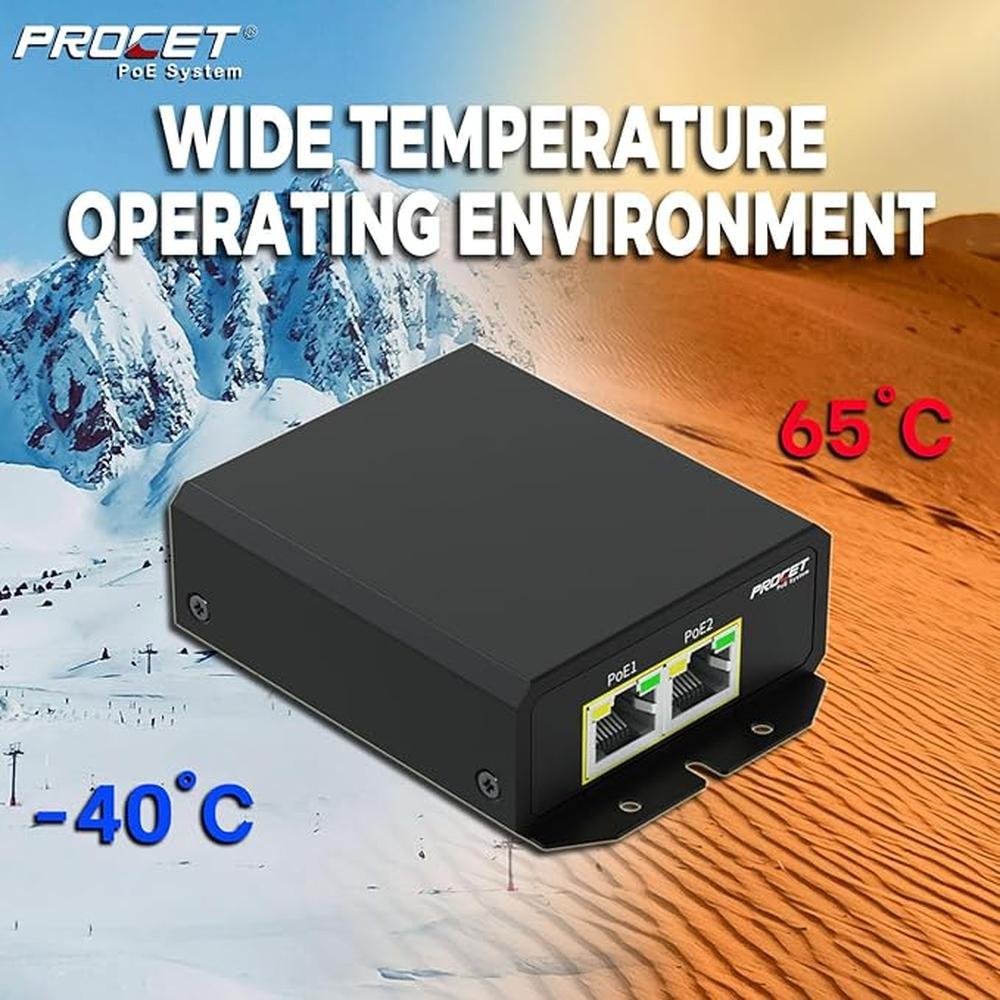

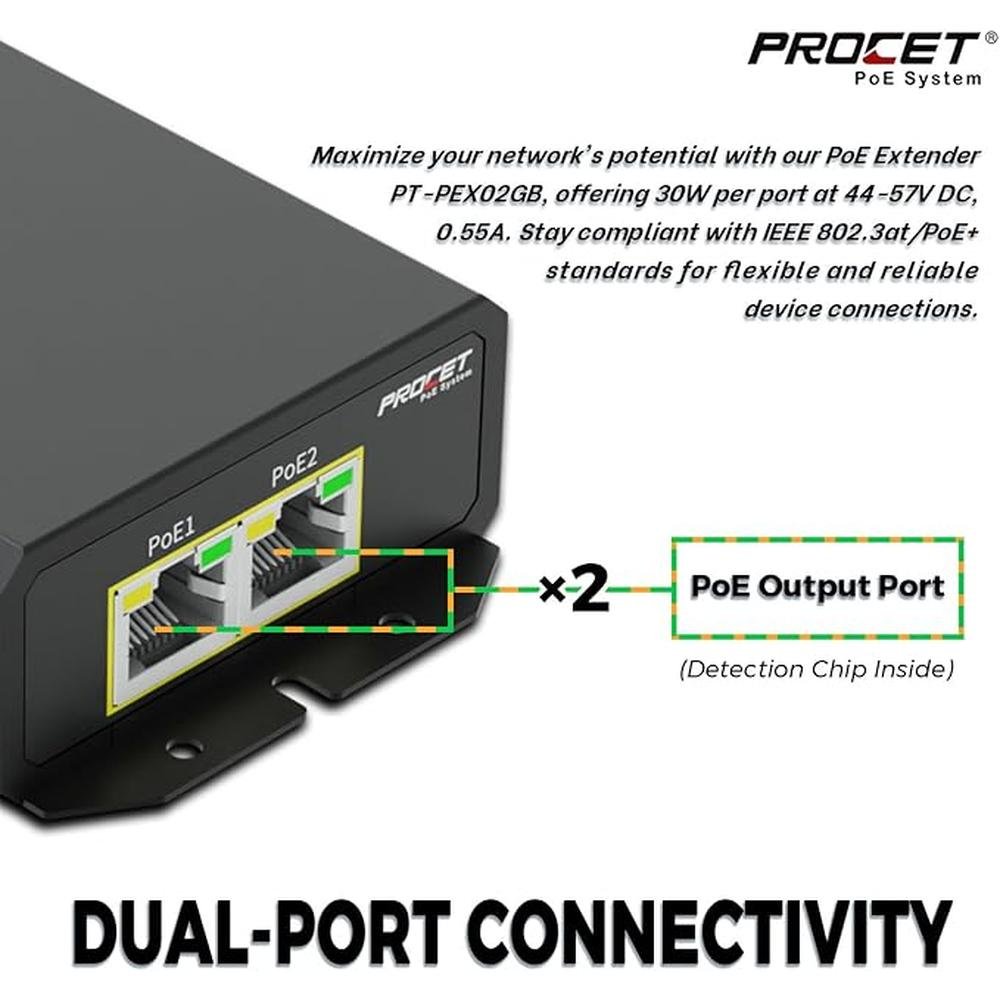

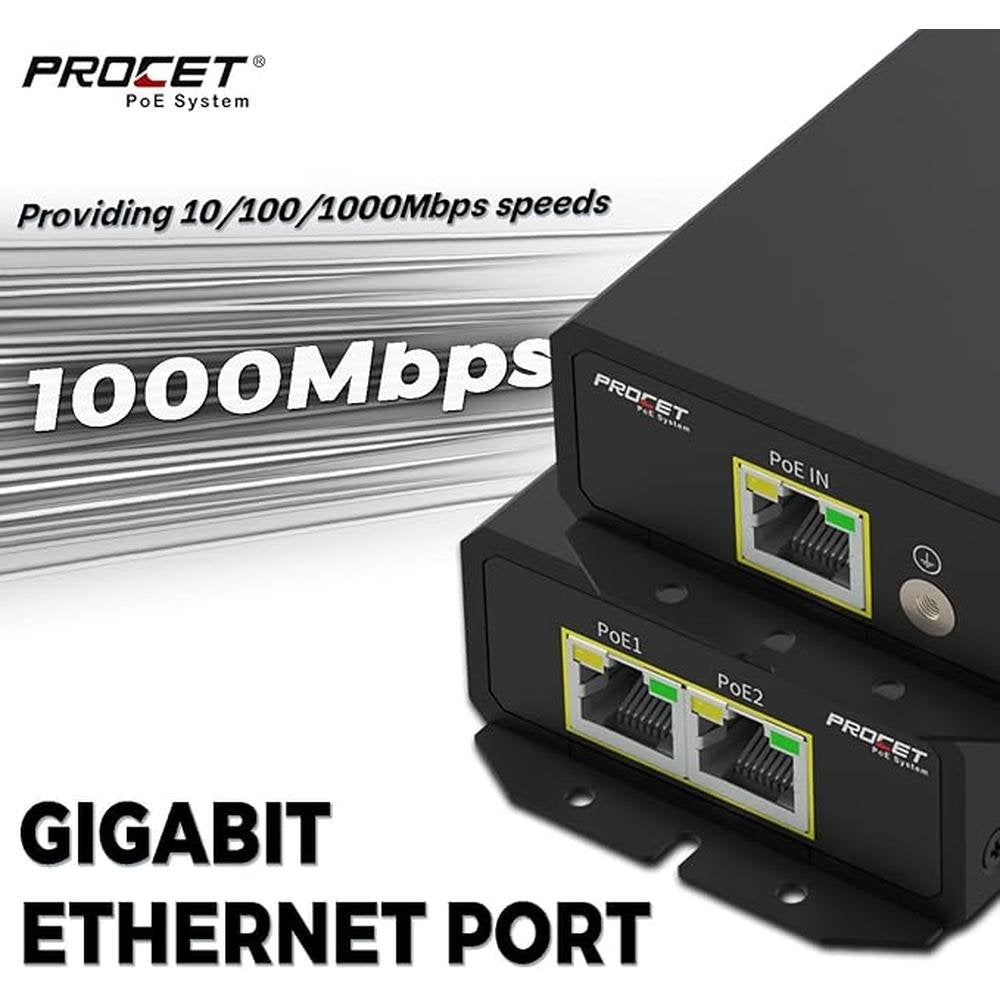

Experience reliable and efficient network expansion with the PROCET Gigabit PoE Extender, a cutting-edge 1 in 2 out Ethernet splitter designed to meet the demands of modern networking applications. This powerful device supports 2×IEEE802.3at/PoE+ output, delivering a total of 60W, and features 1×IEEE802.3bt/PoE++ input for seamless power and data transmission. With Gigabit Ethernet capabilities, achieving speeds of 10/100/1000Mbps, this extender is perfect for powering IP cameras, VoIP phones, and other PoE-enabled devices. Built to withstand harsh environments, the PROCET PoE Extender boasts an IP40 rating and operates within a wide temperature range. The PT-PEX02GB is an industrial-rated PoE Extender with two PoE output ports, specially designed for complex backhaul and networking applications. Enclosed in a high-impact metal shell, the device includes 1 x PoE-powered input port with 802.3bt PoE at 60W or higher of 95W(Max) and 2 x PoE output ports with 6KV (10700us) surge protection. Each output port delivers 30W(Max) power for remote two PDs, totaling up to 60W. The PoE Input port requires more power, which is powered by ultra 802.3bt PoE, working with an input voltage of 44- 57Vdc and operating under -40 to 65 degrees Celsius. Equipped with a detecting chip inside, the device makes the PoE identification handshake with IEEE802.3af/at PoE PDs, such as wireless APs, IP cameras, base stations, Microwave radio, and other PoE power Ethernet backhaul devices. For planning purposes, the total effective distance from Ultra PoE to PDs is 200 meters over CAT5e/CAT6 cables without local power.
