Analog Test | SGEF CCTV Tester 4-in-1 Portable Camera HD 8MP AHD TVI CVI CVBS | 4.3 Inch LCD Monitor

Product Description

The SGEF CCTV Tester is a premium, high-end, 4-in-1 portable camera testing solution, ideal for professionals in the security and surveillance industry. With its 4.3-inch LCD monitor, this advanced analog test equipment allows for efficient testing of HD 8MP AHD, TVI, CVI, and CVBS analog cameras. The device features a 12V power output, PTZ control, and UTC OSD control, making it a comprehensive tool for analog tester applications. Whether you're installing, maintaining, or troubleshooting analog video systems, the SGEF CCTV Tester is a reliable and convenient solution. Its compact design and user-friendly interface make it easy to use in various settings.

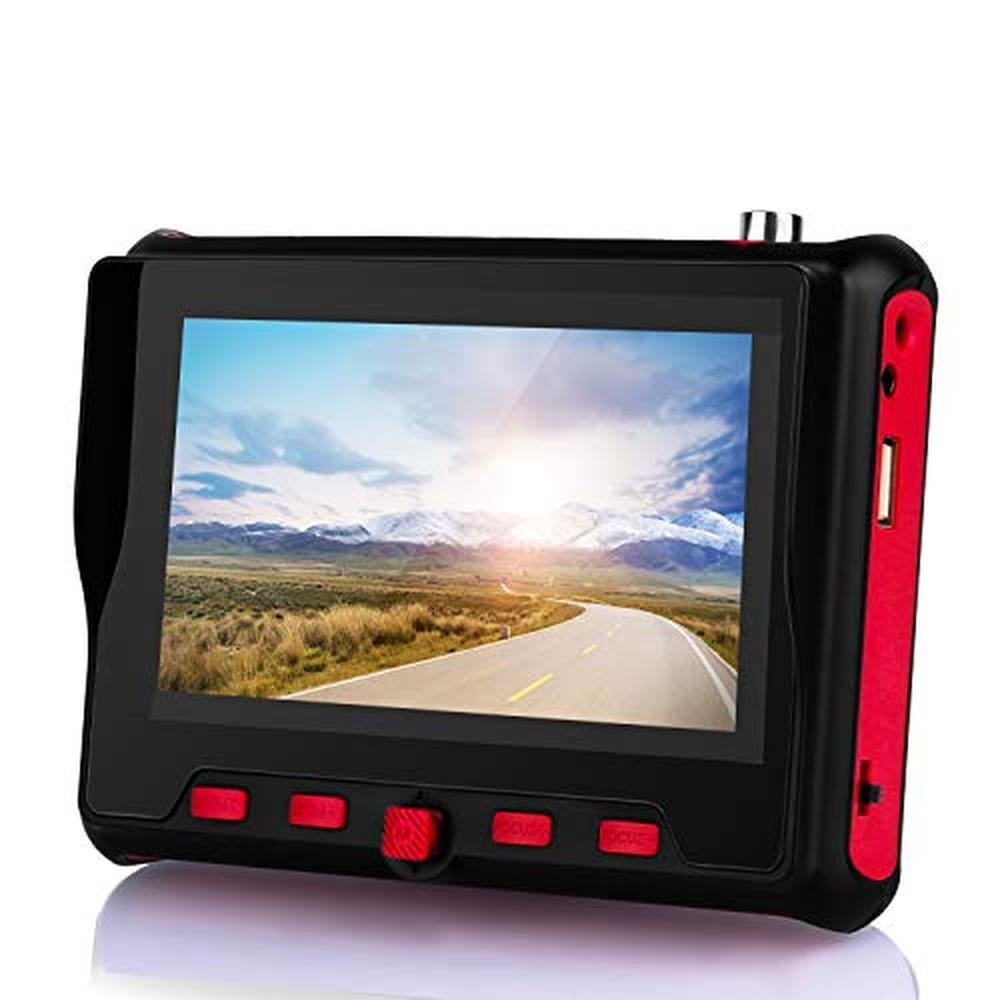

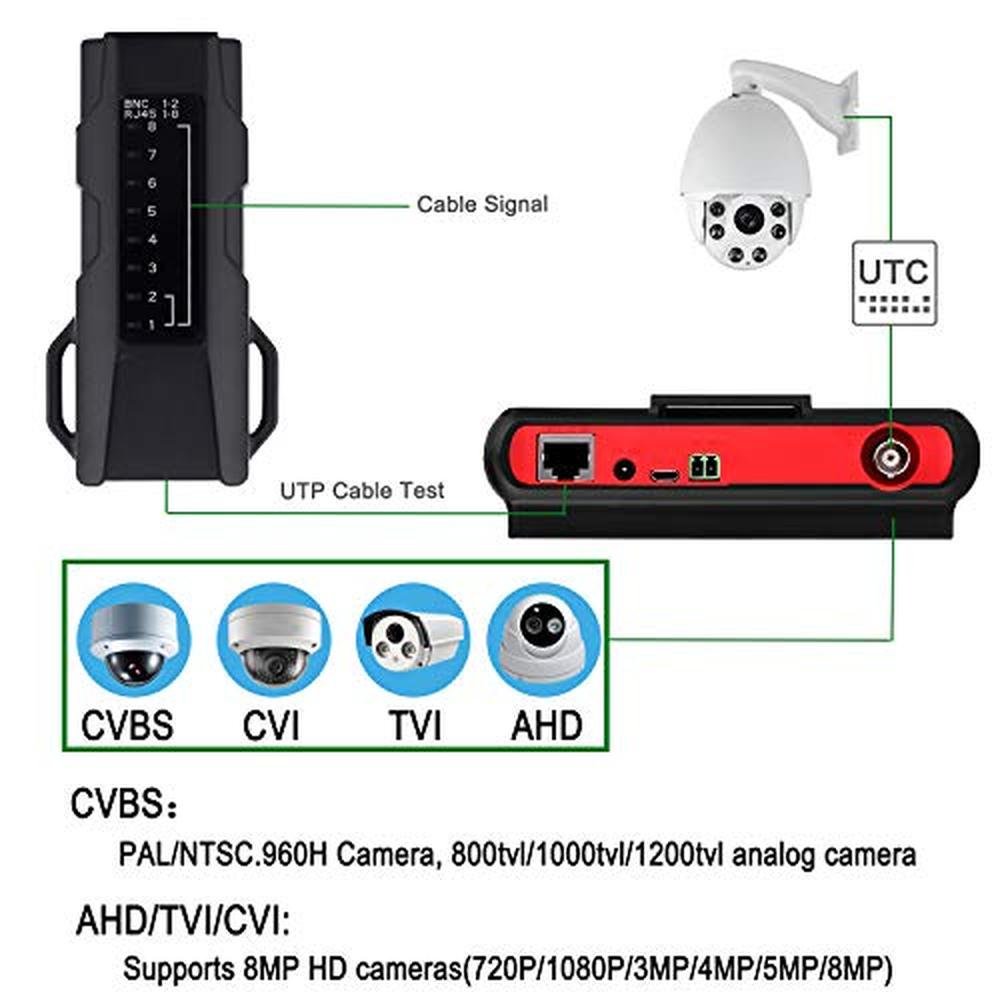

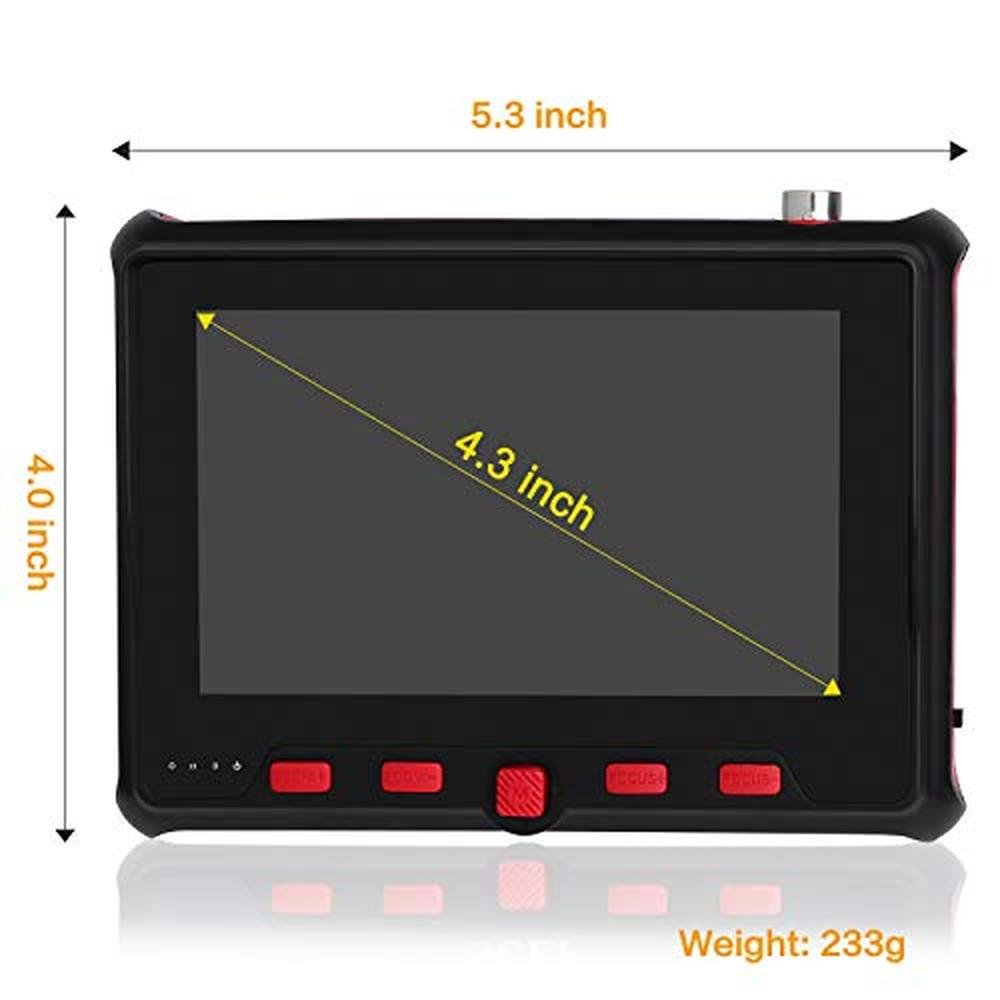

The 6300-W tester is simple in design, easy to operate, and easy to carry, making it easy for Central TV technicians or installers to install and maintain CCTV systems and increase productivity by reducing field time. The CCTV TESTER has a 4.3-inch 480X272 Resolution Screen and is a 4 in 1 PAL/NTSC (Auto adapt) tester. The hybrid camera tester is able to test and debug coaxial 720P / 960P / 1080P /3MP/4MP/5MP/8MP AHD camera & CVI camera & TVI camera & CVBS analog camera (Does not support IP cameras), with video display. The LCD screen video monitor with high resolution can show clear image when troubleshooting a security camera system, correct faraway installation.

PTZ CONTROL supports RS485 and Coaxial control, Compatible with multiple PTZ protocols (PELCO-D / PELCO-P ); baud rate: 2400, 4800, 9600, 19200 (optional), zooms in/out the lens, adjusts the focus, aperture/sets, PTZ continuing rotate test. UTC CONTROL allows for UTC Control /Call OSD menu, Press and hold the M menu button for 5 seconds to enter, UTC is displayed at the top of the screen. Press the menu button to bring up the camera menu and operate the UTC menu with the up / down / left / right input keys. Press the M menu button for 5 seconds to exit UTC mode.

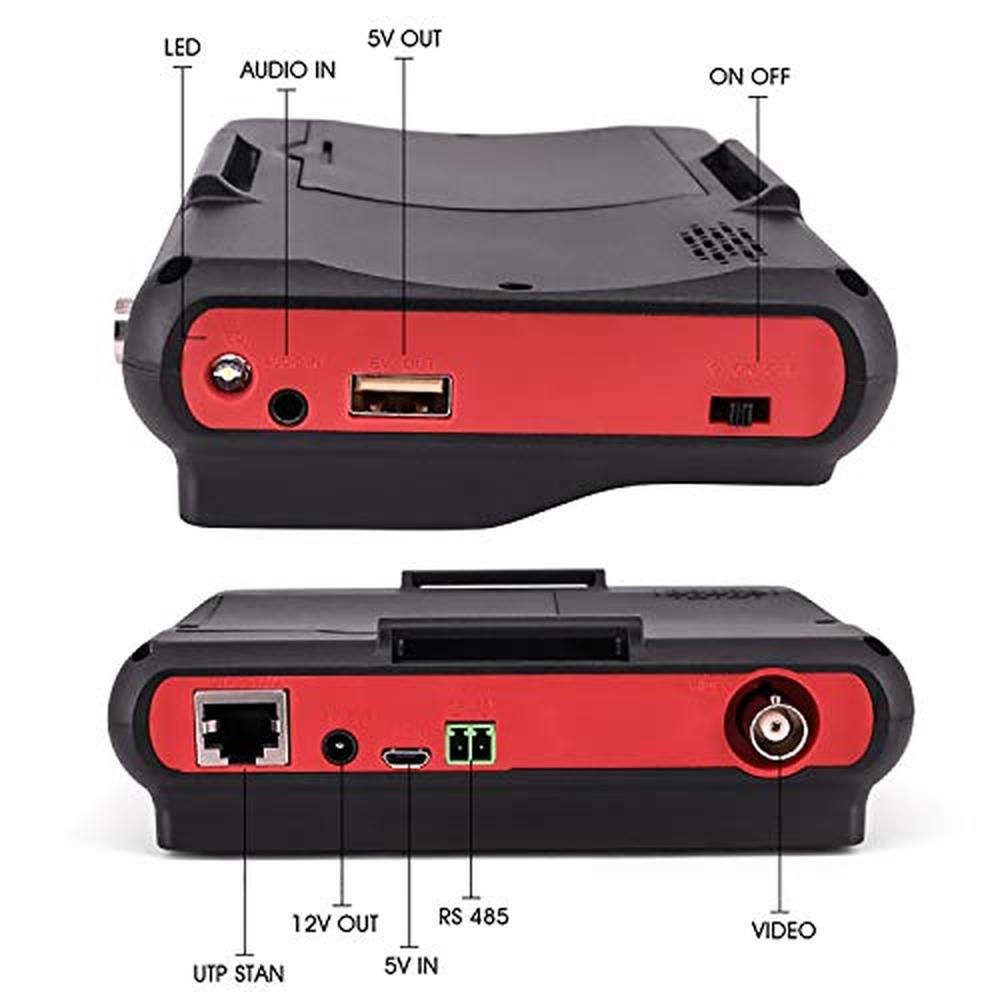

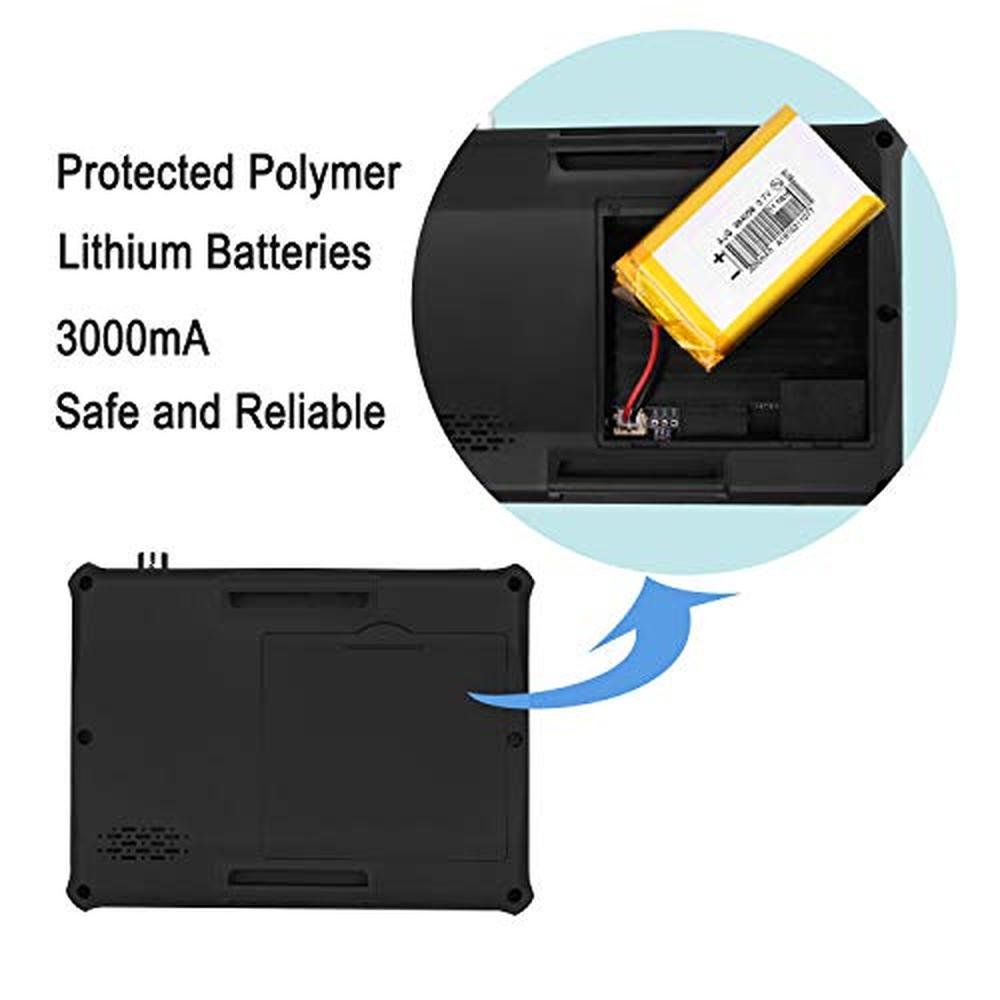

APPLICATION includes UPT/LAN cable, measure the connecting status, display the sequence of connection and the NO, Audio test, and multilingual OSD, supports 12 languages to choose from. The brightness and contrast and color saturation can be adjustable. USB2.0 interface provides 5V / 1A emergency power output, DC 12V /1A power output from the tester. LONG WORK TIME is ensured with a built-in 3.7V 3000 mAh rechargeable Lithium polymer battery, LED emergency lighting; After charging 2-3 hours, it can work for 6 hours.
