VisionFive2 Open Source RISC-V Single Board Computer, Quad-core StarFive JH7110 64-bit CPU, LPDDR4 8GB RAM 3D GPU, Dual Gigabit Network M.2 M-Key Port, Support Linux (Bundle 3-with WiFi 6 Dongle)
(-8%)
Save 9%Brand: WayPonDEV
Deliverable in 10+Business Days
Key Points
- High Performance VisionFive2 Mini PC Integrated StarFive JH7110 with RISC-V U74 quad-core CPU, with 2MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHz. Paired with IMG BXE-4-32 MC1 3D GPU,work frequency up to 600 MHz (400 MHz by default).Suport with Vision DSP, NVDLA engine, and neural network engine for AI acceleration.
- OpenGL and FFMpeg Support VisionFive2 RISC-V Single Board Computer Integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2 and Vulkan 1.2 supports running OpenGL, Vulkan and FFMpeg demos.

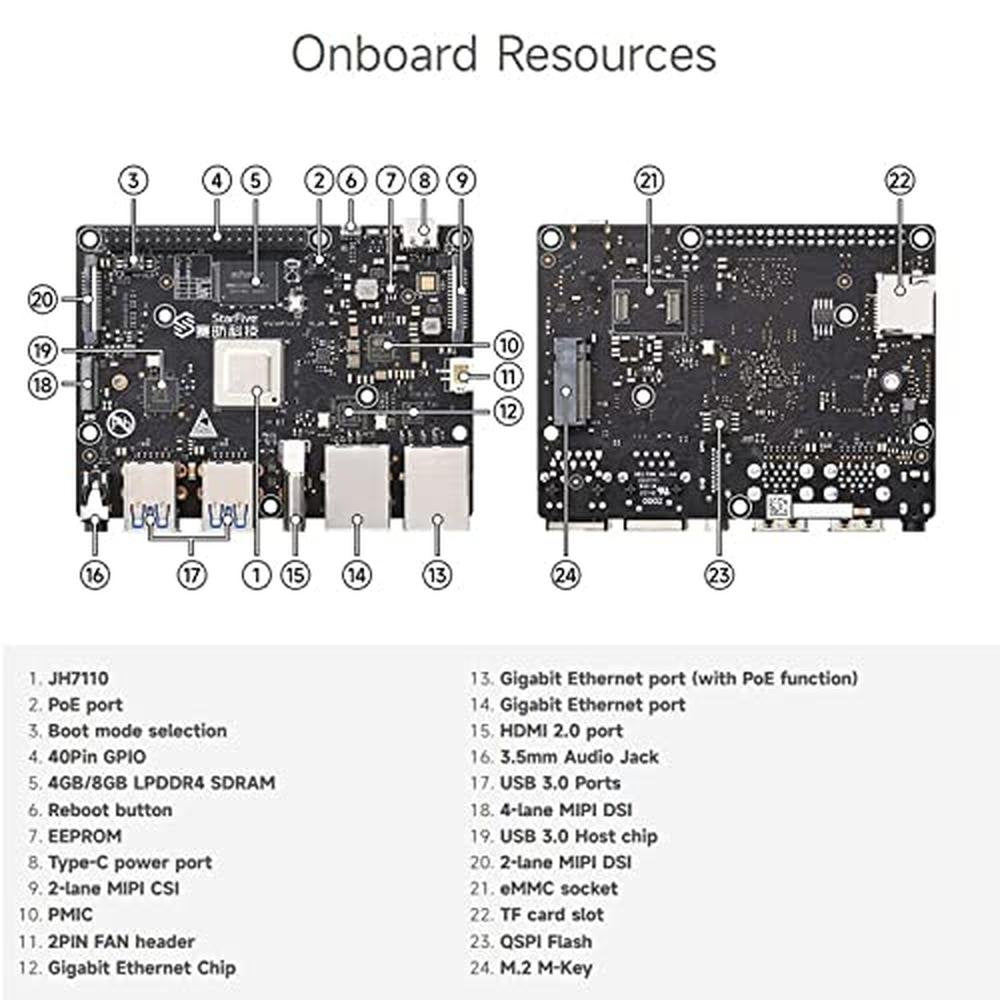

- Rich Interface M.2 connector, eMMC socket,1000M Network Port and WiFi Slot 40 Pin GPIO Header, 2x RJ45 Ethernet Connector and Micro-SD card slot 2 x USB 3.0 ports,2 x USB 2.0 ports,1 x USB Type-C port TF card slot and Flash etc.
- Multi-Function Powerful Performance, Open Source Application Environment, And Rich Software Ecology, More Possibilities For VisonFive 2, while compatible with Raspberry Pi series boards.
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

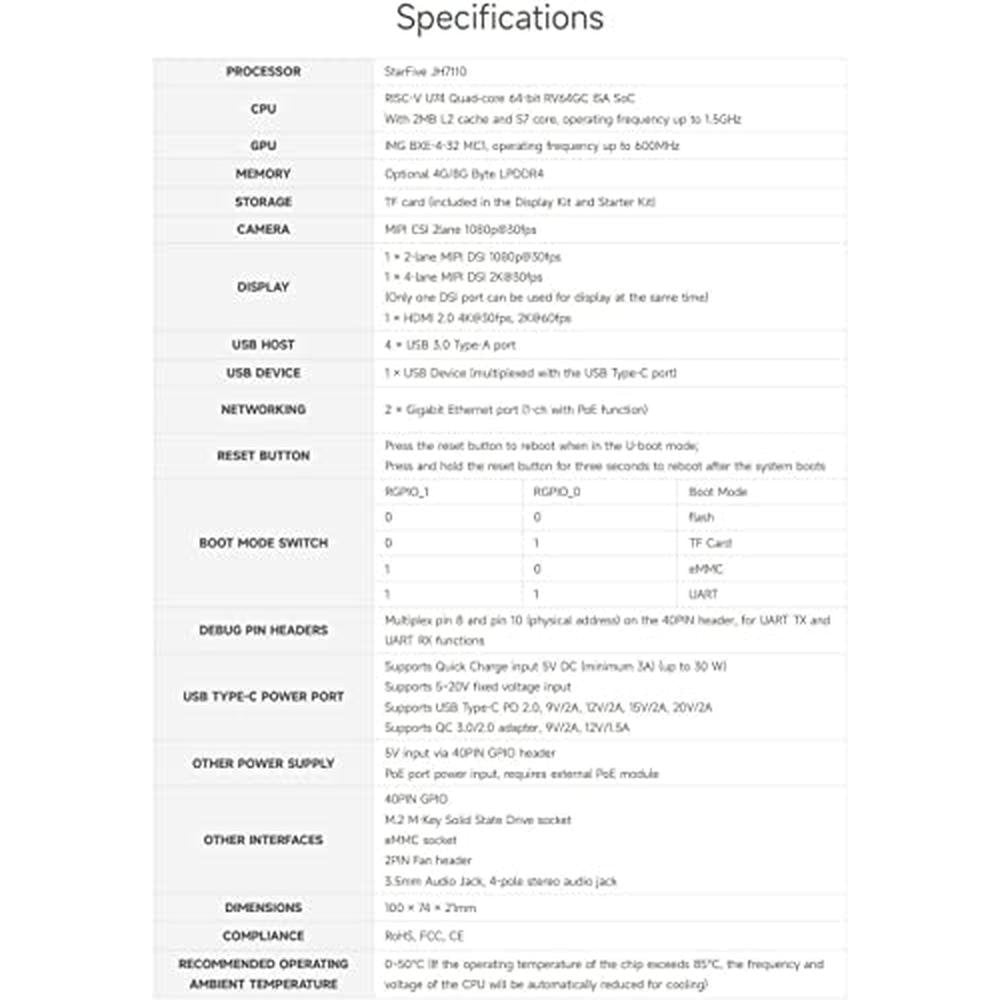

-Specification- Processor StarFive JH7110 with RISC-V U74 quad-core with 2 ML2 cache and S7 monitor core, supporting RV64GC ISA, working uto 1.5 GHz IMG BXE-4-32 MC1 with work frequency uto 600 MHz (400 MHz by default) Memory 8GLPDDR4 (uto 2800Mbps) Storage Onboard TF card slot Flash -Video Output- 1 2-lane MIPI DSI display port, supporting uto 108030fps 1 4-lane MIPI DSI display port, supporting uto 2K 30fps in both single display and dual display modes 1 HDMI 2.0, supporting uto 4K 30fps or 2K 60fps Camera 1x 2-lane MIPI CSI camera port, supporting uto 4K (3840 x 2160) pixels 30fps -Encoder Decoder- Video Decoder supports uto 4K 60fps Support multi stream for H264 H265 Video encoder supports uto 108030fps and multi-stream for H265 JPEG encoder decoder -Peripherals- 2 x US3.0 ports nbs2 x US2.0 ports 40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART) 2x RJ45 Ethernet Connector Not WIFI 3.5 mm Audio jack (4-pole stereo audio output) M.2 Connector eMMC Socket 2 pin fan header Micro-SD card slot for system boot and data storage Power Supply Power 5V DC with PD, uto 30W Power Connector USType-C port or 40-pin GPIO header Dimension nbs100mm x 72 mm x 10mm -Operating Systems- mainstream Linux distributions Debian,Fedora,Ubuntu,openSUSE -Package Content- VisionFive 2 8GSingle Board Computer x 1 Wifi 6 dongle x 1 20W PD Power x 1, nbsPD nbsFast Charging Line x 1 Debug Serial Port x 1, nbsDupont Line x 1 Acrylic Case x 1, nbsFan x 1 -Technical Support- Please click WayPonDEV and ask a question. nbsPlease leave the message monica smartfire.cn (f------ gt ) skype monica_9122. p
Specifications & Details
| SKU | BMB0C2PPSG3D |
|---|---|
| Processor | 1.5 GHz |
| RAM | 8 GB LPDDR4 |
| Memory Speed | 600 MHz |
| Wireless Type | 802.11b/n/ac |
| Number of USB 2.0 Ports | 2 |
| Brand | WayPonDEV |
| Series | VisionFive2 Open Source RISC-V Single Board Computer |
| Item model number | VisionFive2 RISC V Single Board Computer |
| Hardware Platform | PC |
| Operating System | Debian, Linux |
| Item Weight | 0.301 kgs |
| Product Dimensions | 3.94 x 2.83 x 0.39 inches |
| Item Dimensions LxWxH | 3.94 x 2.83 x 0.39 inches |
| Color | 8GB with Wifi 6 dongle |
| Processor Brand | StarFive |
| Number of Processors | 4 |
| Power Source | PD 20W |
| Manufacturer | WayPonDEV |
| Is Discontinued By Manufacturer | No |
