RS232 RS485 to Ethernet Converter | Waveshare Serial Server Dual Channels Independent Operation | Premium Grade

Product Description

The Waveshare RS232 RS485 to RJ45 Ethernet Serial Server is a high-end device designed to facilitate seamless communication between serial devices and Ethernet networks. With its dual-channel independent operation, this serial server supports both RS232 and RS485 protocols, allowing for flexible and reliable data transmission. The device features dual Ethernet ports, providing a common network port for effortless connectivity. As a versatile RS232 RS485 to Ethernet converter, it enables users to easily integrate serial devices into their network infrastructure. Whether you're looking for a reliable RS232 RS485 converter or seeking to understand the RS232 RS485 difference, this serial server is an ideal solution. With its robust design and advanced features, it is perfect for applications like data acquisition, IoT gateway, safety security IoT, and intelligent instrument monitoring.

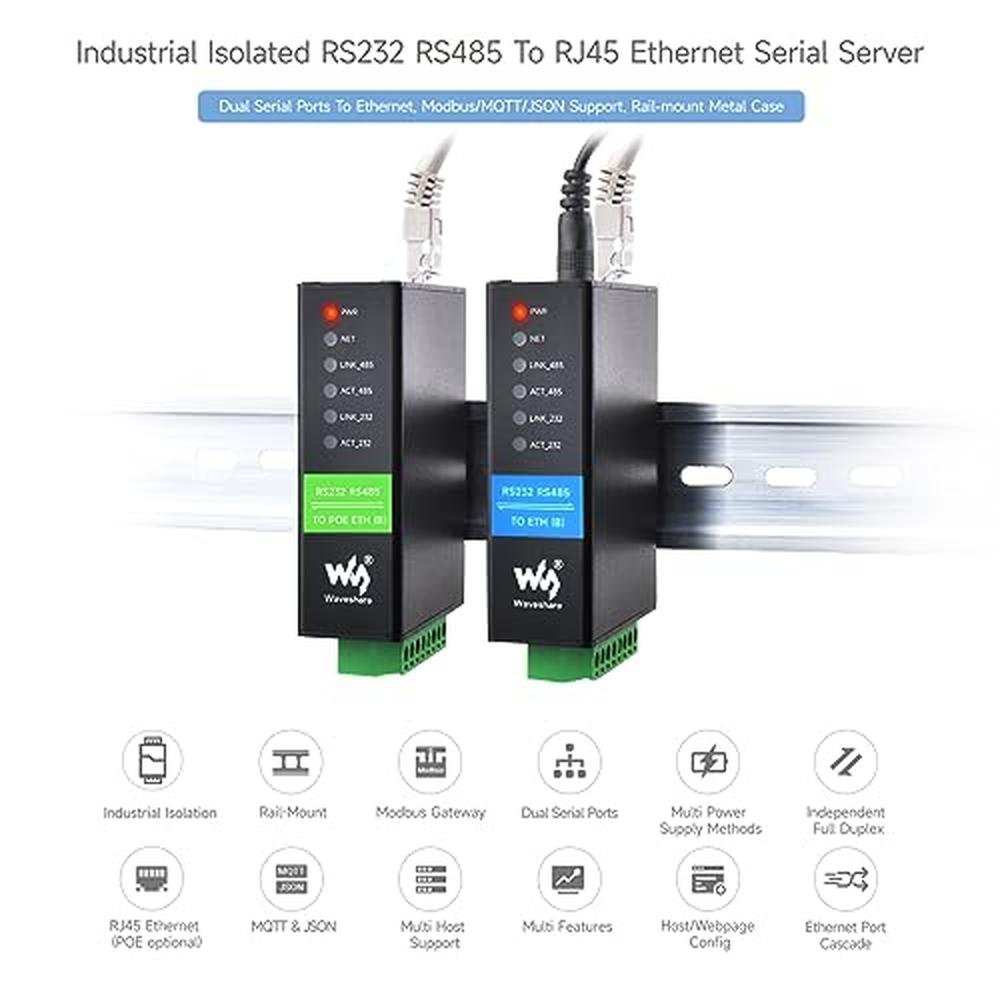

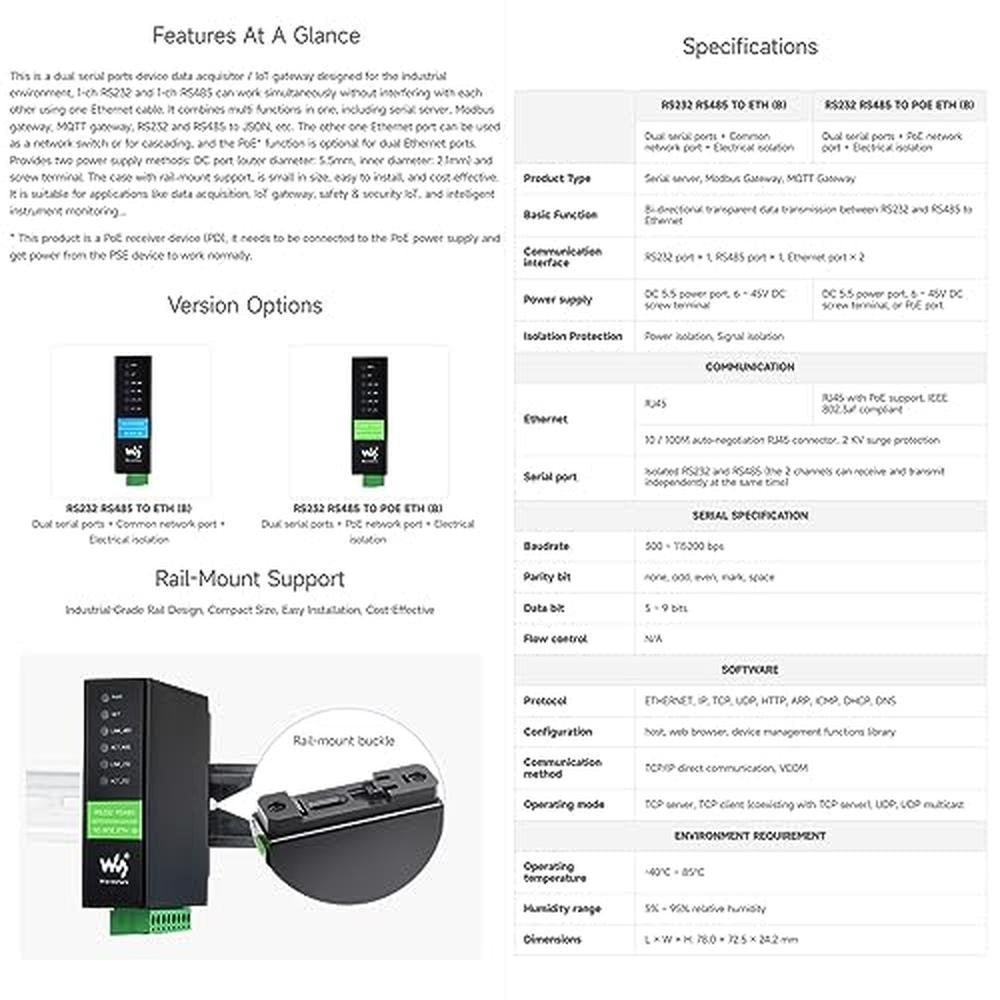

Overview: This is a dual serial ports device data acquisitor IoT gateway designed for the industrial environment, 1-ch RS232 and 1-ch RS485 can work simultaneously without interfering with each other using one Ethernet cable. Provides two power supply methods DC port and screw terminal. It is suitable for applications like data acquisition, IoT gateway, safety security IoT, and intelligent instrument monitoring. Specifications: Basic Introduction: Item Dual serial ports Common network port Electrical isolation. Product Type: Serial server, Modbus Gateway, MQTT Gateway. Basic Function: Bi-directional transparent data transmission between RS232 and RS485 to Ethernet. Communication interface: RS232 port x 1, RS485 port x 1, Ethernet port x 2. Power supply: DC 5.5 power port, 6-45V DC screw terminal. Isolation Protection: Power isolation, Signal isolation.

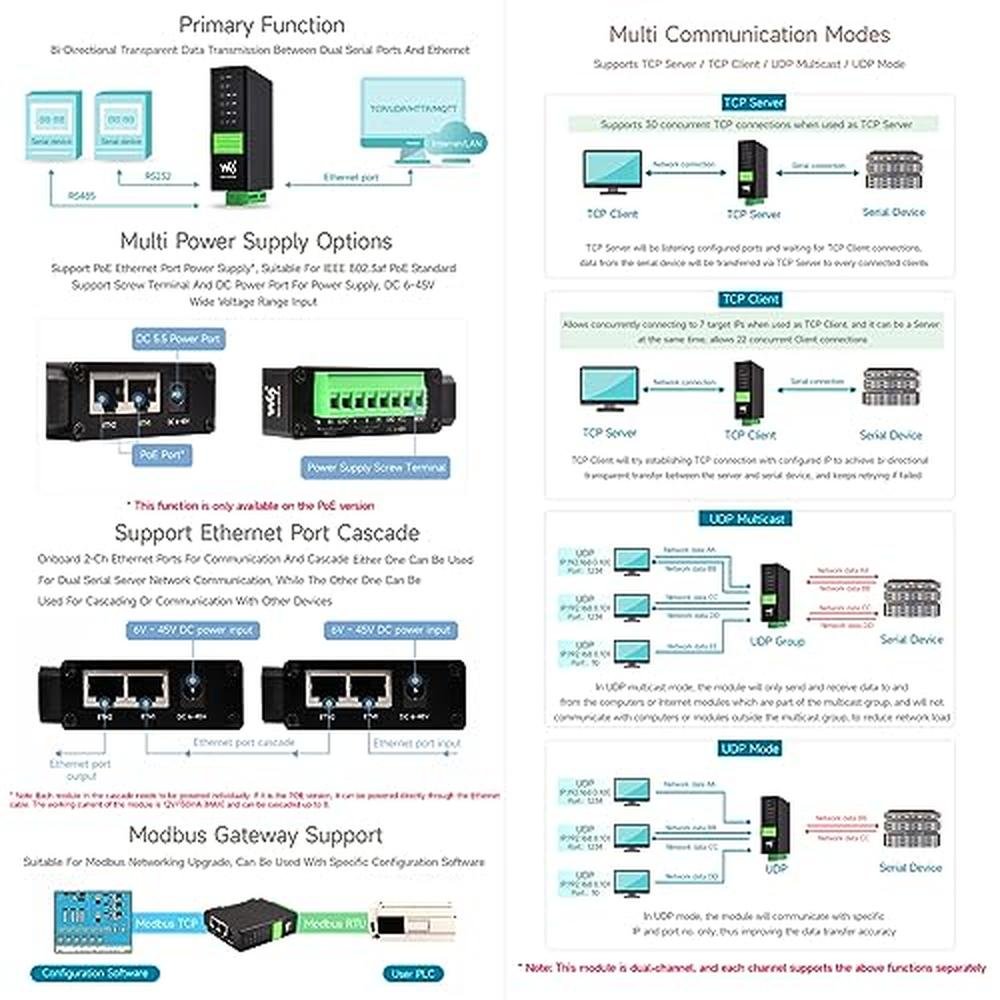

Communication: Ethernet RJ45, 10/100M auto-negotiation RJ45 connector, 2 KV surge protection. Serial port: Isolated RS232 and RS485 (the 2 channels can receive and transmit independently at the same time). Serial specification: Baudrate 300-115200 bps. Parity bit: none, odd, even, mark, space. Data bit: 5-9 bits. Software: Protocol ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS. Configuration: host, weowser, device management functions liary. Communication method: TCIdirect communication, VCOM. Operating mode: TCserver, TCclient (coexisting with TCserver), UDP, UDmulticast.

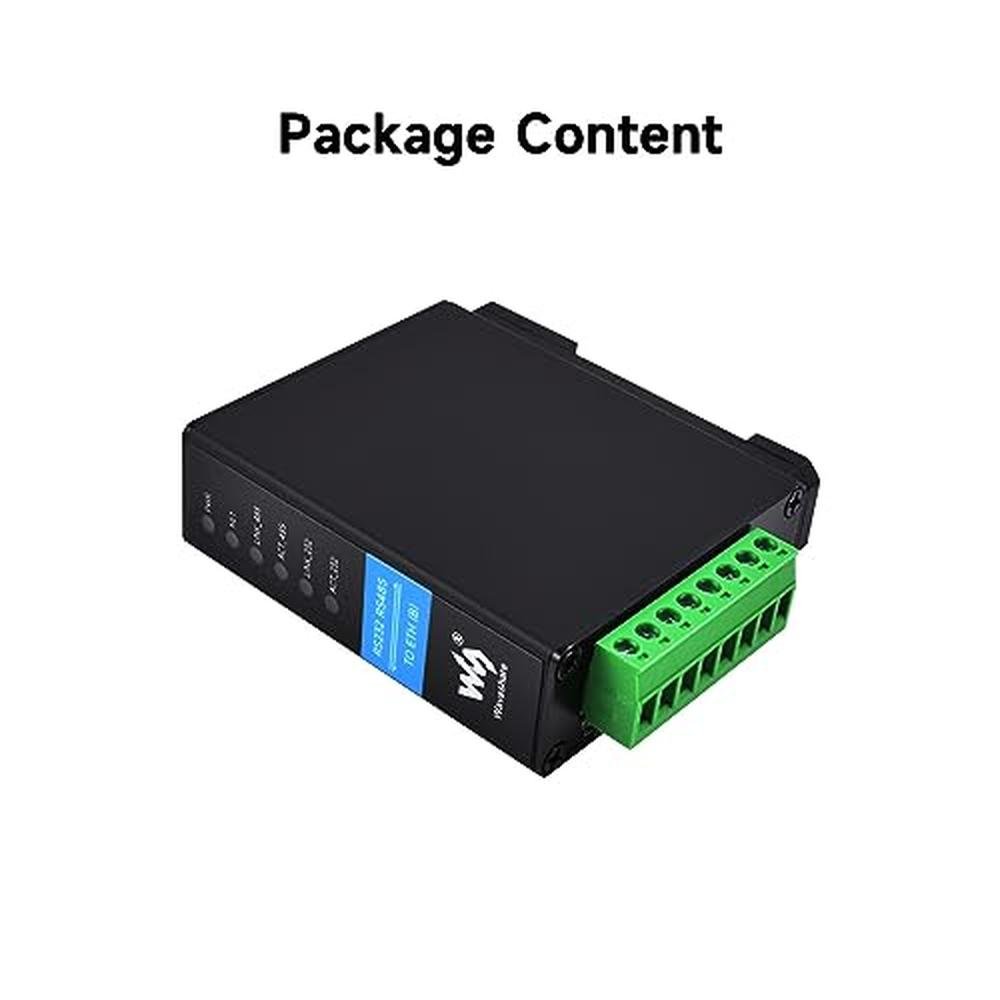

Environment requirement: Operating temperature -40-85. Humidity range: 5-95 relative humidity. Dimensions: L W H 78.0 72.5 24.2 mm. Online Tutorial: Online Document n9.cl tv910. Package Content: RS232 RS485 TO ETH (B) x1
