STLINK XFCZMG | XFCZMG STLINK-V3SET Modular In-Circuit Debugger and Programmer for STM32 and STM8 | Advanced Debugging Solution

Product Description

Experience the ultimate in debugging and programming with the XFCZMG STLINK-V3SET, a cutting-edge hardware debugger and programmer designed for STM32 and STM8 microcontrollers. As a modular in-circuit debugger, it offers unparalleled flexibility and ease of use, making it an ideal choice for developers and engineers. With its advanced features and compatibility with a wide range of devices, the STLINK-V3SET is the perfect tool for debugging and programming applications. Whether you're working on a complex project or just starting out, the XFCZMG STLINK-V3SET is the perfect solution for your STLINK needs, offering a reliable and efficient way to debug and program your STM32 and STM8 devices.

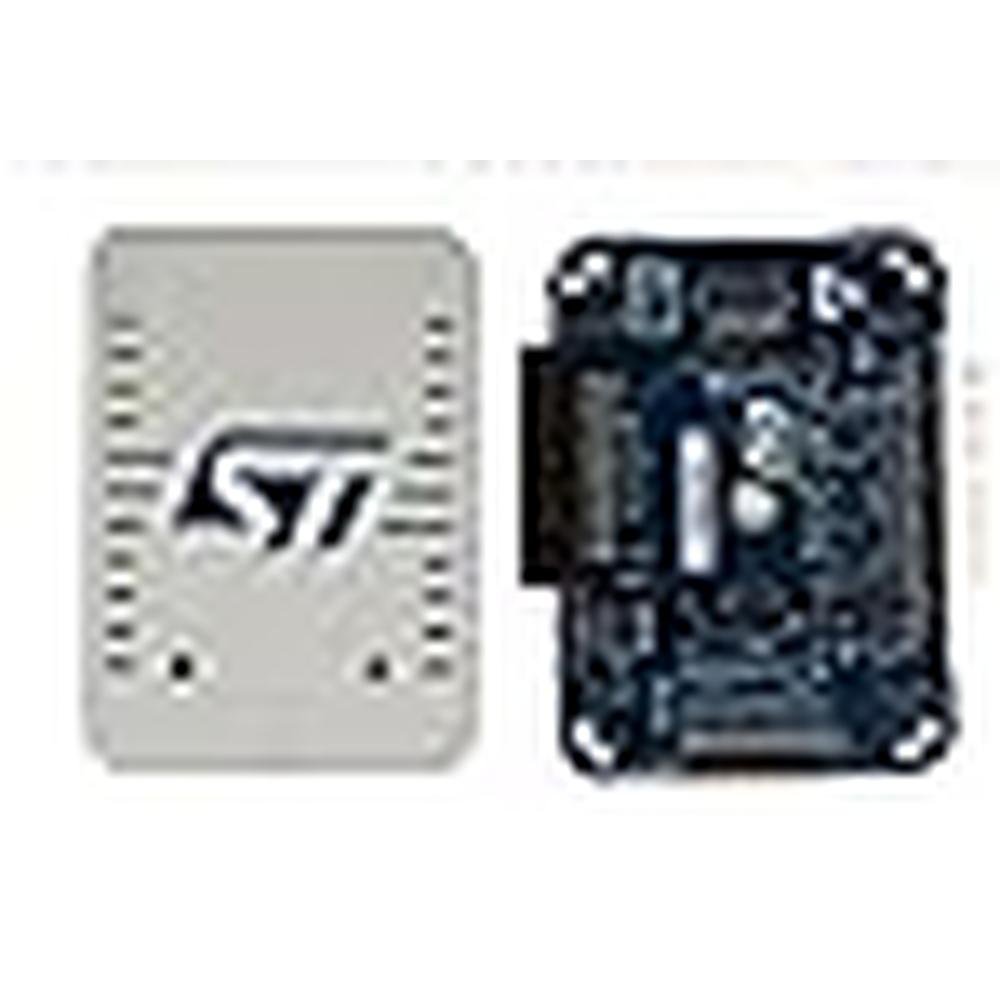

The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers, composed of a main module and a complementary adapter board. The SWIM and JTAG SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. The STLINK-V3SET also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I2C, CAN, GPIOs) allowing for instance the programming of the target through the bootloader. The STLINK-V3SET can provide a second Virtual COM port interface allowing the host PC to communicate with the target microcontroller through another UART (called bridge UART). Bridge UART signals, including optional RTS and CTS, are available on adapter board only (MB1440). The second Virtual COM port activation is done through a reversible firmware update, which also disables the mass storage interface (used for drag-and-drop flash programming). The modular architecture of STLINK-V3SET enables to extend its main features through additional modules such as the adapter board.
