Arducam for Raspberry Pi Camera 16MP IMX519 Camera Module with 120°(D) Wide Angle M12 Lens for Raspberry Pi and OpenHD
(-32%)
Save 32%Brand: Arducam | INDIA Warehouse
100% Genuine Products Guaranteed
Estimated Delivery: Jul 18th - Jul 19thKey Points
- 16MP for All Pis: Based on a 16MP IMX519 image sensor with a pixel resolution of 4656 x 3496, twice as high as the v2 camera and 40% higher than the HQ camera.
- V1/V2/V3 size: With a compact size of 25*24mm, this camera is perfect for drones and other embedded applications, providing excellent versatility.

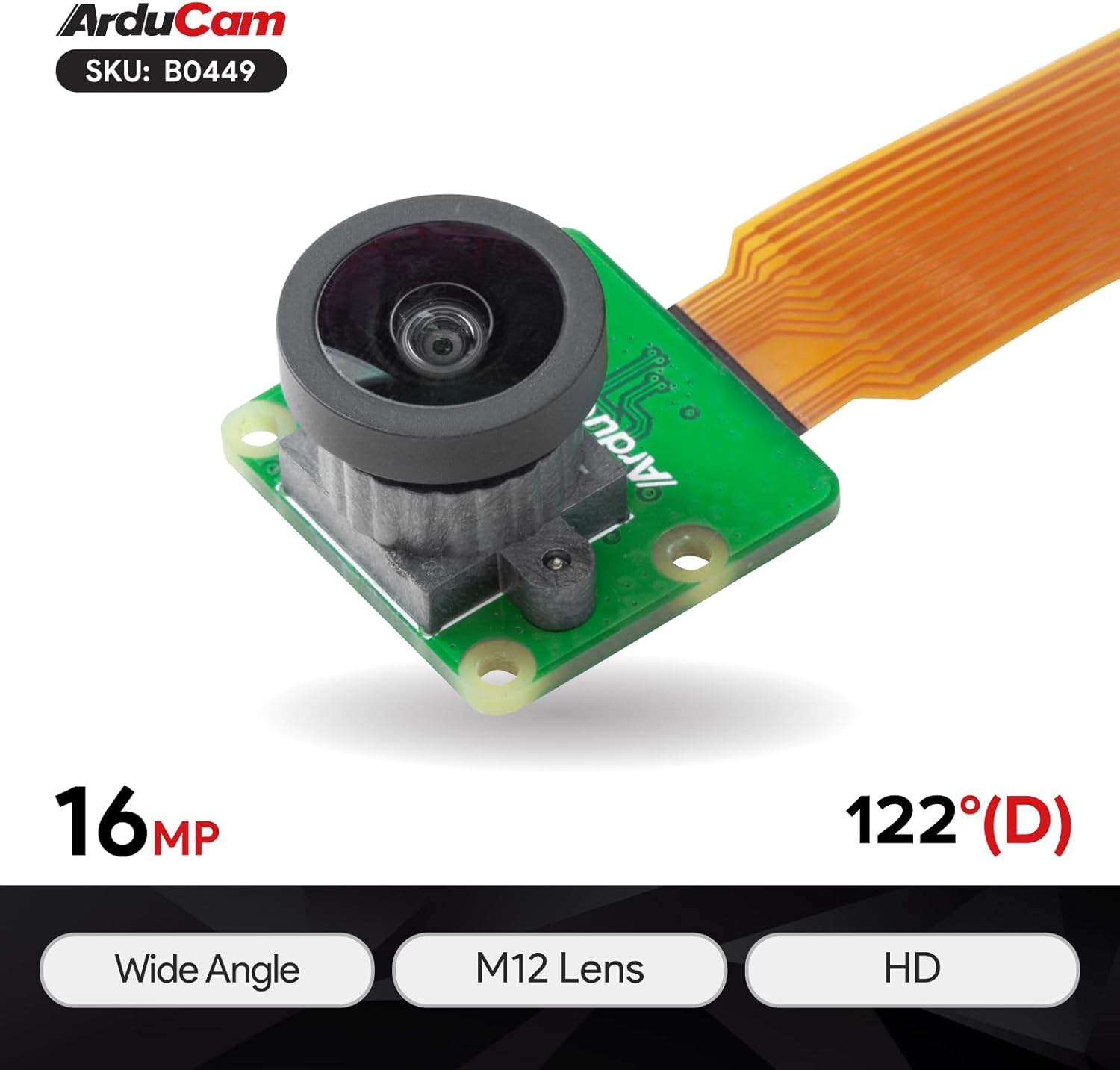

- M12 Manual Focus: Easy to manually adjust focus distance with the M12 HD lens, the 122° ultra-wide angle Lens captures exceptional detail and clarity for any project.
- Crisper Images/Video: Captures smooth and clear 1080p30 and 720p60 video, making it perfect for streaming or recording your next project.
Warranty / Shipping / Returns
- Free shipping on all orders
- No additional customs duties will be charged.
- 7-day return policy applies to all products (T&C apply).
- Tracking details will be emailed, along with customer support assistance.
Product Description

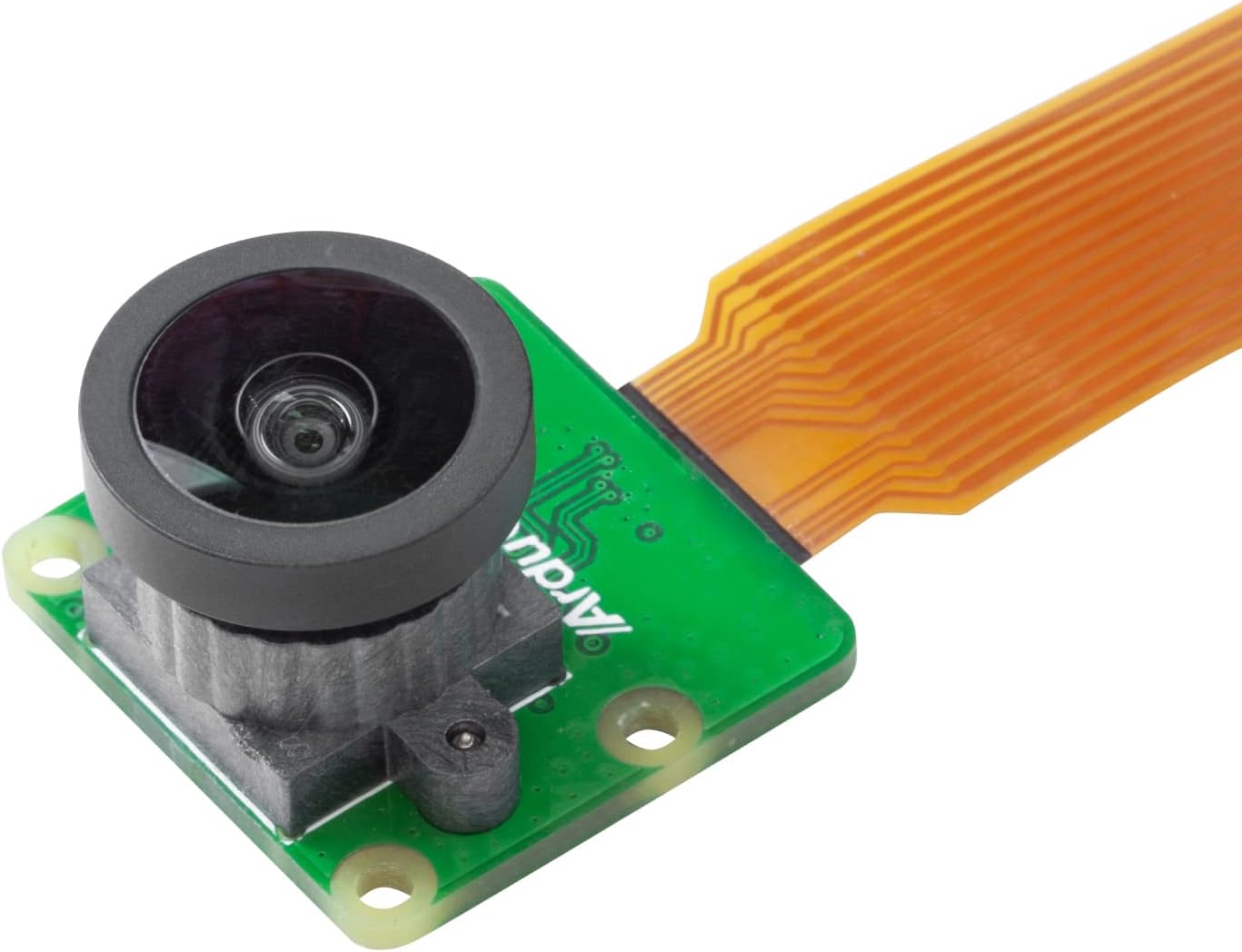

The Arducam IMX519 camera module is a high-quality camera designed for excellent image and video capture. With a 16MP high-pixel sensor and an M12 HD lens, it delivers exceptional image quality with clear details and vibrant colors.
The manual focus adjustment feature allows users to customize their photography and videography experience, while the wide FoV captures more details of the image.
Arducam is committed to creating diverse and convenient camera solutions for embedded camera users. We are not only engaged in the production and development of optical products but also strive to provide complete solutions for embedded cameras, optical components, etc.
NOTE:
When use this camera, please add dtoverlay=imx519,vcm=off under the line [all] For further information, please refer to: bit.ly/ArducamDocs-B0449
Specifications
| IMAGE SENSOR | IMX519 |
| Optical Size | Type 1/2.53" |
| Number of effective pixels | 4656(H)×3496(V) |
| Pixel Size | 1.22μm×1.22μm |

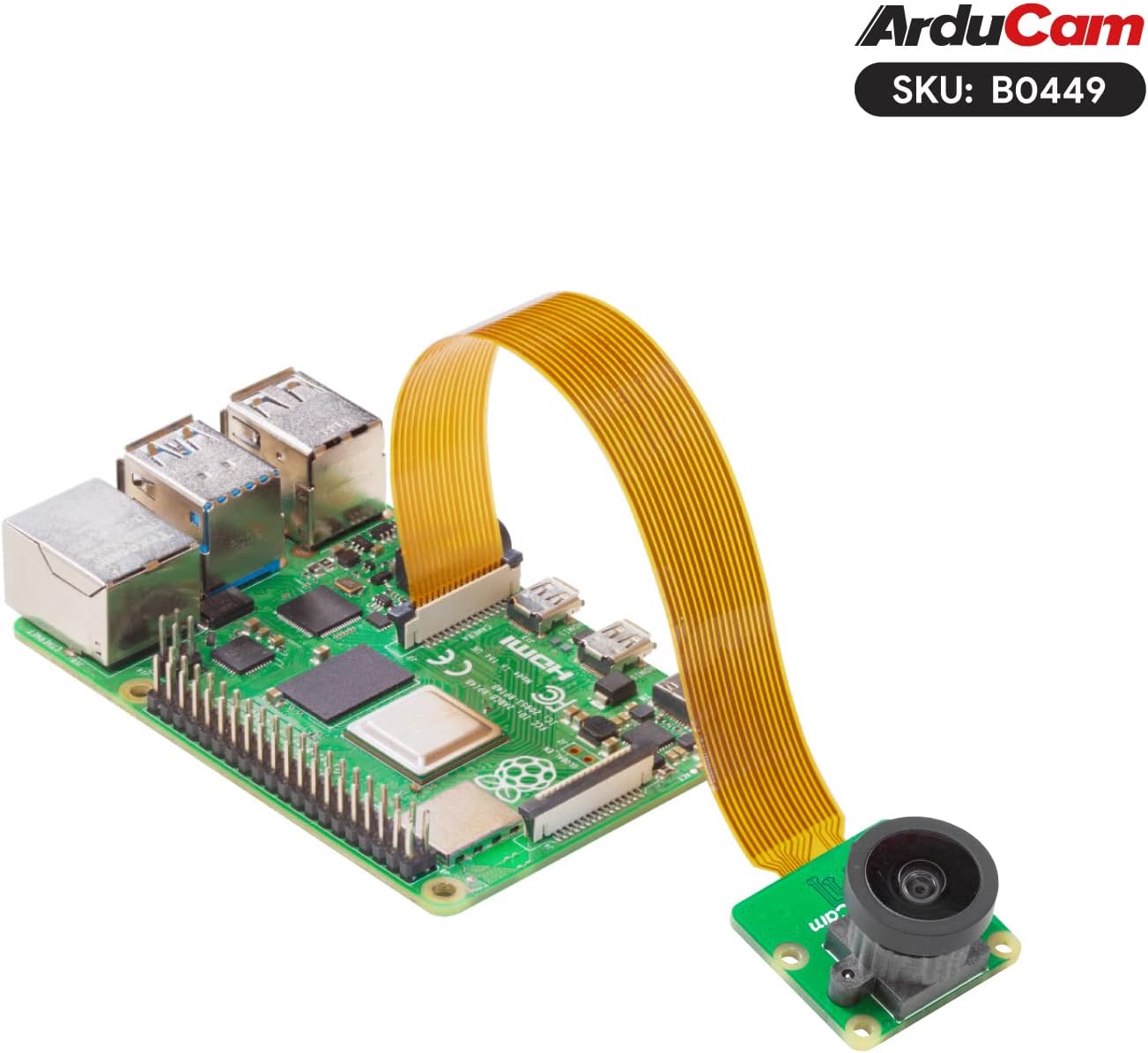

| Support Platform | Raspberry Pi 5/4/Jetson Nano |
| Shutter Type | Rolling shutter |
| Color Filter Array | Quad-Bayer RGB |
| Frame Rate | 1080p30, 720p60 |
| Output Format | RAW 10/RAW 8, COMP8 |
| F.NO | 2.85±5% |
| Focus Type | Manual Focus |
| Focal Length | 2.87±5% |
| Lens Size | M12*P0.5mm |
| Field of View(FOV) | 122°(D)×110°(H)×94°(V) |
| IR Sensitivity | Integral IR-cut Filter, visible light only |

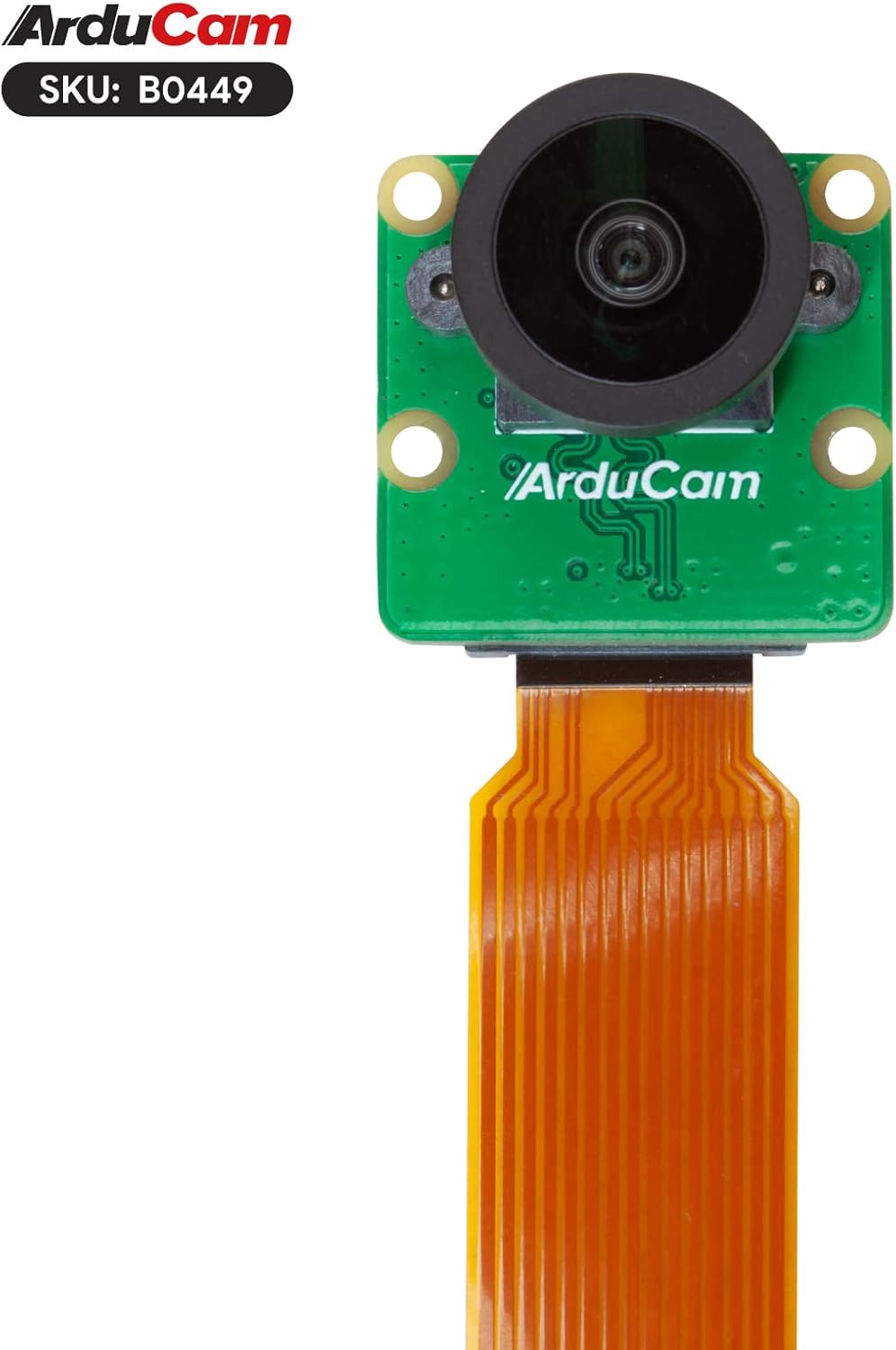

| Camera Board Size | 25*24mm(Hole Pitch: 21*12.5mm) |
Package Including

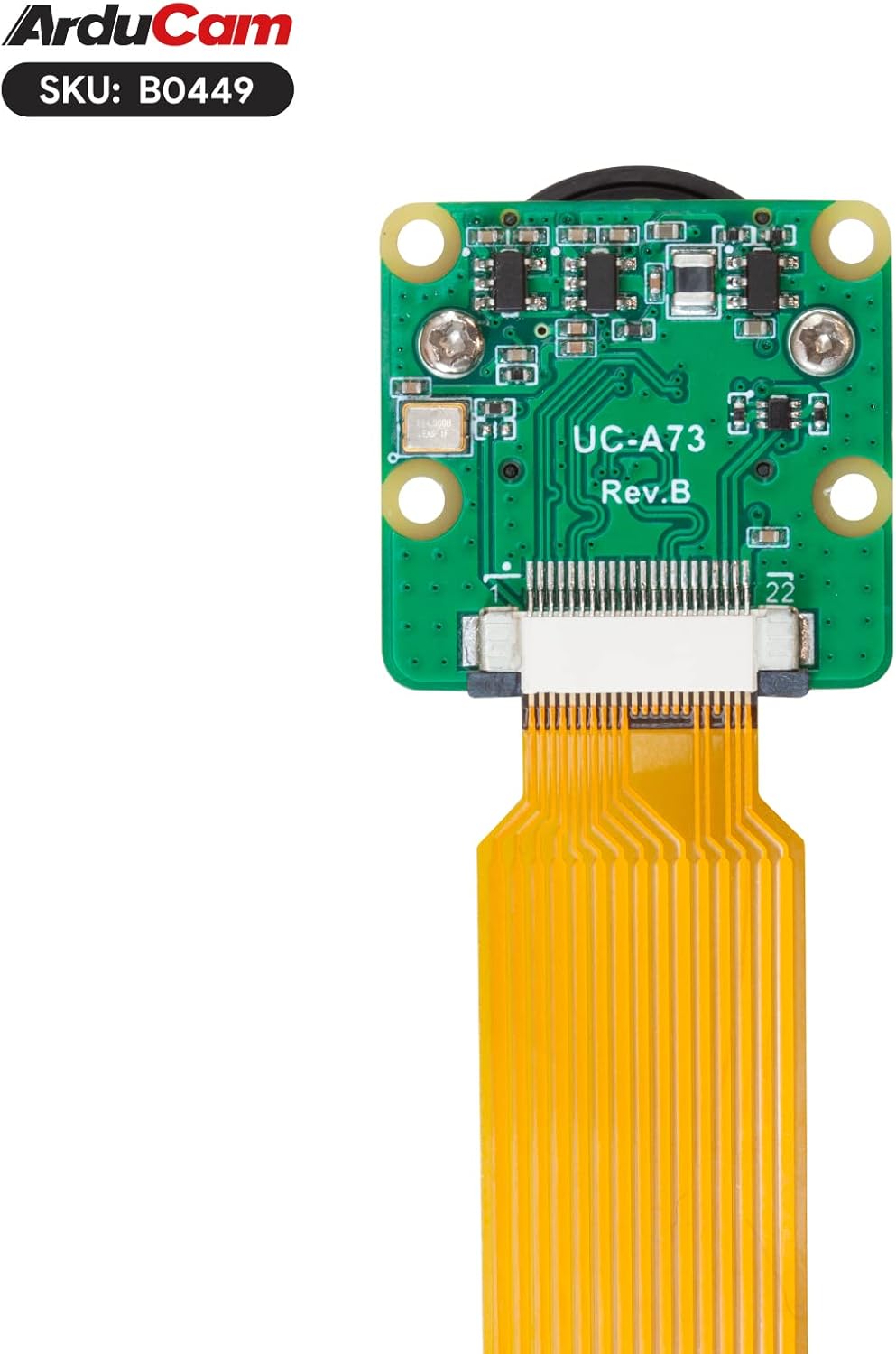

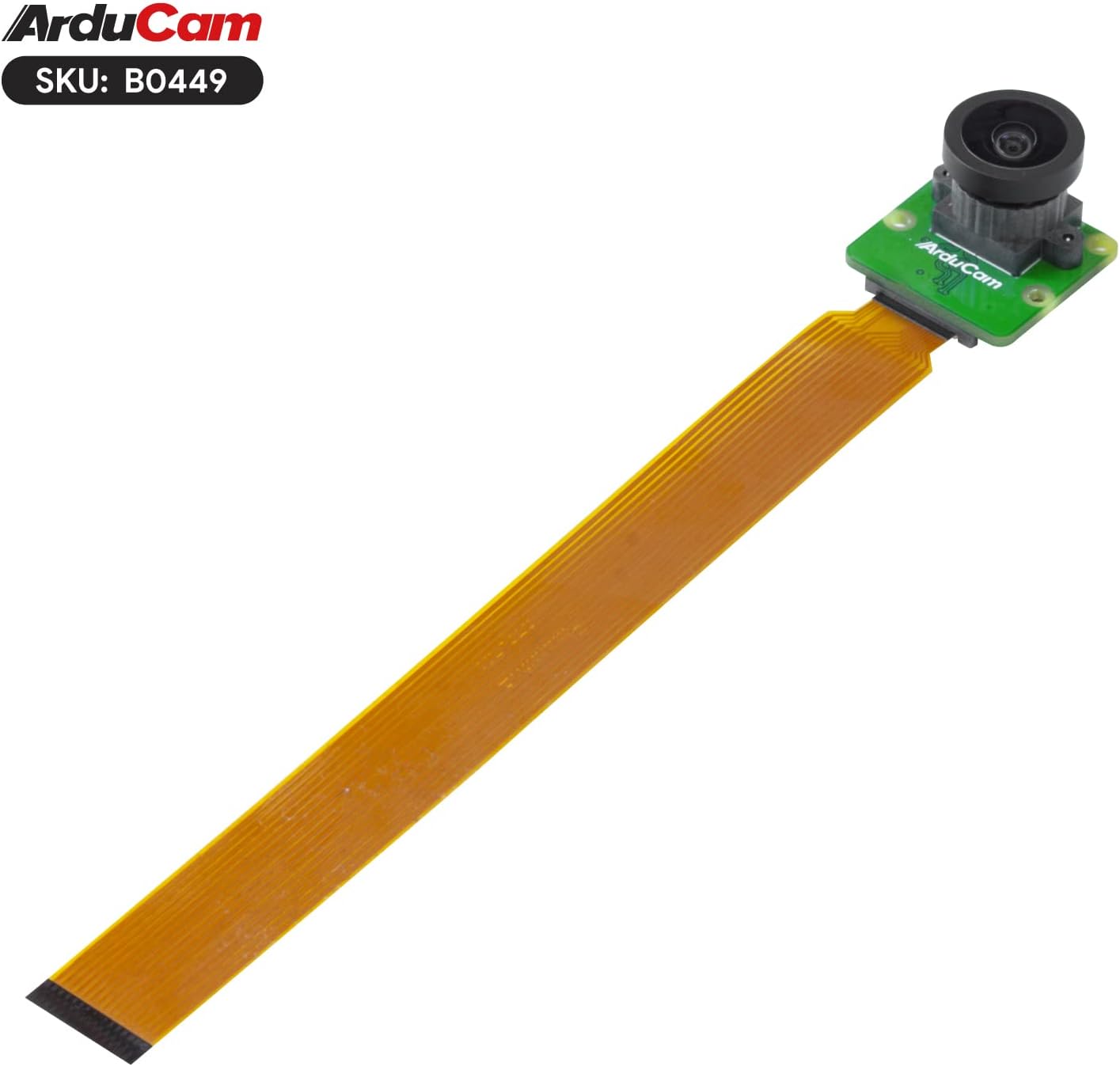

- 1 x IMX519 M12 Camera Module with 15-22pin FPC Cable
- 1 x Quick Start Guide

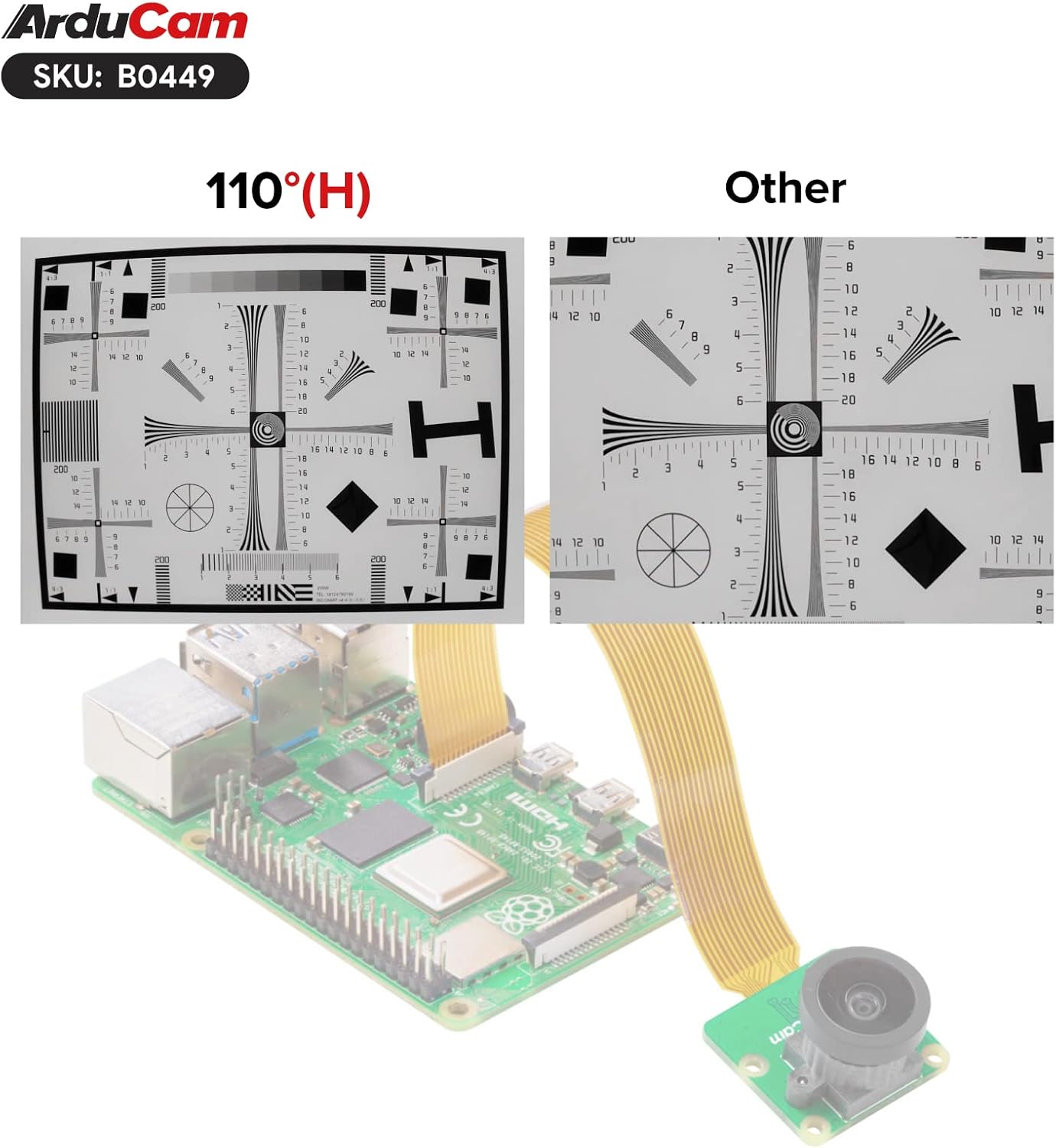

FOV=110°(H)
Resolution: 16MP
Lens Mount: M12
Notes
- The package contains small contents. Please keep it away from children to avoid accidental ingestion.
- After receiving the package, please confirm that the contents match the description.
- No Raspberry Pi board is included in the package.
Specifications & Details
| SKU | BMB0C53BBMLG |
|---|
