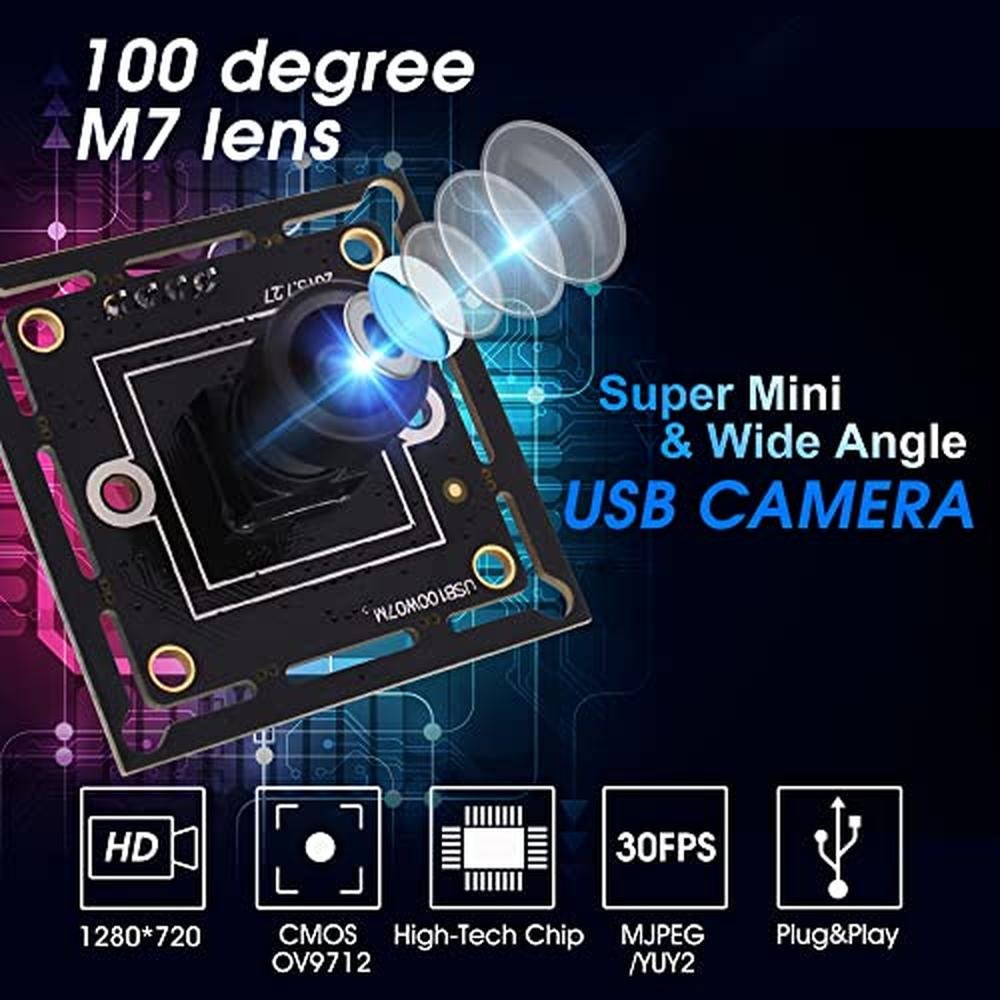

ELP USB Camera Module Super Mini 720p Wide Angle with 100degree M7 Lens Megapixel HD OV9712 Embedded Webcam Board for Computer USB2.0 UVC Video PC Opencv Camera Module,with 3.3ft/1m Cable for Laptop

₹ 6,499  ₹ 9,738

(-33%)

Save 33%
Incl. taxes | Free shipping

Brand: ELP

In stock

No customs fees, savings guaranteed

Estimated Delivery: Jan 19th - Jan 24th
Key Points
    • Max 1280X720@30fps HD 720P high resolution,high pixel technology for sharp image and accurate color reproduction.
    • 100 degree M7 lens usb webcam for wide angle video image,FOV(H) 93degree, FOV(D)98degree. High quality lens,true and undistorted color image.
    • USB2.0 high speed mini size 32x32/26x26mm for PC camera interface,super small outline and thin profile for embedded applications.
    • CMOS OV9712 sensor for high quality image and low power consumption ideal for portable equipment.Free driver,easily used, plug and play.
Warranty / Shipping / Returns
  • Free shipping on all orders
  • No additional customs duties will be charged.
  • 7-day return policy applies to all products (T&C apply).
  • Tracking details will be emailed, along with customer support assistance.

What Our Customers Say About Blumaple

Recommended

It’s my new go-to for online shopping!

Srikanth Raj
Interesting

To sum up, if any imported gadgets are of interest to you, then Blumaple is a dependable place to shop

Suraj ES
 Genuinely Impressive

They took care of the duties, taxes, and shipping formalities.

Shahid M Dar
Comfortable

What stood out most was their excellent customer support

santhosh chandra
Promptly Delivered

Delivery of the ordered product was fulfilled as assured, even though it is an internationally shipped product.

Rajkumar Palanisamy
Helpful

Their service is exceptional and they are very professional in Business.

Dr sathish Sangisetty
Good Work

Very good site for shopping abroad.

Zorawar Manchanda
Great

Wonderful experience shopping with Blumaple. Will definitely come back again!

Praneeth Raj
Trusted

Trusted e-commerce website for imported electronics

Prakash 18_589

Product Description

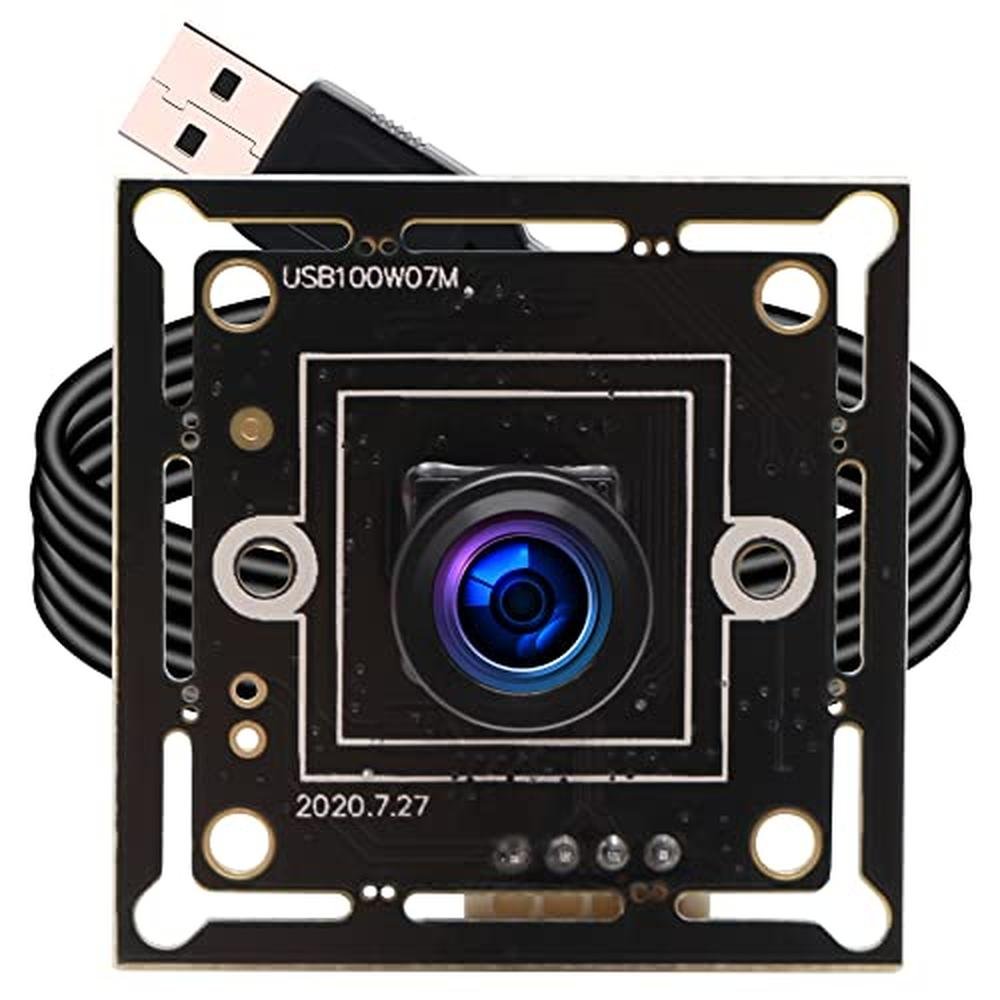

ELP-USB100W07M-MHV100 is a 720P USB2.0 OmniVision OV9712 Color CMOS Sensor USB Camera Mini Size (32*32/26*26mm) with M7 100degree wide angle Lens Specification: Sensor OV9712 Lens Size 1/4 inch Pixel Size 3.0um X 3.0um image area 3888m x 2430m Max. Resolution 1280(H)X720(V) Compression format MJPEG / YUV2(YUYV) Resolution & frame MJPEG:320X240@ 30fps, 352X288@ 30fps640X360@60fps,640X480@ 30fps800X600@ 30fps,1280X720@ 30fps YUV: 320X240@ 30fps,352X288@ 30fps640X360@30fps,640X480@ 30fps800X600@ 15fps,1280X720@ 5fps S/N Ratio 40dB Dynamic Range 69dB Sensitivity 3.7V/lux-sec@550nm Mini illumination 0. 1lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB2.0 High Speed Free Drive Protocol USB Video Class(UVC) Support OTG Protocol USB2.0 OTG AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure Lens Parameter Standard M7 LENS FOV(D)138 (H)100 Degree LED board power connector Support 2P-2.0mm socket Power supply USB BUS POWER 4P-2.0mm socket Power supply DC5V Operating Voltage 120mA~180mA Working current -10~70C Working temperature -20~85C Board size /Weight 32X32mm(Compatible 26X26mm)/ about 30g Cable Standard 1M Operating system request Win7 Win8,Mac os, Linux 2.6 or above,Android 4.0 or above

Specifications & Details

SKU BMB01DRJXAWA
Brand Name ELP
Item Weight 0.030 kgs
Product Dimensions 1.49 x 1.49 x 0.91 inches
Item model number OP-33843
Is Discontinued By Manufacturer No
Color Name Black
Special Features HD 720P high definition, Lightweight, Super Mini 32*32mm/26*26mm, camera with UVC for computer laptop pc, mini size, wide angle 100degree M7 lens
